15 1/2in Tricone Rock Drill Bits 394mm 80 Cutter Soft Formations
| Place of Origin | China |
|---|---|
| Brand Name | XINGTONG DRILL BIT |
| Certification | API 、ISO 9001 |
| Model Number | 15 1/2″ 394mm XHR 6163MK |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,Western Union,MoneyGram,T/T |
| Supply Ability | Stable supply and support for bulk customization |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GII | IADC Code | S324 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 80 |
| Face | 21+59 | Gauge | 5 |
| Updrill | 6 | Nozzle Type & Count | L*9 |
| Junk Slot Area (sq Mm) | 41800 | Normalized Face Volume | 70.43% |
| API Connection | 6-5/8 REG.pin | Make-Up TQ | 50-59KN.m |
| Gauge Length | 102mm | Make-Up Length | 593mm |
| Approximate Shipping Weight | 362kg | ||
| Highlight | 15 1/2in Tricone Rock Drill Bits,Tricone Rock Drill Bits 394mm,80 Cutter pdc core drill bits |
||
Product Description

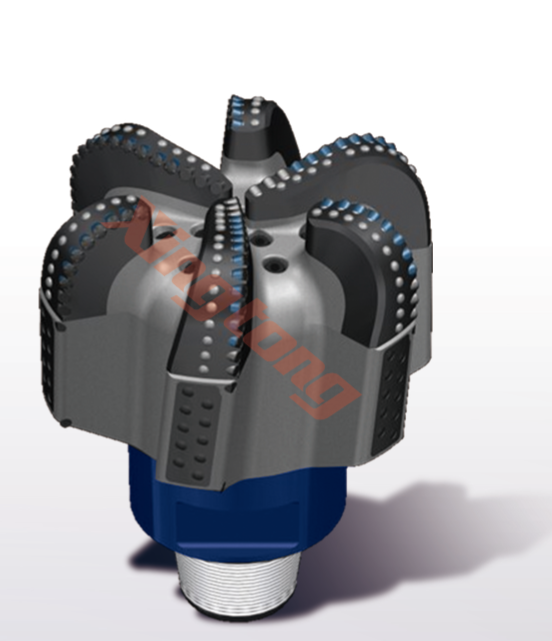

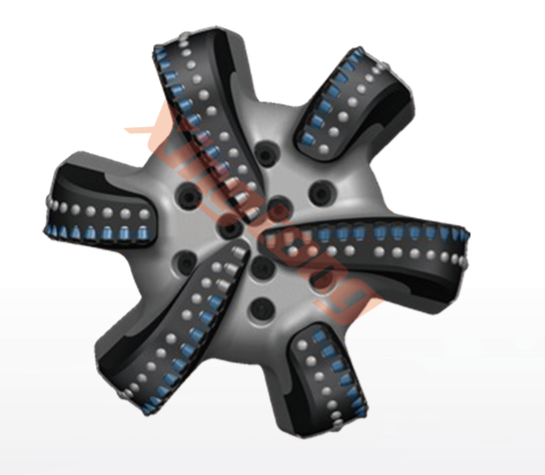

PDC Drill Bits 15 1/2″ 394mm XHR 6163MK for High-Speed Drilling in Soft Formations
XHR Series Features
lSuitable for improving ROP in soft formation.
lOptimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing.
loptimize nozzles and junk slot design by using CFD to speed up cutting moving.
lThe high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP.
Product Features
l0.8mm Relieved Gauge
lUp-Drill Cutters on Gauge Pads
lDual row cutting structrue
l4D shaped cutter
Note
lThe recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
lThe technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
lThe pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
