8 1/2in 216mm Oil Drill Bit Hard Strata Directional Diamond PDC Bit

Place of Origin	China
Brand Name	XINGTONG
Certification	API 、ISO 9001
Model Number	8 1/2″ 216mm XHY
Minimum Order Quantity	1 Piece (MOQ)
Price	Negotiable
Packaging Details	Standard Exported Package
Delivery Time	15-45 Days
Payment Terms	,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability	Stable supply and support for bulk customization.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Cutter Type	GI	IADC Code	S537
Body Type	STEEL	Cone / Palm / Tooth Material	15MnNi4Mo/20CrNiMo
Cutting Structure	Double Cone With 4 Blades	Bearing	Wear-resistant Alloys
PDC Main Teeth	1613	Nozzle Type & Count	L*4
Junk Slot Area (sq Mm)	9238	Normalized Face Volume	48.41%
API Connection	4-1/2 REG.pin	Make-Up TQ	16-24KN.m
Gauge Length	140mm	Make-Up Length	362mm
Approximate Shipping Weight	78kg
Highlight	8 1/2in Oil Drill Bit , 216mm Oil Drill Bit , Directional Diamond PDC Bit oem

Leave a Message

Product Description

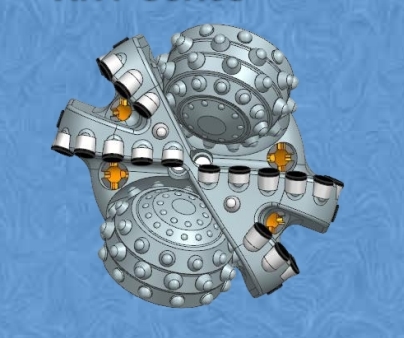

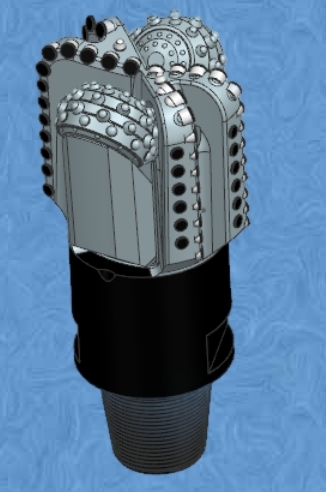

Made in China 8-1/2″ (216mm) XHY Diamond PDC Bit for Hard Strata Directional Drilling and Hard Strata Speed-Up

XHY Series Features

Suitable for improving directional drilling efficiency and overall drilling efficiency in hard formation.
Using double cone and four blades design, and selecting premium cone assembly make the bit Krev at the top of the industry.
The optimized under exposure of cone and PDC cutter improve the steer ability and overall drilling efficiency.
PDC reinforced arm make the bit more durable in conglomerate or hard abrasive sandstone.

Product Features

Note

The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
