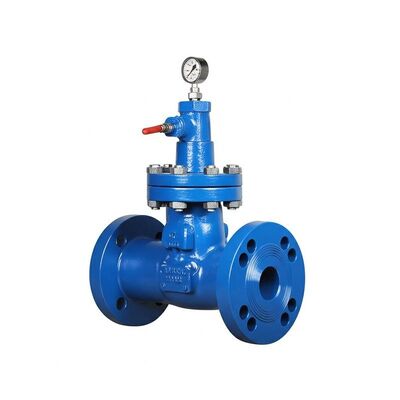

Alloy Steel High Pressure Safety Valve with 42Mpa (6000psi) Rating and Automatic Opening and Closing for Oilfield Manifold
Alloy Steel High Pressure Safety Valve with 42Mpa (6000psi) Rating and Automatic Opening and Closing for Oilfield Manifold
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
Safety Relief Valve
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
High Pressure Safety Valve for Oilfield Manifold Cast Steel Xing tong offers a wide range of relief valve designs with various end connections, pressure ratings, and configurations needed to protect you and your equipment in the high pressure well servicing industry. Safety valve features simple ...
Product Custom Attributes
Highlight
Cast Steel Cast Steel manifold oilfield
,manifold oilfield Leakproof
,Heat TreatmentHigh Pressure Safety Valve
Application:
Fracturing, Cementing, Acidizing, Testing Lines
Treatment Process:
Metal Melting And Heat Treatment
Struture:
Integrated Struture Of Metal Frame
Function:
Control Fluids Flowing In One Way
Specification:
Alloy Steel
Manufacturing Process:
Metal Melting And Heat Treatment
Material:
Alloy
Steel:
Premium Alloy Steel
Product Description
Detailed Specifications & Features

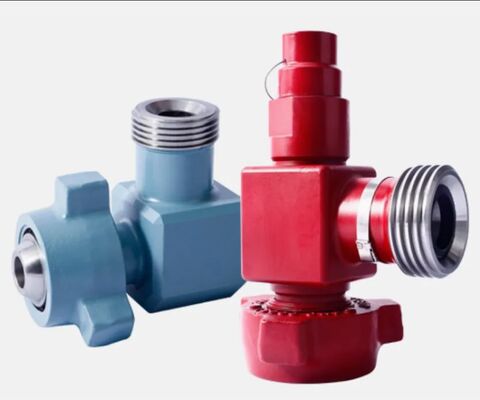

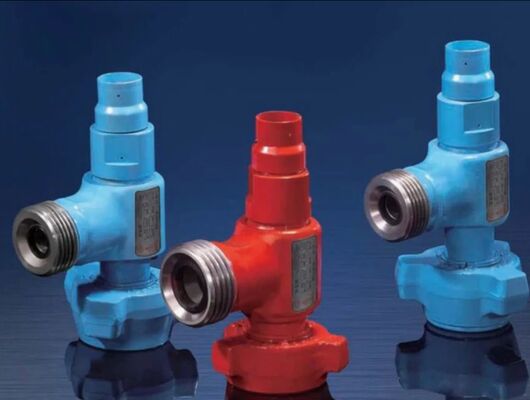

High Pressure Safety Valve for Oilfield Manifold Cast Steel
Xing tong offers a wide range of relief valve designs with various end connections, pressure ratings, and configurations needed to protect you and your equipment in the high pressure well servicing industry.

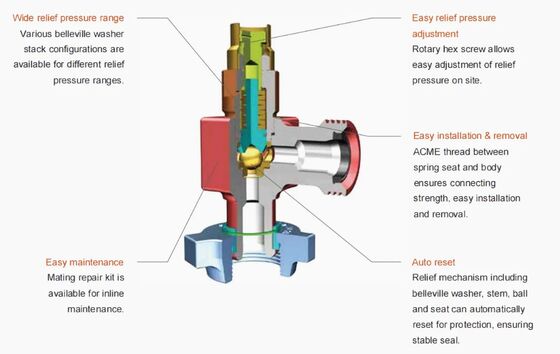

- Safety valve features simple structure and small size
- No leakage under normal circumstances

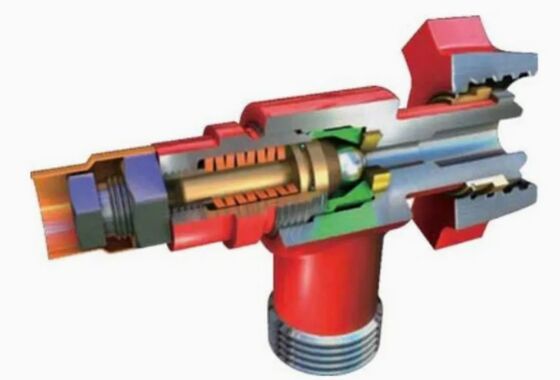

- Achieves automatic valve opening and closing by internal belleville spring
- Protects devices from damage due to overpressure on remote console
- No quick-wear parts requiring regular replacement; pressure regulating is accurate and stepless
To ensure safety, the drilling pump is equipped with a safety valve in the outlet, which controls the ultimate pressure of the pump within the admitted scope. The high-pressure safety valve is forged by high-quality structural alloy steel. As a protection device and human safety device, it is generally installed on cementing devices, fracturing pumps, high-pressure operation piping, pressure vessels and devices under high pressure and high flow capacity. It controls the elastic force of the valve seat by adjusting the nut on the top. Once the pumping pressure or piping pressure exceeds the pre-established pressure value, the safety valve opens automatically to release the pressure. When the pressure value reaches the normal value, the valve rod recovers position by spring and closes the valve.
Technical Specifications
| Name | Cold Working Pressure | Connection Type | Buckle Model |
|---|---|---|---|
| Safety Valve | 42Mpa (6000psi) | Hammer Union | M*M |
| 70Mpa (10000psi) | Hammer Union | M*F | |
| 105Mpa (15000psi) | Hammer Union | F*F |
Frequently Asked Questions
Oilfield High-Pressure Manifold Cast Steel Pressure Relief Valve / Safety Valve, High Pressure Resistant, Suitable for Severe Working Conditions
Q1: Can I order samples of the cast steel pressure relief valve / safety valve?
Yes, we support sample orders for customers to test the product's pressure resistance, sealing effect, and compatibility with manifolds. Mixed-specification samples are also available.
Q2: What is the production and delivery lead time for the products?
The sample preparation cycle is 7-10 days; the bulk order cycle depends on the specifications, pressure rating, and quantity, and is generally 15-20 working days.
Q3: Is there a minimum order quantity (MOQ) limit for orders?
The MOQ requirement is flexible. One sample can be ordered, and bulk orders can be adjusted through negotiation according to customer needs.
Q4: How are the goods shipped and what is the delivery time?
Domestic orders: Small quantities are shipped via logistics companies such as SF Express and Deppon, with delivery within 3-5 days; large quantities can be arranged for dedicated line land transportation, and the delivery time is adjusted according to the destination.
International orders: Shipped via international couriers such as DHL and UPS or by sea. The courier delivery time is 5-10 days, and the sea freight delivery time depends on the port.
International orders: Shipped via international couriers such as DHL and UPS or by sea. The courier delivery time is 5-10 days, and the sea freight delivery time depends on the port.
