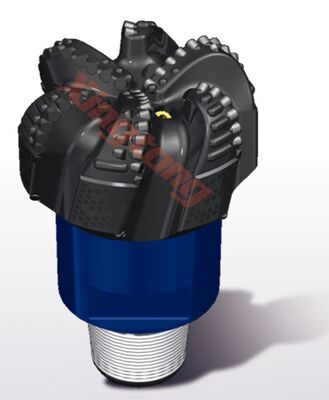

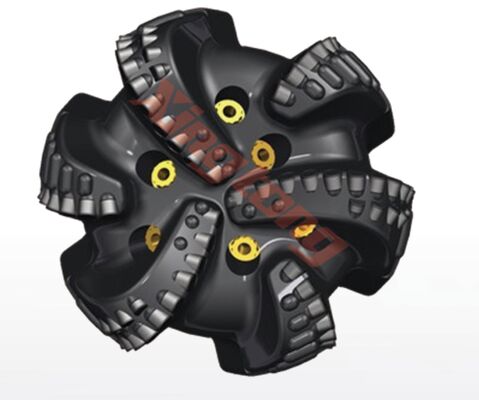

12 1/4inch 311mm Steel Body PDC Drill Bit for Ultra-Hard Strata Oil Rig Diamond Drill Bit

  • 12 1/4inch 311mm Steel Body PDC Drill Bit for Ultra-Hard Strata Oil Rig Diamond Drill Bit
  • 12 1/4inch 311mm Steel Body PDC Drill Bit for Ultra-Hard Strata Oil Rig Diamond Drill Bit
  • 12 1/4inch 311mm Steel Body PDC Drill Bit for Ultra-Hard Strata Oil Rig Diamond Drill Bit
Place of Origin CHINA
Brand Name XINGTONG
Certification API 、ISO 9001
Model Number 12 1/4″ 311mm XH 6164KM
Minimum Order Quantity 1 Piece（MOQ）
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization.
Product Details
Cutter Type GI IADC Code S323
Body Type STEEL Total Cutter Count 73
Face 12+43 Gauge 12
Up Drill 6 Nozzle Type & Count L*6
Junk Slot Area (sq Mm) 13464 Normalized Face Volume 46.8%
API Connection 6-5/8REG.pin Make-Up TQ 50-59KN.m
Gauge Length 76mm Make-Up Length 532mm
Approximate Shipping Weight 198kg
Highlight

12 1/4inch PDC Drill Bit

,

311mm PDC Drill Bit

,

steel diamond drill bits for oil rigs
Leave a Message
Product Description
12 1/4inch 311mm PDC Drill Bit Steel Diamond Drill Bits For Oil Rigs

12 1/4″ 311mm XH 6164KM PDC Drill Bits with Rigid Body Suitable for Oil Drilling in Ultra-Hard Strata

XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC cutters on shoulder to improve wear and impact resistance
  • Special backup cutter layout to improve bit durability while maintaining aggression
Product Features
  • Drop In Cutters on Gauge Pads
  • Impact arrestors
  • Stepped Gauge
  • Passive element
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
Important Notes
  • Recommended top-buckle torque is set according to joint inner and outer diameter with reference to API7G
  • Technical performance fully implemented according to terms agreed between Xingtong and customer
  • Pictures are for reference only - contact Skycom engineers for detailed technical parameters
