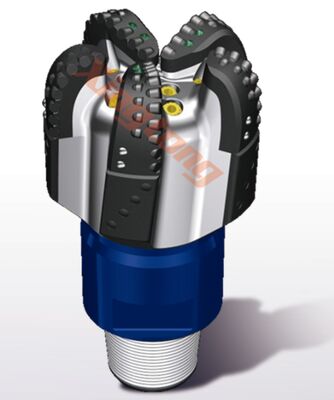

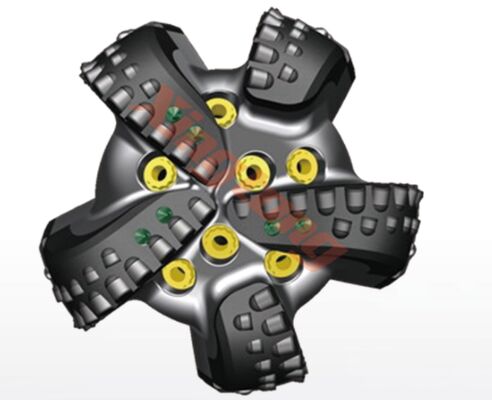

11 5/8inch 295mm PDC Rock Bit for High-Speed Drilling in Soft Formation with Steel Body
11 5/8inch 295mm PDC Rock Bit for High-Speed Drilling in Soft Formation with Steel Body
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
11 5/8″ 295mm XHR 5164
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
11 5/8inch 295mm PDC Rock Bit PDC Drill For Soft Formation Product Overview PDC Drill Bits 11 5/8″ 295mm XHR 5164 for High-Speed Drilling in Soft Formation XHR Series Features Suitable for improving ROP in soft formation Optimize shaped cutter layout to improve drilling efficiency and enhance ...
Product Custom Attributes
Highlight
11 5/8inch PDC Rock Bit
,295mm pdc core bit
,Soft Formation pdc drill
Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
69
Face:
23+36
Gauge:
10
Nozzle Type & Count:
L*7
Junk Slot Area (sq Mm):
20354
Normalized Face Volume:
47.54%
API Connection:
6-5/8REG.pin
Make-Up TQ:
50-59KN.m
Gauge Length:
102mm
Make-Up Length:
613mm
Approximate Shipping Weight:
169kg
Product Description
Detailed Specifications & Features
11 5/8inch 295mm PDC Rock Bit PDC Drill For Soft Formation
Product Overview
PDC Drill Bits 11 5/8″ 295mm XHR 5164 for High-Speed Drilling in Soft Formation
XHR Series Features
- Suitable for improving ROP in soft formation
- Optimize shaped cutter layout to improve drilling efficiency and enhance cuttings removal
- Optimize nozzles and junk slot design using CFD to accelerate cutting movement
- High strength steel body with thinner blades prevents back tail contact with formation during high ROP
Product Features
- 0.8mm Relieved Gauge
- 1.6mm Stepped Gauge
- Dual row cutting structure
- Efficient Backup Cutter Layout
- Drop In Cutters on Gauge Pads
Important Notes
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters.
