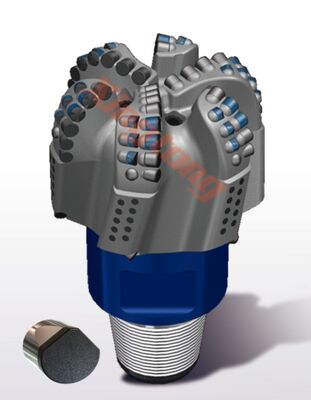

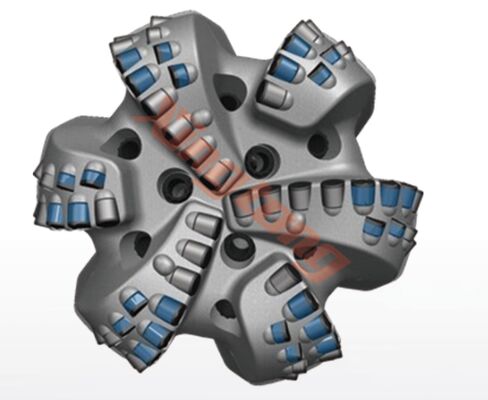

8 3/4″ 222mm PDC Drill Bit for Super Hard Formations with 24KNm Make-Up TQ Oil Drilling Bit

8 3/4″ 222mm PDC Drill Bit for Super Hard Formations with 24KNm Make-Up TQ Oil Drilling Bit
Basic Properties
Place of Origin: CHINA
Brand Name: XINGTONG
Certification: API 、ISO 9001
Model Number: 8 3/4″ 222mm XH 5164BA
Trading Properties
Minimum Order Quantity: 1 Piece（MOQ）
Price: Negotiable
Payment Terms: L/C,D/P,T/T,
Supply Ability: Stable supply and support for bulk customization.
Tags:

rock drill bit

pdc core bit

pdc diamond bit
Product Summary
8 3/4″ PDC Drill Bit - 222mm Oil Super Hard Formations PDC Core Bit 24KNm Product Overview PDC Drill Bits 8 3/4″ 222mm XH 5164BA designed for oil drilling in super hard formations, delivering exceptional performance and durability in challenging drilling conditions. XH Series Features Suitable for ...
Product Custom Attributes
Highlight

8 3/4″ PDC Drill Bit

,

PDC Drill Bit 222mm

,

pdc core bit 24KNm

Cutter Type:
GI
IADC Code:
S424
Body Type:
STEEL
Total Cutter Count:
68
Face:
55
Gauge:
7
Updrill:
6
Nozzle Type & Count:
L*6
Junk Slot Area (sq Mm):
10845
Normalized Face Volume:
45.81%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
76mm
Make-Up Length:
444mm
Approximate Shipping Weight:
81kg
Product Description
Detailed Specifications & Features
8 3/4″ PDC Drill Bit - 222mm Oil Super Hard Formations PDC Core Bit 24KNm
Product Overview

PDC Drill Bits 8 3/4″ 222mm XH 5164BA designed for oil drilling in super hard formations, delivering exceptional performance and durability in challenging drilling conditions.

XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile for even load distribution to reduce ring out risk
  • High quality PDC cutters on shoulder for improved wear and impact resistance
  • Special backup cutter layout enhances bit durability while maintaining aggression
Technical Specifications
  • 1.6mm Stepped Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter design
Important Notes
  • Recommended top-buckle torque is set according to joint inner and outer diameter with reference to API7G
  • Technical performance fully implemented according to terms agreed between Xingtong and customer
  • Images are for reference only - contact Skycom engineers for detailed technical parameters
