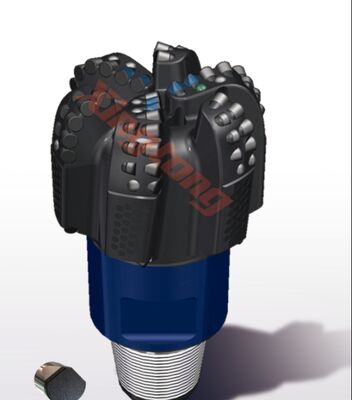

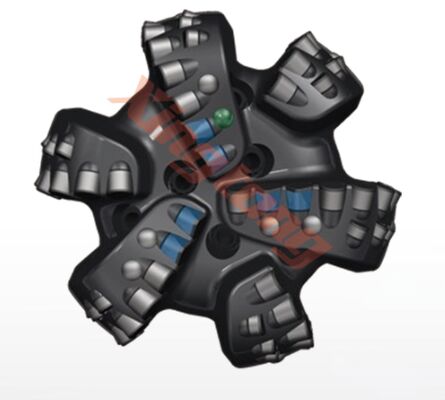

64 Cutter PDC Drill Bit 8 1/2inch 216mm with Updrill 6 for Oil Drilling in Super Hard Formations

64 Cutter PDC Drill Bit 8 1/2inch 216mm with Updrill 6 for Oil Drilling in Super Hard Formations
Basic Properties
Place of Origin: CHINA
Brand Name: XINGTONG
Certification: API 、ISO 9001
Model Number: 8 1/2″ 216mm XH 6164BA
Trading Properties
Minimum Order Quantity: 1 Piece（MOQ）
Price: Negotiable
Payment Terms: L/C,D/P,T/T
Supply Ability: Stable supply and support for bulk customization.
Tags:

rock drill bit

pdc core bit

pdc diamond bit
Product Summary
8-1/2" (216mm) XH 6164BA PDC drill bit for oil drilling in super-hard formations. Optimized profile, dual-row cutting structure, 4D shaped cutters and reinforced gauge protection provide high wear and impact resistance, stable drilling and extended bit life.
Product Custom Attributes
Highlight

64 Cutter PDC Drill Bit

,

PDC Drill Bit 8 1/2inch

,

6 Updrill oil drill bits types

Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
64
Face:
46
Gauge:
12
Updrill:
6
Nozzle Type & Count:
L*5
Junk Slot Area (sq Mm):
8606
Normalized Face Volume:
51.53%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
76mm
Make-Up Length:
461mm
Approximate Shipping Weight:
78kg
Product Description
Detailed Specifications & Features
64 Cutter PDC Drill Bit 8 1/2inch 216mm 6 Updrill Oil Drill Bits Types
PDC Drill Bits 8 1/2″ 216mm XH 6164BA for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • The optimized profile makes the load distribution more even to reduce the risk of ring out
  • High quality PDC were put on shoulder to improve wear and impact resistance
  • Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter
Important Notes
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
