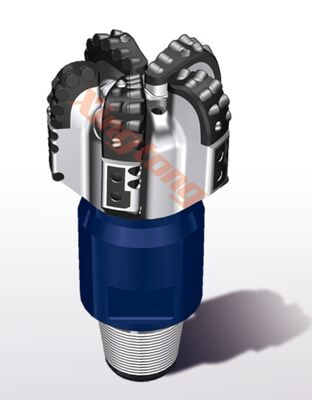

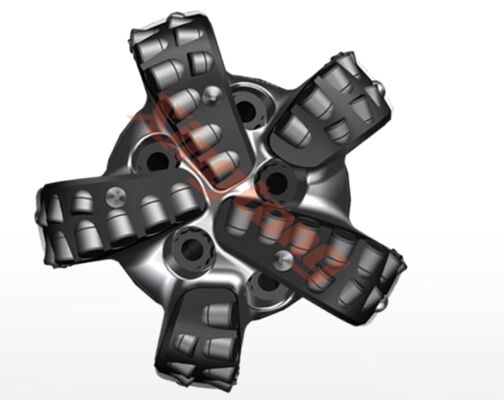

53 Cutter Rigid Body PDC Drill Bit for High-Speed Drilling in Soft Formations

53 Cutter Rigid Body PDC Drill Bit for High-Speed Drilling in Soft Formations
Basic Properties
Place of Origin: CHINA
Brand Name: XINGTONG
Certification: API 、ISO 9001
Model Number: 8 1/2″ 216mm XHR 5164B
Trading Properties
Minimum Order Quantity: 1 Piece（MOQ）
Price: Negotiable
Payment Terms: L/C,D/P,T/T,
Supply Ability: Stable supply and support for bulk customization.
Tags:

rock drill bit

pdc core bit

pdc diamond bit
Product Summary
53 Cutter PDC Drill Bit Rigid Body HDD PDC Bit For Drilling Soft Formations 8 1/2″ 216mm XHR 5164B PDC Drill Bits with Rigid Body: Ideal for High-Speed Drilling in Soft Formations XHR Series Features Suitable for improving ROP in soft formation Optimize shaped cutter layout to improve drilling ...
Product Custom Attributes
Highlight

53 Cutter PDC Drill Bit

,

PDC Drill Bit Rigid Body

,

OEM hdd pdc bit 53 Cutter

Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
53
Face:
36
Gauge:
12
Updrill:
5
Nozzle Type & Count:
L*5
Junk Slot Area (sq Mm):
11290
Normalized Face Volume:
50.42%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
89mm
Make-Up Length:
450mm
Approximate Shipping Weight:
61kg
Product Description
Detailed Specifications & Features
53 Cutter PDC Drill Bit Rigid Body HDD PDC Bit For Drilling Soft Formations
8 1/2″ 216mm XHR 5164B PDC Drill Bits with Rigid Body: Ideal for High-Speed Drilling in Soft Formations
XHR Series Features
  • Suitable for improving ROP in soft formation
  • Optimize shaped cutter layout to improve drilling efficiency and cuttings removal
  • Optimize nozzles and junk slot design using CFD to speed up cutting moving
  • High strength steel body makes the blade thinner to prevent back tail contact with formation during high ROP
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter
Important Notes
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
