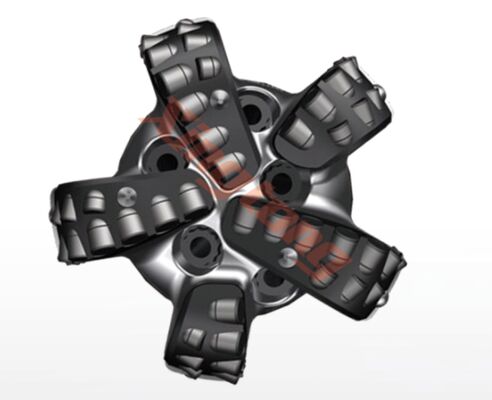

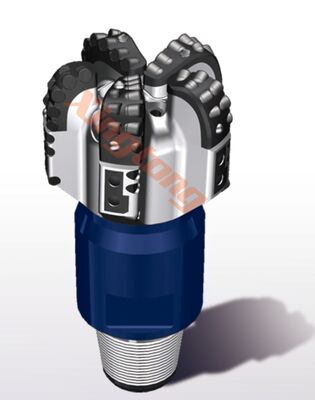

8 1/2″ 216mm PDC Drill Bit for High-Speed Drilling in Soft Formations with Steel Body
8 1/2″ 216mm PDC Drill Bit for High-Speed Drilling in Soft Formations with Steel Body
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
8 1/2″ 216mm XHR 5164DB
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
8-1/2" (216mm) XHR 5164DB PDC drill bit designed for high-speed drilling in soft formations. Optimized cutter layout, CFD-designed hydraulics, dual-row cutting structure and reinforced gauge protection improve ROP, cuttings removal and drilling stability.
Product Custom Attributes
Highlight
216mm pdc rock bit
,216mm pdc drill bit
,soft formations pdc rock bit
Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
61
Face:
41
Gauge:
15
Updrill:
5
Nozzle Type & Count:
L*5
Junk Slot Area (sq Mm):
12535.46
Normalized Face Volume:
55.17%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
64mm
Make-Up Length:
507mm
Approximate Shipping Weight:
78kg
Product Description
Detailed Specifications & Features
PDC Drill Bits 8 1/2″ 216mm XHR 5164DB
Suitable for High-Speed Drilling in Soft Formations
XHR Series Features
- Suitable for improving ROP in soft formation
- Optimize shaped cutter layout to improve drilling efficiency and cuttings removal
- Optimize nozzles and junk slot design using CFD to speed up cutting movement
- High strength steel body with thinner blades prevents back tail contact with formation during high ROP
Product Features
- 0.8mm Relieved Gauge
- Drop In Cutters on Gauge Pads
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- 4D shaped cutter
- Radius Hex TSP on Gauge Pads
Important Notes:
- Recommended top-buckle torque is set according to joint inner and outer diameter, with reference to API7G
- Technical performance fully implemented according to terms agreed between Xingtong and customer
- Pictures are for reference only - contact Skycom engineers for detailed technical parameters
