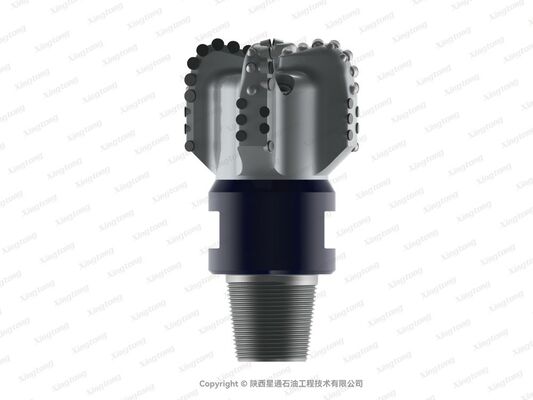

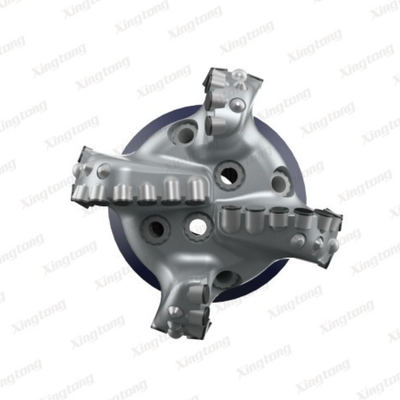

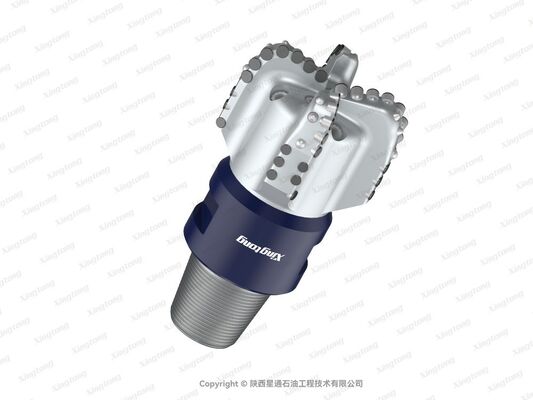

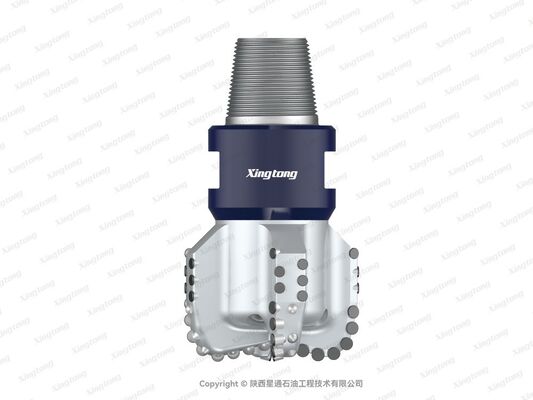

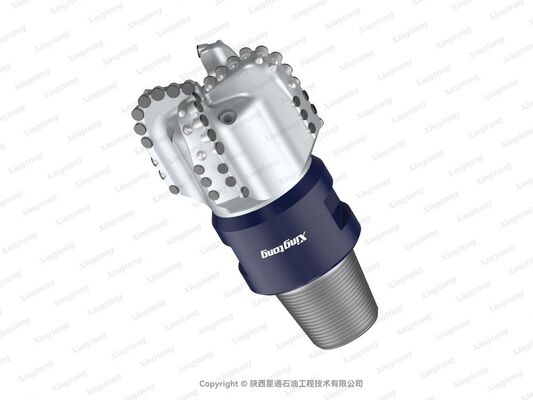

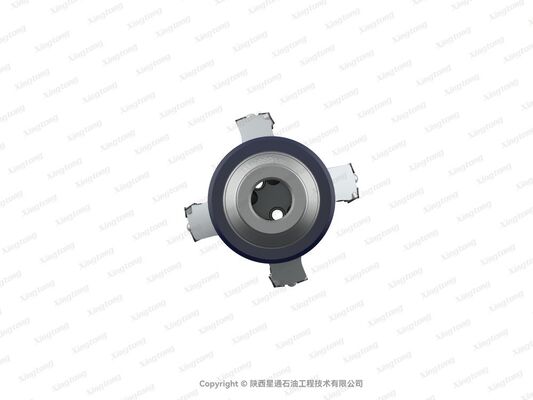

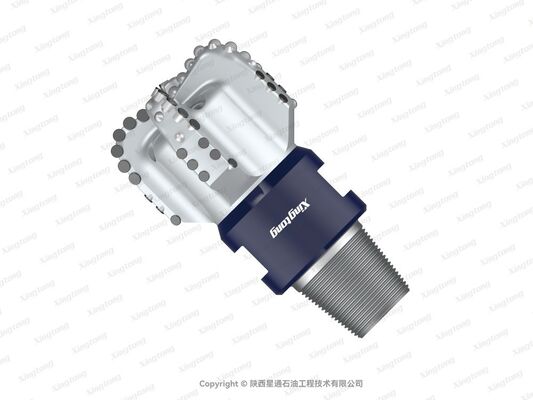

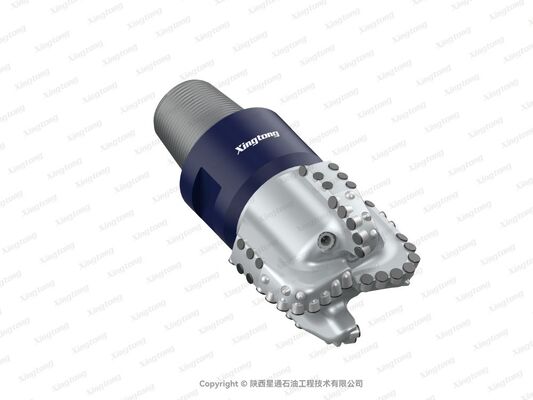

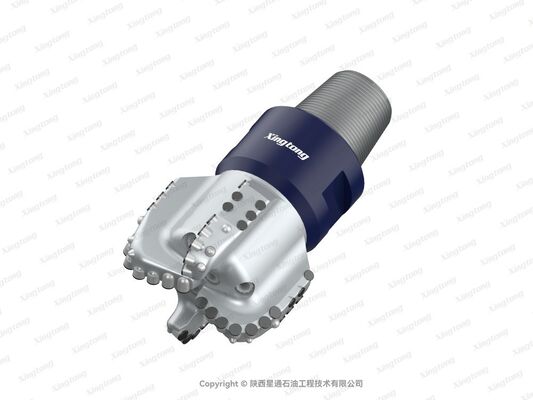

8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics

  • 8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics
  • 8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics
  • 8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics
  • 8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics
  • 8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics
  • 8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics
  • 8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics
  • 8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics
  • 8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics
  • 8 1/2 XHR S 4163 K(24057) size High-RPM PDC Drill Bit for Soft Formations in with Optimized Hydraulics
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 8 1/2 XHR S 4163 K(24057)
Document 8 1.2 XHR S 4163 K(24057).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S222
Body Type STEEL Face 23
Gauge 20 Carbide 12
Updrill 4 Nozzle Type & Count M*6
Chip Removal Groove Area Ratio 70.4% API Connection 4-1/2REG
Make-Up TQ 17.0-26.4kN.m Gauge Length 62mm
Make-Up Length 292mm Approximate Shipping Weight 37.5kg
Recommended Weight On Bit（Maximum Acceptable） 14-16T（133T） Total Flow Area 582mm^2
Highlight

PDC drill bit 8 1/2 XHR S

,

Xingtong PDC drill bit 4163 K

,

PDC drill bit with warranty
Leave a Message
Product Description
Xingtong Drill Bit 8 1/2 XHR S 4163 K(24057)
Product Positioning

The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP), this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, significantly accelerating drilling speed.

Technical Highlights
  • Specifically designed for high-speed drilling in soft formations
  • Hybrid matrix with optimized irregular cutting teeth geometry enhances rock-breaking efficiency while increasing cuttings transport velocity
  • CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed operations
  • High-strength steel body enables thinner cutter blade thickness, preventing interference at blade rear during high mechanical drilling rates
Applicable Operating Conditions

Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed for operations aiming to achieve the highest possible mechanical drilling rate.
