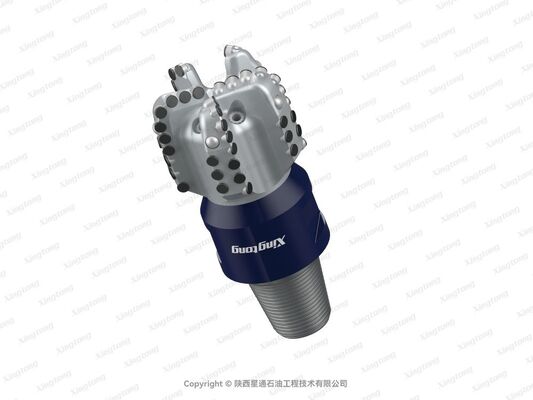

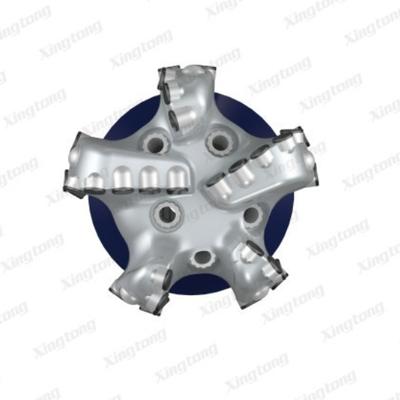

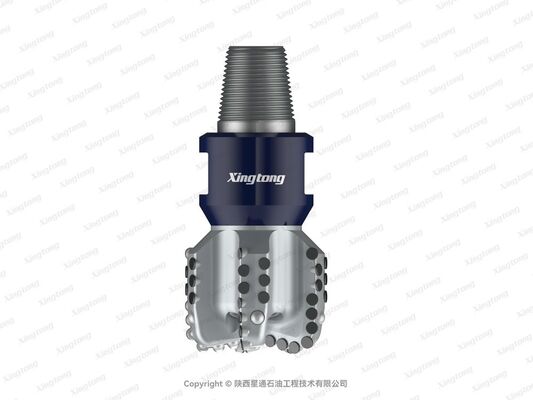

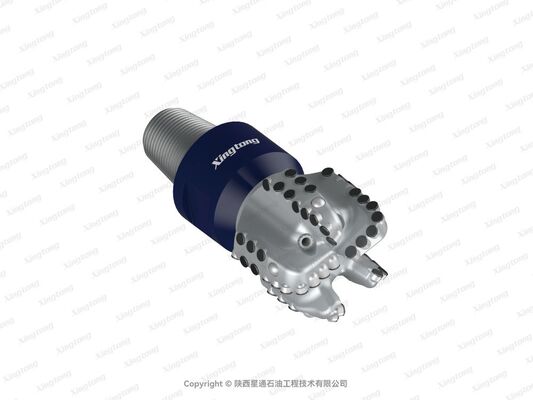

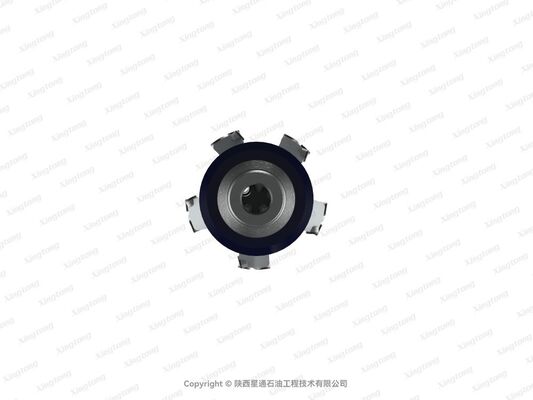

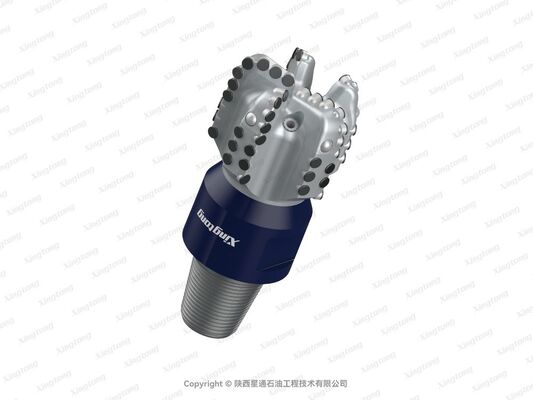

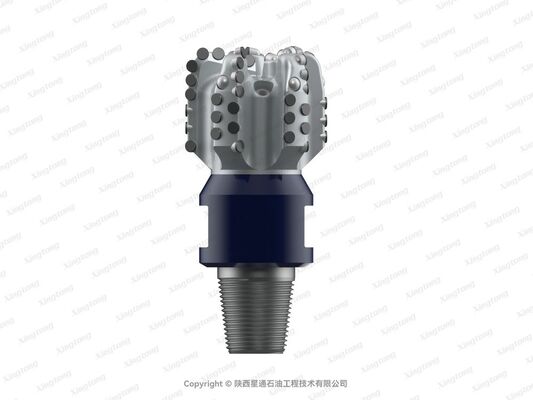

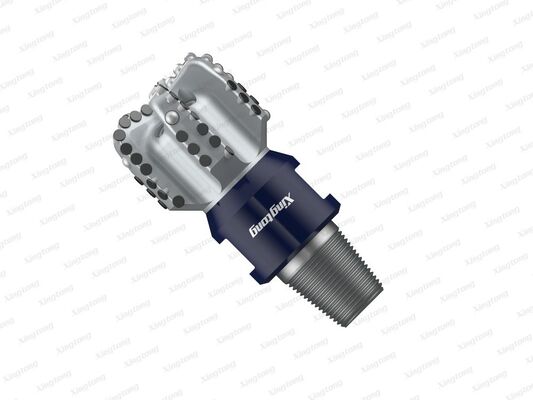

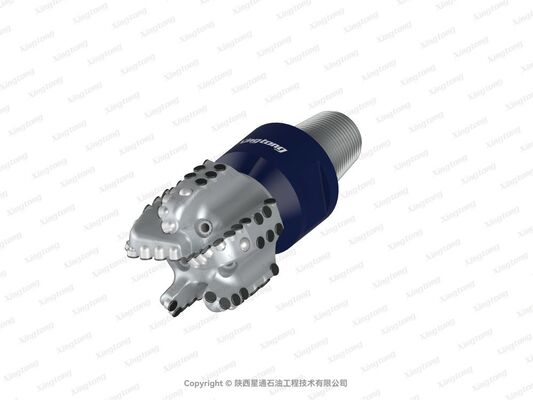

6 XHR S 5137 AK(24038) High-RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
6 XHR S 5137 AK(24038) High-RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
6 XHR S 5137 AK(24038)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 6 XHR S 5137 AK(24038) Product Positioning The XHR series is a high-RPM drill bit engineered specifically for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP), this drill bit utilizes advanced tooth geometry and hydraulic optimizati...
Product Custom Attributes
Highlight
PDC drill bit 6 XHR S 5137 AK
,Xingtong PDC drill bit with warranty
,durable PDC drill bit 24038
Cutter Grade:
GI
IADC Code:
S432
Body Type:
STEEL
Face:
27
Gauge:
25
Updrill:
5
Nozzle Type & Count:
M*5
Chip Removal Groove Area Ratio:
56.2%
API Connection:
3-1/2REG
Make-Up TQ:
7.1-11.5KN.m
Gauge Length:
72mm
Make-Up Length:
242mm
Approximate Shipping Weight:
20kg
Recommended Weight On Bit（Maximum Acceptable）:
10-12T （78T）
Total Flow Area:
289mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 6 XHR S 5137 AK(24038)
Product Positioning
The XHR series is a high-RPM drill bit engineered specifically for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP), this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, significantly accelerating drilling speed.
Technical Features
- Optimized for high-speed drilling in soft formations
- Hybrid matrix with irregularly shaped cutting teeth enhances rock-breaking efficiency and increases cuttings transport velocity
- CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed operations
- High-strength steel body enables thinner cutter blade thickness, preventing interference during high mechanical drilling rates
Recommended Applications
Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed for operations aiming to achieve the highest possible mechanical drilling rate.
