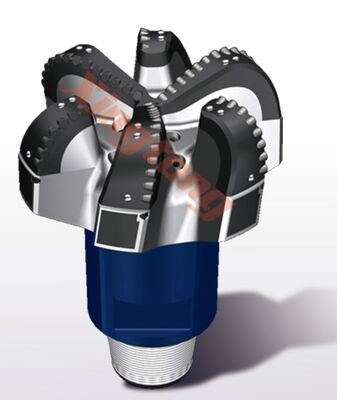

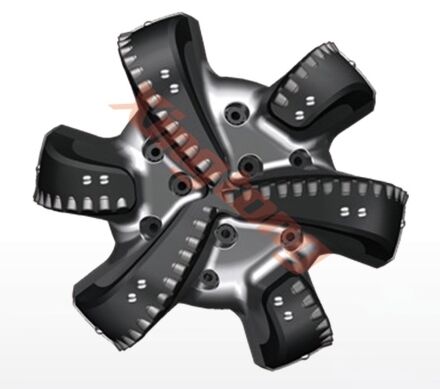

Steel Body Six-Blade PDC Drill Bits 17 1/2″ 444mm XD6163D for Oil Gas Well Directional Drilling
Steel Body Six-Blade PDC Drill Bits 17 1/2″ 444mm XD6163D for Oil Gas Well Directional Drilling
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
17 1/2″ 444mm XD 6163D
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
17-1/2" (444mm) six-blade steel-body PDC drill bit designed for directional oil & gas drilling. Shank-less design, depth-of-cut control, full gauge and hardfacing improve steerability, toolface control and drilling efficiency with RSS and bent motors.
Product Custom Attributes
Highlight
Six Blade Directional Drill Bits 17 1/2in
,Directional Drill Bits 444mm
,Oil Well hdd drill bit types
Cutter Type:
GII
IADC Code:
S123
Body Type:
STEEL Body
Total Cutter Count:
71
Face:
60
Gauge:
11
Nozzle Type&count:
L*9
Junk Slot Area (sq Mm):
51586
Normalized Face Volume:
77.0%
API Connection:
7-5/8 REG.pin
Make-Up TQ:
Make-Up TQ
Gauge Length:
79mm
Make-Up Length:
605mm
Approximate Shipping Weight:
455kg
Product Description
Detailed Specifications & Features
PDC Drill Bits Steel Body Six-Blade 17 1/2″ 444mm XD6163D for Oil Gas Well Drilling Tools
XD Series Features
- Suitable for improving the steerability and overall drilling efficiency for both RSS and bent motor
- Shank-less design reduces make-up length by 40% compared to conventional bits, significantly improving steerability
- Unique depth of cut control design provides excellent tool face control, even with higher than normal WOB conditions
- Drilling with bent motor: maximum DLS ≥30°/30m. Drilling with RSS: maximum DLS ≥15°/30m
Product Features
- Full Gauge
- Hard facing
Important Notes
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
- The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters
