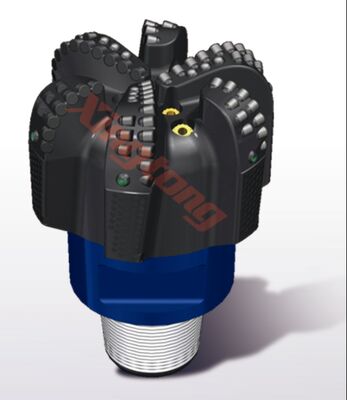

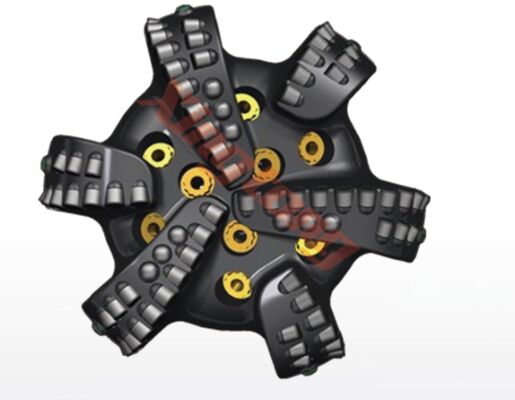

50-59KNm Make-Up TQ PDC Drill Bit 12 1/4″ 311mm for Super Hard Formations Rock Drill Bit
50-59KNm Make-Up TQ PDC Drill Bit 12 1/4″ 311mm for Super Hard Formations Rock Drill Bit
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
12 1/4″ 311mm XH 6134ML
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
50 - 59KNm PDC Drill Bits 12 1/4″ 311mm XH Rock Drill Bit Types PDC Drill Bits 12 1/4″ 311mm XH 6134ML for Oil Drilling in Super Hard Formations XH Series Features Suitable for increasing durability and footage Optimized profile makes load distribution more even to reduce the risk of ring out High ...
Product Custom Attributes
Highlight
50KNm oil bits
,59KNm rock bit
,311mm rock drill bit types
Cutter Type:
GI
IADC Code:
S323
Body Type:
STEEL
Total Cutter Count:
77
Face:
18+46
Gauge:
7
Up Drill:
6
Nozzle Type & Count:
L*9
Junk Slot Area (sq Mm):
22245
Normalized Face Volume:
55.8%
API Connection:
6-5/8REG.pin
Make-Up TQ:
50-59KN.m
Gauge Length:
102mm
Make-Up Length:
515mm
Approximate Shipping Weight:
194kg
Product Description
Detailed Specifications & Features
50 - 59KNm PDC Drill Bits 12 1/4″ 311mm XH Rock Drill Bit Types
PDC Drill Bits 12 1/4″ 311mm XH 6134ML for Oil Drilling in Super Hard Formations
XH Series Features
- Suitable for increasing durability and footage
- Optimized profile makes load distribution more even to reduce the risk of ring out
- High quality PDC on shoulder to improve wear and impact resistance
- Special backup cutter layout to improve bit durability while maintaining aggression
Product Features
0.8mm Relieved Gauge
Passive Element
Up-Drill Cutters on Gauge Pads
Drop In Cutters on Gauge Pads
Impact Arrestors
Important Notes
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
