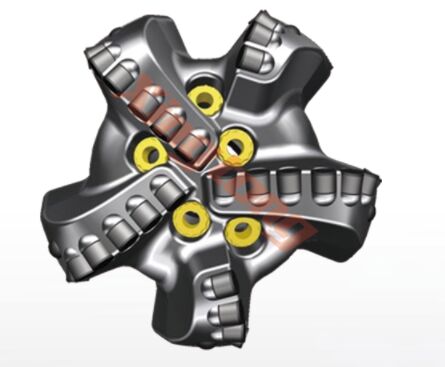

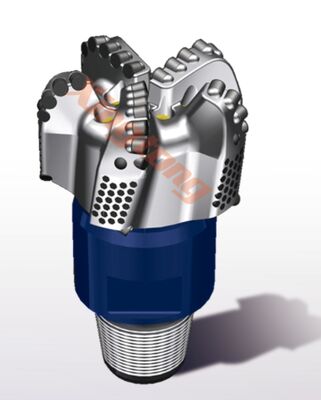

PDC Drill Bit 8 1/2 In 216mm Rigid Body For High Speed Drilling In Soft Formations

PDC Drill Bit 8 1/2 In 216mm Rigid Body For High Speed Drilling In Soft Formations
Basic Properties
Place of Origin: CHINA
Brand Name: XINGTONG
Certification: API 、ISO 9001
Model Number: 8 1/2″ 216mm XHR 5163S
Trading Properties
Minimum Order Quantity: 1 Piece（MOQ）
Price: Negotiable
Payment Terms: L/C,D/P,T/T,
Supply Ability: Stable supply and support for bulk customization.
Tags:

rock drill bit

pdc core bit

pdc diamond bit
Product Summary
Drill Bit PDC 8 1/2 In 216mm Rigid Body For High Speed Drilling In Soft Formations XHR Series Features Suitable for improving ROP in soft formation Optimize shaped cutter layout to improve drilling efficiency and enhance cuttings removal Optimize nozzles and junk slot design using CFD to accelerate ...
Product Custom Attributes
Highlight

bit pdc 8 1/2 in

,

bit pdc 216mm

,

46 Cutter drilling bit oil and gas

Cutter Typ:
GI
IADC Code:
S323
Body Type:
STEEL
Total Cutter Count:
46
Face:
31
Gauge:
8
Updrill:
7
Nozzle Type & Count:
L*7
Junk Slot Area (sq Mm):
8399
Normalized Face Volume:
54.94%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
51mm
Make-Up Length:
446mm
Approximate Shipping Weight:
68kg
Product Description
Detailed Specifications & Features
Drill Bit PDC 8 1/2 In 216mm Rigid Body For High Speed Drilling In Soft Formations
XHR Series Features
  • Suitable for improving ROP in soft formation
  • Optimize shaped cutter layout to improve drilling efficiency and enhance cuttings removal
  • Optimize nozzles and junk slot design using CFD to accelerate cutting movement
  • High strength steel body enables thinner blades to prevent back tail contact with formation during high ROP operations
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
Important Notes
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
