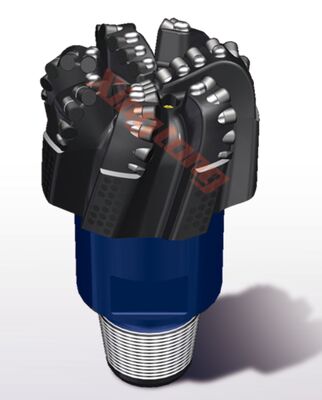

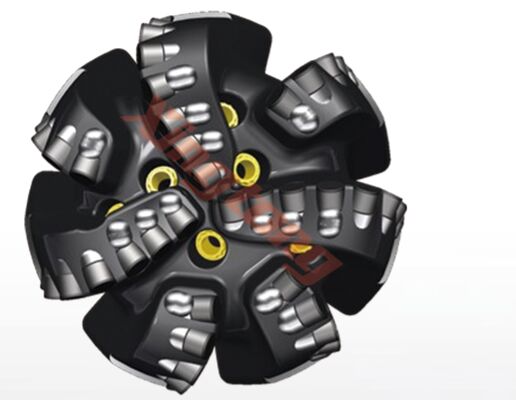

16-24KN.m Make-Up Torque PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure

  • 16-24KN.m Make-Up Torque PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
  • 16-24KN.m Make-Up Torque PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
  • 16-24KN.m Make-Up Torque PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
Place of Origin CHINA
Brand Name XINGTONG
Certification API 、ISO 9001
Model Number 8 1/2″ 216mm XH 7163S
Minimum Order Quantity 1 Piece（MOQ）
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization.
Product Details
Cutter Type GI IADC Code S323
Body Type STEEL Total Cutter Count 44
Face 30 Gauge 7
Updrill 7 Nozzle Type & Count L*6
Junk Slot Area (sq Mm) 8316 Normalized Face Volume 45.71%
API Connection 4-1/2 REG.pin Make-Up TQ 16-24KN.m
Gauge Length 76mm Make-Up Length 322mm
Approximate Shipping Weight 78kg
Highlight

16 KNm PDC Drill Bit

,

24 KNm PDC Drill Bit

,

Oil Drilling hard rock drill bits
Leave a Message
Product Description
16 KNm - 24 KNm PDC Drill Bit Hard Rock Drill Bits For Oil Drilling
PDC Drill Bits 8 1/2″ 216mm XH 7163S for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC were put on shoulder to improve wear and impact resistance
  • Special backup cutter layout to improve durability while maintaining bit aggression
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
Important Notes
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
