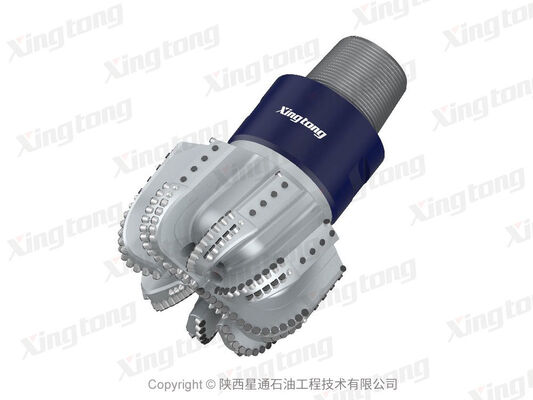

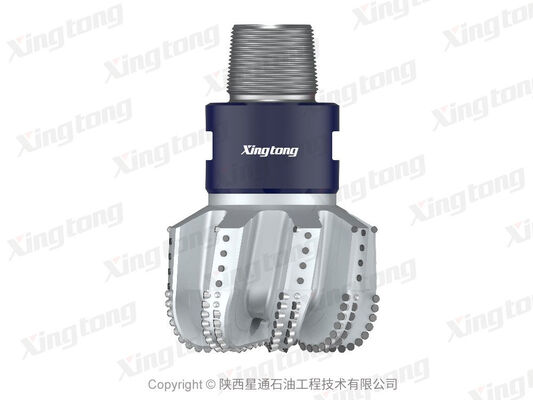

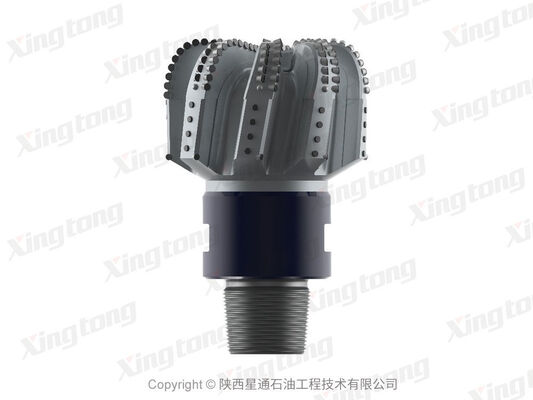

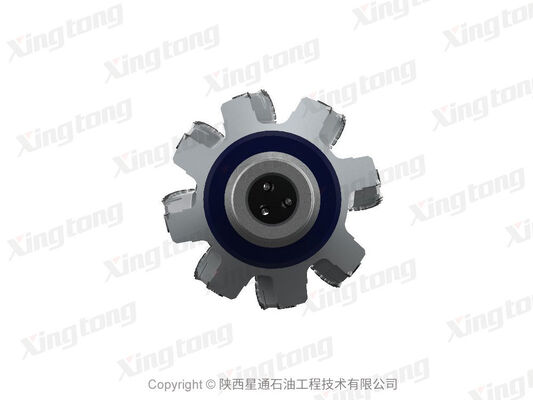

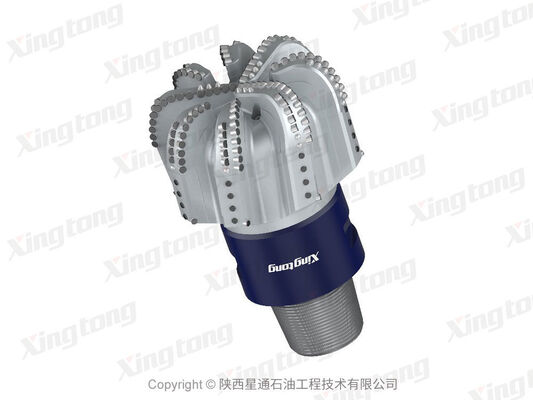

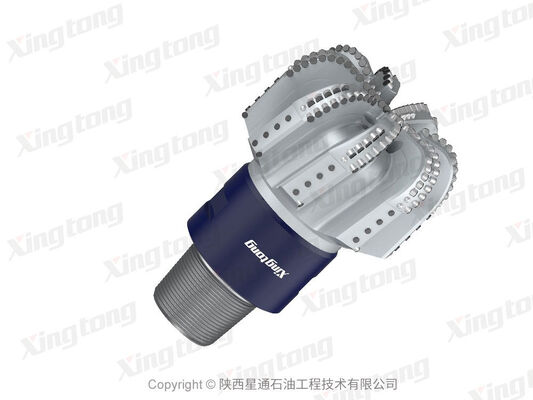

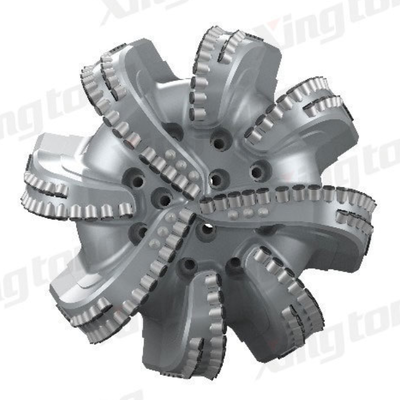

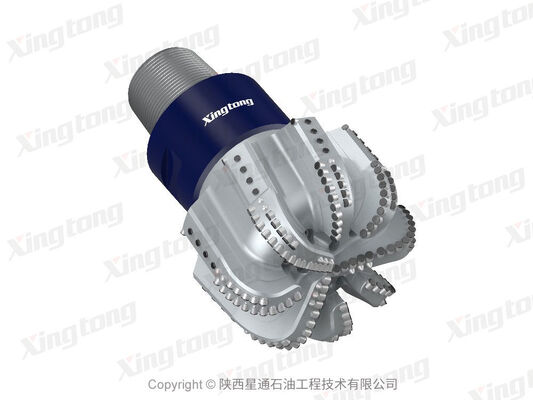

17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations

  • 17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations
  • 17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations
  • 17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations
  • 17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations
  • 17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations
  • 17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations
  • 17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations
  • 17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations
  • 17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations
  • 17 1/2 XHR S 8169 BS(24006) PDC Drill Bit High-RPM Design for Soft Formations
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 17 1/2 XHR S 8169 BS(24006)
Document 17 1.2 XHR S 8169 BS(24006)...6).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,T/T,D/P,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S222
Body Type STEEL Face 135
Gauge 32 Updrill 8
Nozzle Type & Count M*11 Chip Removal Groove Area Ratio 57.5%
API Connection 7-5/8REG Make-Up TQ 65.5-86.1KN.m
Gauge Length 142mm Make-Up Length 524mm
Approximate Shipping Weight 289kg Recommended Weight On Bit（Maximum Acceptable） 16-20T
Total Flow Area 1066mm^2
Highlight

PDC drill bit 17 1/2 XHR

,

Xingtong drill bit S 8169 BS

,

PDC drill bit with warranty
Leave a Message
Product Description
Xingtong Drill Bit 17 1/2 XHR S 8169 BS(24006)
Positioning

The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, resulting in significantly increased drilling speeds.

Technical Highlights
  • Specifically designed for high-speed drilling applications in soft formations
  • Hybrid matrix cutting teeth with optimized irregular geometry enhance rock-breaking efficiency while accelerating cuttings transport velocity
  • CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed drilling operations
  • High-strength steel body construction allows for thinner cutter blade thickness, preventing interference at the blade rear during high mechanical drilling rates
Applicable Operating Conditions

Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required, with the objective of achieving maximum possible mechanical drilling rate.
