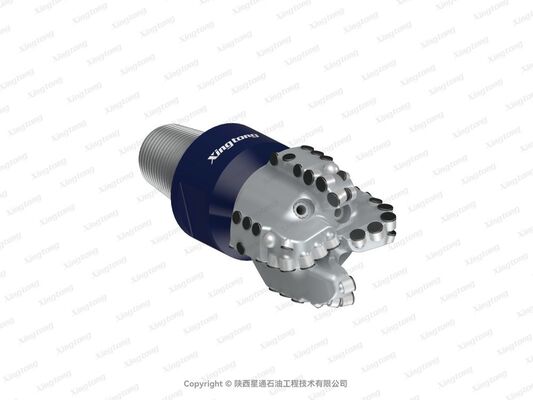

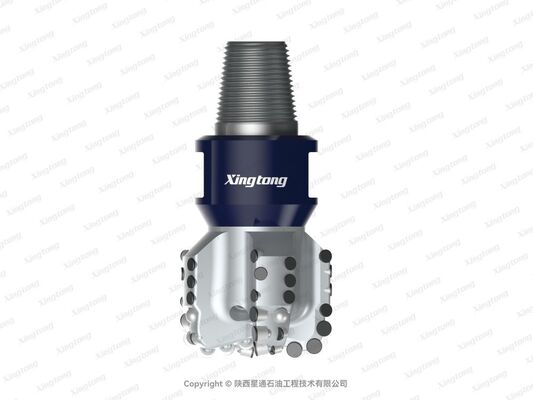

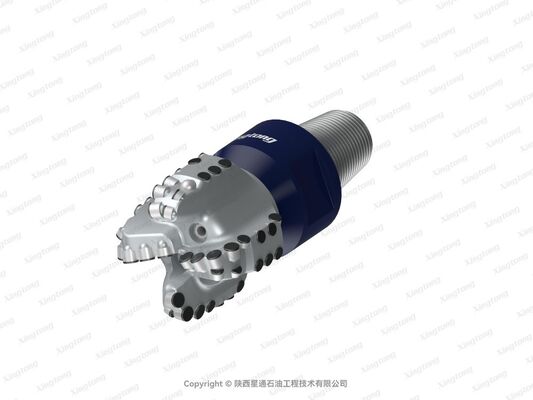

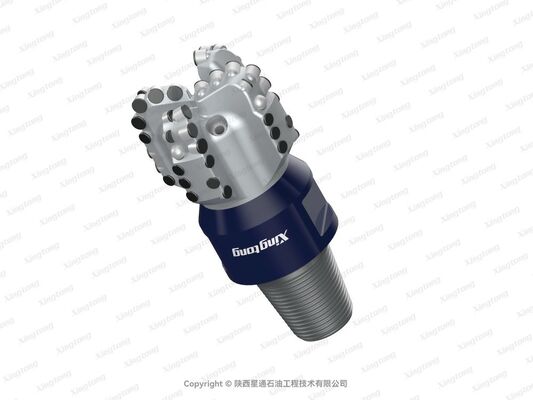

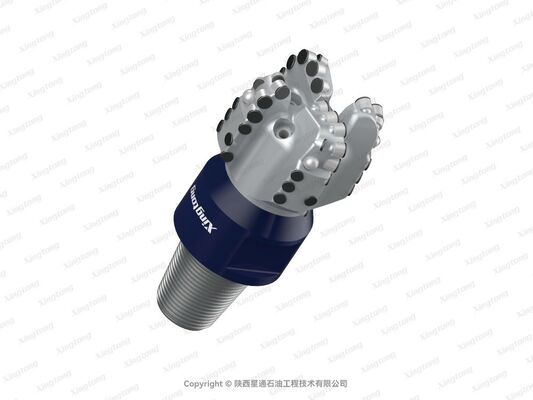

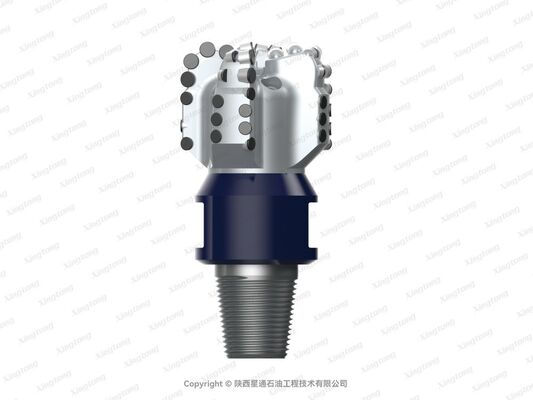

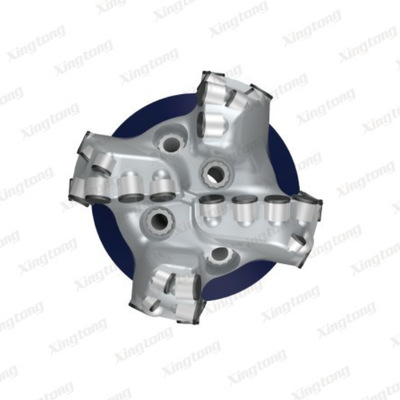

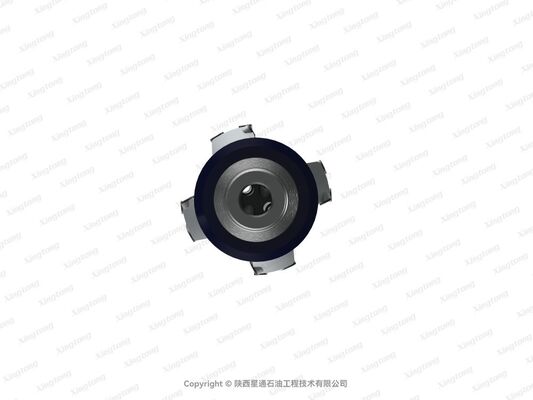

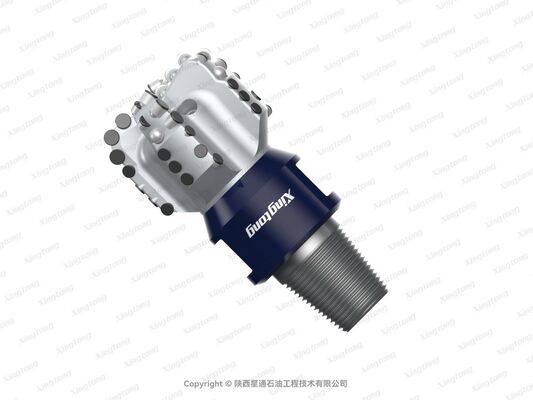

6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics

  • 6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 XHR S 4166 A(24034) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 6 XHR S 4166 A(24034)
Document 6 XHR S 4166 A(24034).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S323
Body Type STEEL Face 25
Gauge 18 Updrill 4
Nozzle Type & Count M*4 Chip Removal Groove Area Ratio 67.6%
API Connection 3-1/2REG Make-Up TQ 7.1-11.5KN.m
Gauge Length 50mm Make-Up Length 226mm
Approximate Shipping Weight 19kg Recommended Weight On Bit（Maximum Acceptable） 10-12T （78T）
Total Flow Area 230mm^2
Highlight

PDC drill bit with warranty

,

Xingtong PDC drill bit

,

6 XHR S drill bit
Leave a Message
Product Description
Xingtong Drill Bit 6 XHR S 4166 A(24034)
Product Positioning

The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, significantly accelerating drilling speed.

Technical Highlights
  • Optimized for high-speed drilling in soft formations
  • Hybrid matrix cutting teeth with irregular geometry enhance rock-breaking efficiency while increasing cuttings transport velocity
  • CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed drilling operations
  • High-strength steel body enables thinner cutter blade thickness, preventing interference at the blade rear during high mechanical drilling rates
Applicable Operating Conditions

Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed for applications aiming to achieve the highest possible mechanical drilling rate.
