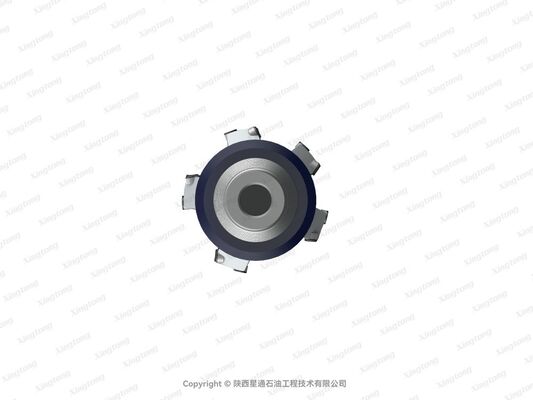

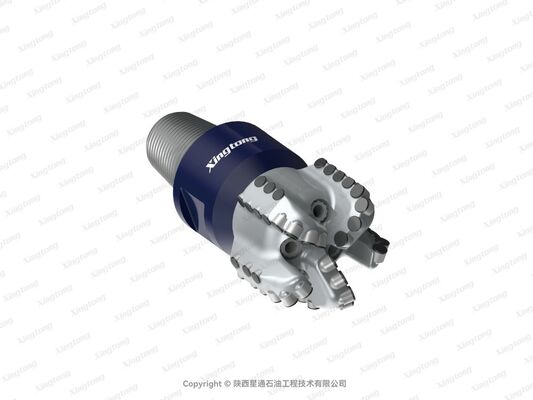

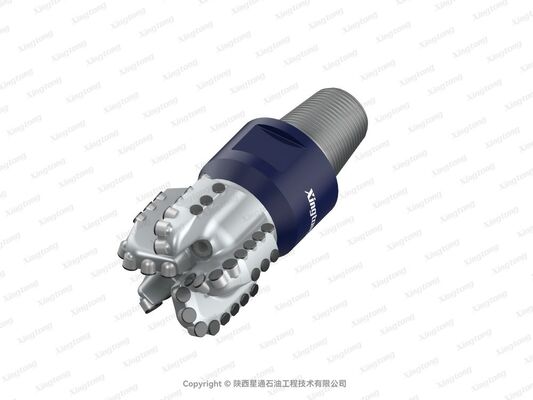

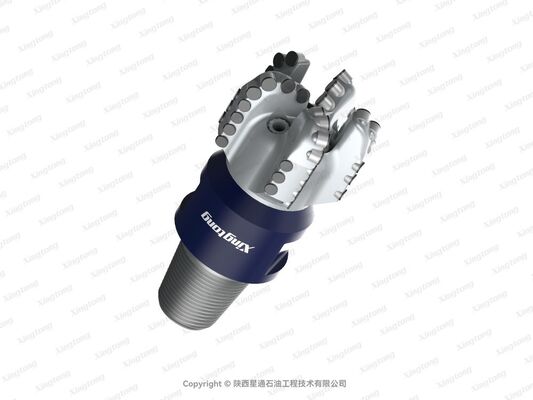

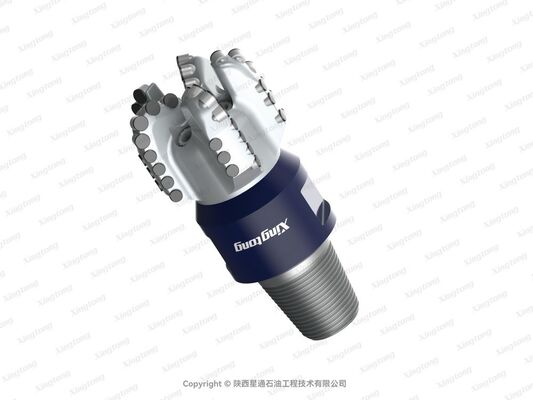

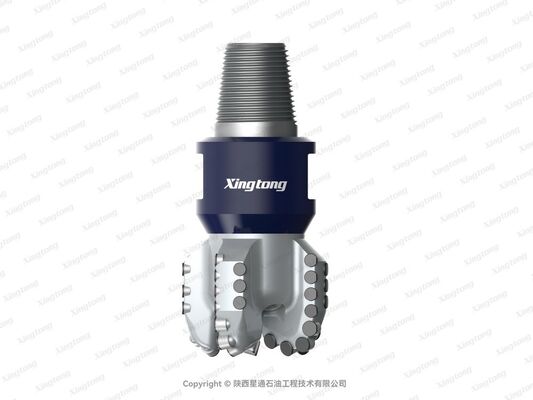

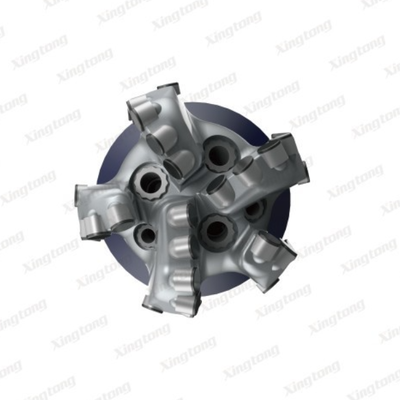

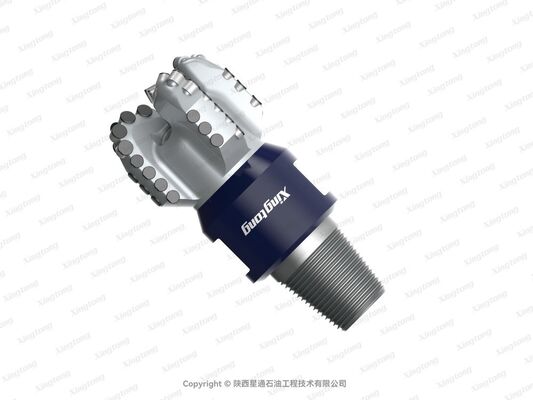

6 XHR S 5166 A(24043) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API、ISO 9001 |
| Model Number | 6 XHR S 5166 A(24043) |
| Document | 6 XHR S 5166 A(24043).pdf |
| Minimum Order Quantity | 1 Picece(MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/P,T/T, |
| Supply Ability | Stable supply and support for bulk customization |
Product Details
| Cutter Grade | GI | IADC Code | S324 |
|---|---|---|---|
| Body Type | STEEL | Face | 20 |
| Gauge | 26 | Nozzle Type & Count | M*5 |
| Chip Removal Groove Area Ratio | 63.4% | API Connection | 3-1/2REG |
| Make-Up TQ | 7.1-11.5KN.m | Gauge Length | 50mm |
| Make-Up Length | 222mm | Approximate Shipping Weight | 18kg |
| Recommended Weight On Bit（Maximum Acceptable） | 10-12T （78T） | Total Flow Area | 406mm^2 |
| Highlight | PDC drill bit Xingtong 6 XHR S,Xingtong drill bit 5166 A model,PDC drill bit with warranty |
||
Product Description
Xingtong Drill Bit 6 XHR S 5166 A(24043)
Positioning
The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, significantly accelerating drilling speed.
Technical Highlights
- Specifically designed for high-speed drilling in soft formations
- Hybrid matrix with optimized irregular cutting teeth enhances rock-breaking efficiency while increasing cuttings transport velocity
- CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed operations
- High-strength steel body enables thinner cutter blade design, preventing interference during high mechanical drilling rates
Applicable Operating Conditions
Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed for applications aiming to achieve the highest possible mechanical drilling rate.
