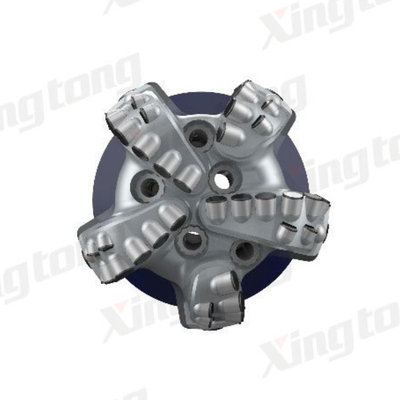

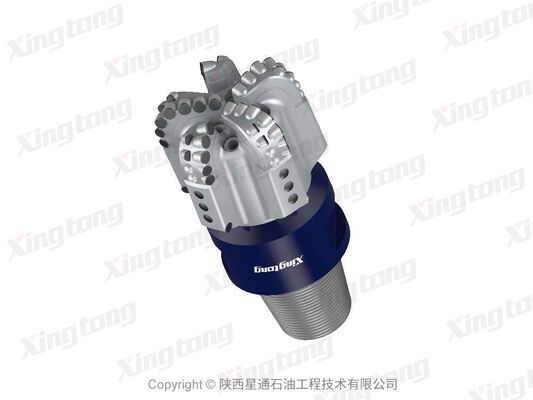

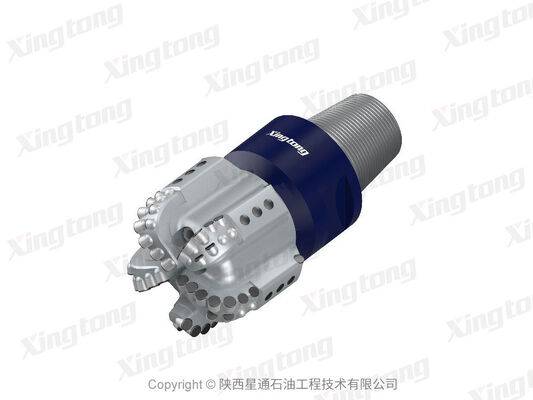

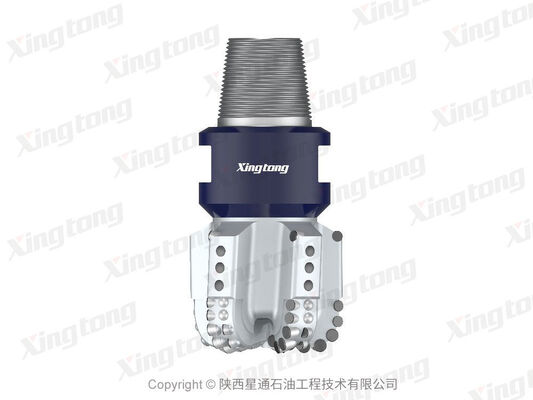

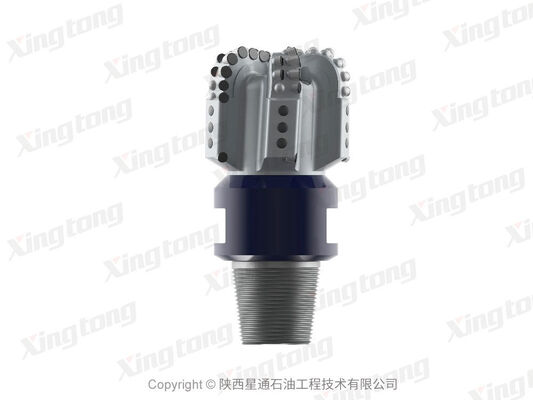

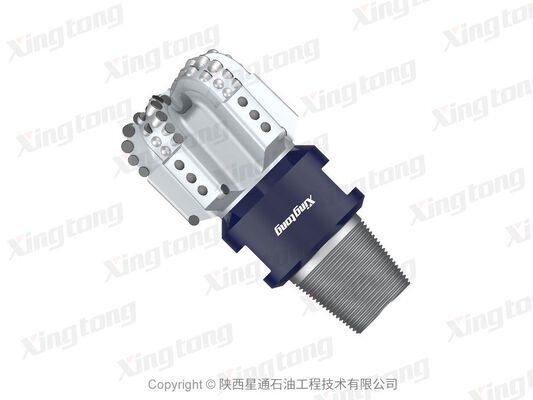

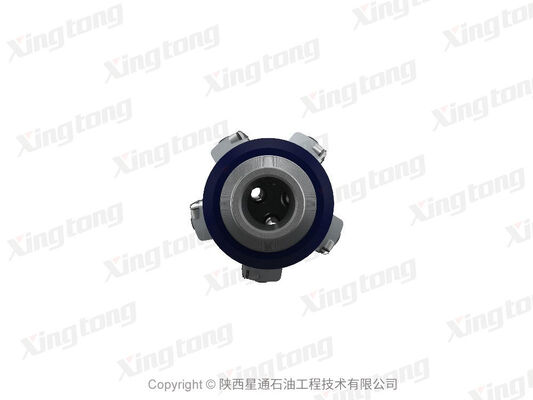

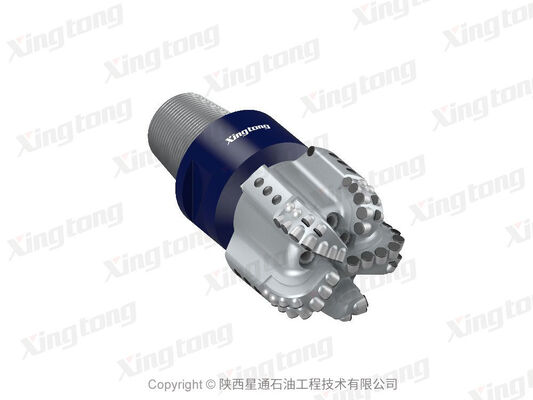

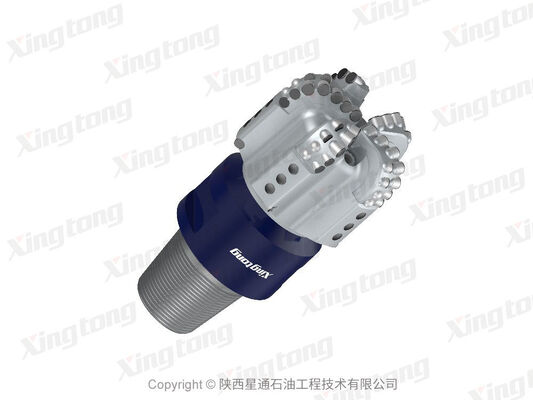

7 1/2 XH S 5167 BM(24002) Size PDC Drill Bit with GI Cutter Grade and 4-1/2REG API Connection for Hard Formations
7 1/2 XH S 5167 BM(24002) Size PDC Drill Bit with GI Cutter Grade and 4-1/2REG API Connection for Hard Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
7 1/2 XH S 5167 BM(24002)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,,T/T
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 7 1/2 XH S 5167 BM(24002) Product Positioning The XH series represents Xingtong's high-durability drill bit lineup engineered specifically for ultra-hard and highly abrasive formations. This series is designed with core objectives of extending bit life and maintaining stable ...
Product Custom Attributes
Highlight
PDC drill bit 7 1/2 size
,Xingtong PDC drill bit XH
,S 5167 BM drill bit
Cutter Grade:
GI
IADC Code:
S322
Face:
40
Gauge:
15
Updrill:
5
Nozzle Type & Count:
M*5
Chip Removal Groove Area Ratio:
55.4%
API Connection:
4-1/2REG
Make-Up TQ:
17.0-26.4KN.m
Gauge Length:
73mm
Make-Up Length:
278mm
Approximate Shipping Weight:
36kg
Recommended Weight On Bit（Maximum Acceptable）:
12-14T（133T）
Total Flow Area:
485mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 7 1/2 XH S 5167 BM(24002)
Product Positioning
The XH series represents Xingtong's high-durability drill bit lineup engineered specifically for ultra-hard and highly abrasive formations. This series is designed with core objectives of extending bit life and maintaining stable penetration rates in the most demanding drilling conditions.
In extremely hard formations, the XH series incorporates enhanced wear-resistant materials and optimized structural design to achieve longer single-bit run times, reduce the frequency of make-up and break-out operations, and improve overall drilling efficiency.
Technical Highlights
- Suitable for hard formations to enhance drill bit life and penetration rate
- Optimized crown geometry ensures more uniform load distribution, reduces load on individual teeth in the tooth root, and lowers the risk of core gouging
- Select high-performance imported PDC cutters enhance shoulder wear resistance and impact resistance, extending overall service life
- Unique rear-flute design enhances drill-bit durability while maintaining cutting aggressiveness
Applicable Operating Conditions
Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
