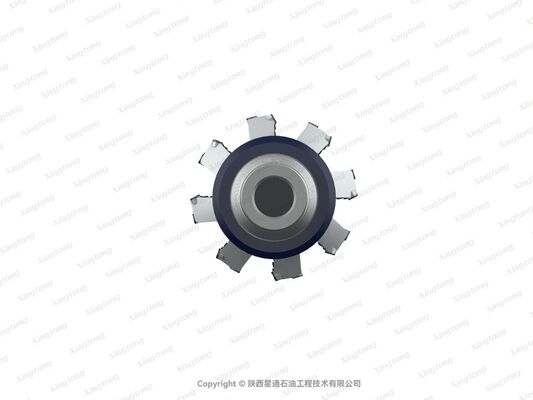

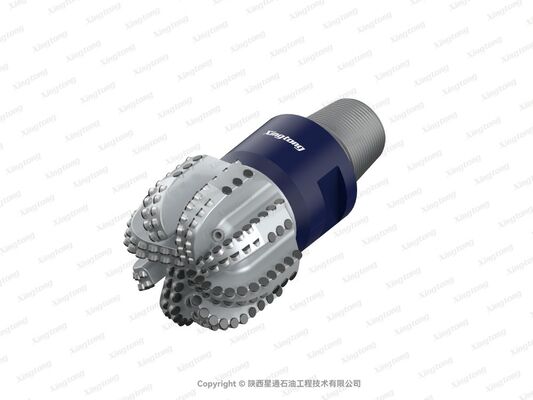

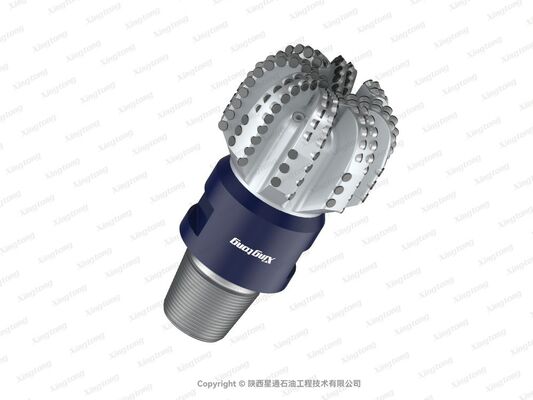

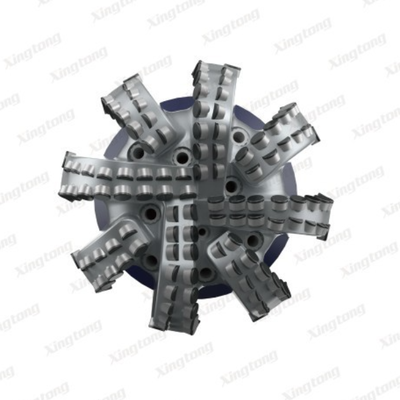

8 1/2 XH S 8139 AB(24056) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
8 1/2 XH S 8139 AB(24056) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
8 1/2 XH S 8139 AB(24056)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 8 1/2 XH S 8139 AB(24056) Positioning The XH series is a high-durability drill bit line developed by Xingtong specifically for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, this series ...
Product Custom Attributes
Highlight
PDC drill bit 8 1/2 XH
,Xingtong PDC drill bit S 8139
,PDC drill bit with warranty
Cutter Grade:
GI
IADC Code:
S432
Body Type:
STEEL
Face:
110
Gauge:
44
Updrill:
8
Nozzle Type & Count:
M*9
Chip Removal Groove Area Ratio:
53.3%
API Connection:
4-1/2REG
Make-Up TQ:
17.0-26.4KN.m
Gauge Length:
62mm
Make-Up Length:
201mm
Approximate Shipping Weight:
44kg
Recommended Weight On Bit (Maximum Acceptable):
14-16T(133T)
Total Flow Area:
519mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 8 1/2 XH S 8139 AB(24056)
Positioning
The XH series is a high-durability drill bit line developed by Xingtong specifically for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, this series incorporates enhanced wear-resistant materials and an optimized structural design to deliver longer single-bit run times, reduce the number of make-up and break-out operations, and improve overall drilling efficiency in extremely hard formations.
Technical Highlights
- Suitable for hard formations to enhance drill bit life and penetration rate
- Optimized crown geometry ensures more uniform load distribution, reduces load on individual teeth in the tooth root, and lowers the risk of core gouging
- High-performance imported PDC cutters enhance shoulder wear resistance and impact resistance, extending overall service life
- Unique rear-flank tooth arrangement enhances drill durability while maintaining aggressive cutting performance
Applicable Operating Conditions
Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
