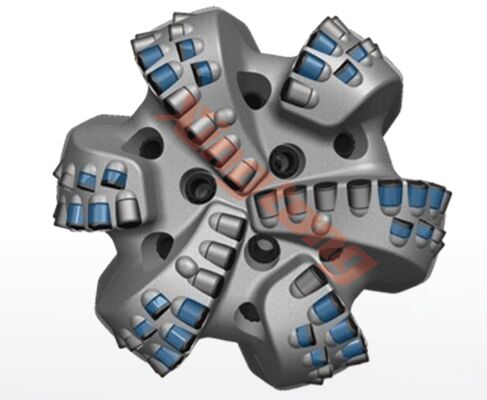

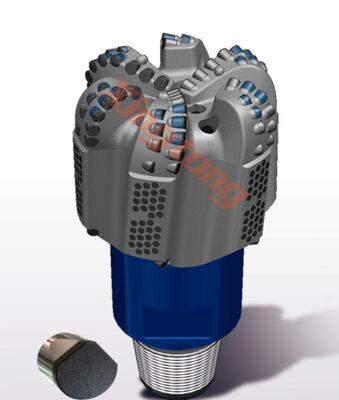

222mm 8 3/4inch PDC Diamond Drill Bit for Super Hard Formations in Oil Drilling

222mm 8 3/4inch PDC Diamond Drill Bit for Super Hard Formations in Oil Drilling
Basic Properties
Place of Origin: CHINA
Brand Name: XINGTONG
Certification: API 、ISO 9001
Model Number: 8 3/4″ 222mm XH 6162LA
Trading Properties
Minimum Order Quantity: 1 Piece（MOQ）
Price: Negotiable
Payment Terms: L/C,D/P,T/T,
Supply Ability: Stable supply and support for bulk customization.
Tags:

rock drill bit

pdc core bit

pdc diamond bit
Product Summary
222mm 8 3/4inch Oil Diamond Drill Bit Diamond Drill Bits For Rock PDC Drill Bits 8 3/4″ 222mm XH 6162LA for Oil Drilling in Super Hard Formations XH Series Features Suitable for increasing durability and footage Optimized profile makes load distribution more even to reduce ring out risk High quality ...
Product Custom Attributes
Highlight

222mm oil diamond drill bit

,

8 3/4inch oil diamond drill bit

,

PDC diamond drill bits for rock

Cutter Type:
GI
IADC Code:
S332
Body Type:
STEEL
Total Cutter Count:
72
Face:
52
Gauge:
14
Updrill:
6
Nozzle Type & Count:
L*9
Junk Slot Area (sq Mm):
8265
Normalized Face Volume:
42.76%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
102mm
Make-Up Length:
501mm
Approximate Shipping Weight:
96kg
Product Description
Detailed Specifications & Features
222mm 8 3/4inch Oil Diamond Drill Bit Diamond Drill Bits For Rock
PDC Drill Bits 8 3/4″ 222mm XH 6162LA for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce ring out risk
  • High quality PDC on shoulder improves wear and impact resistance
  • Special backup cutter layout improves bit durability while maintaining aggression
Product Features
  • 1.6mm Stepped Gauge
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter
  • Drop In Cutters on Gauge Pads
Important Notes

Recommended top-buckle torque is set according to joint inner and outer diameter, with reference to API7G

Technical performance of drill bits sold by Xingtong will be fully implemented according to terms agreed with customer

Pictures are for reference only - please contact Skycom engineers for detailed technical parameters
