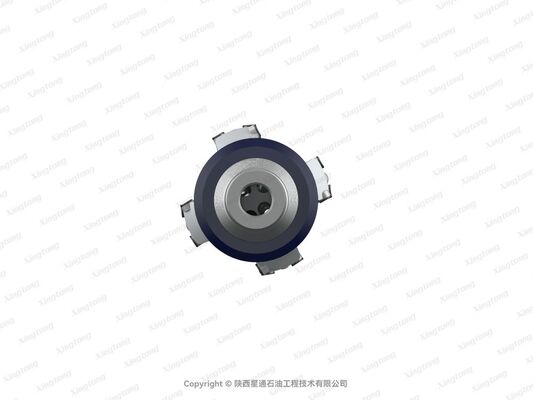

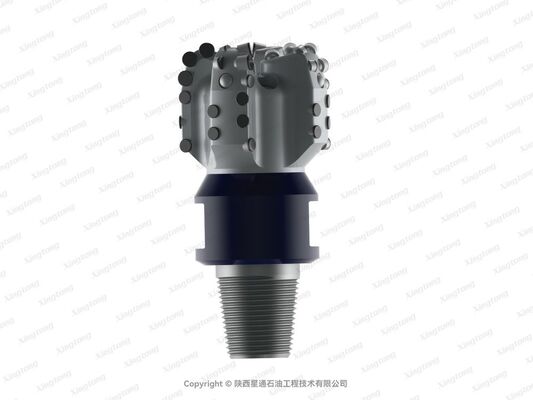

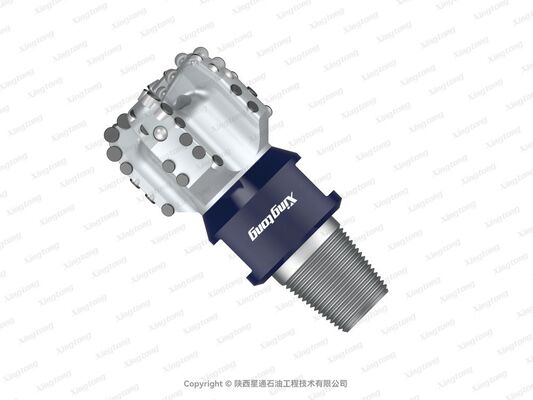

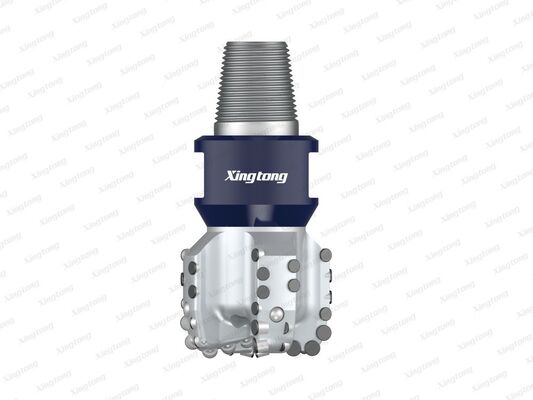

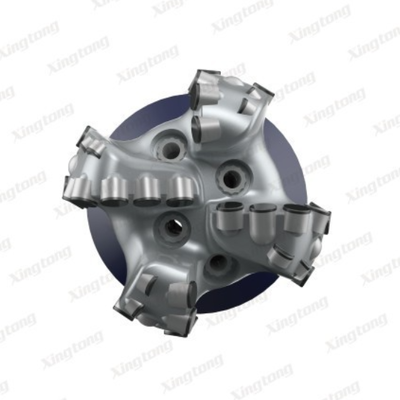

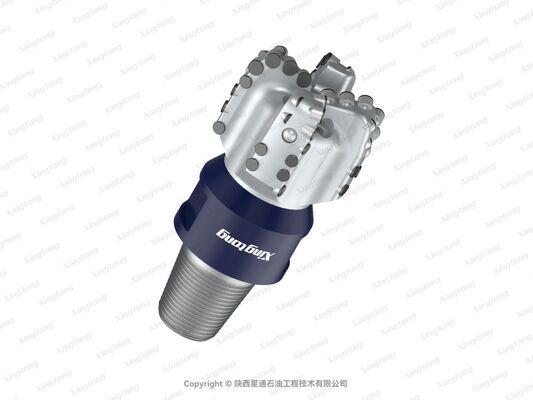

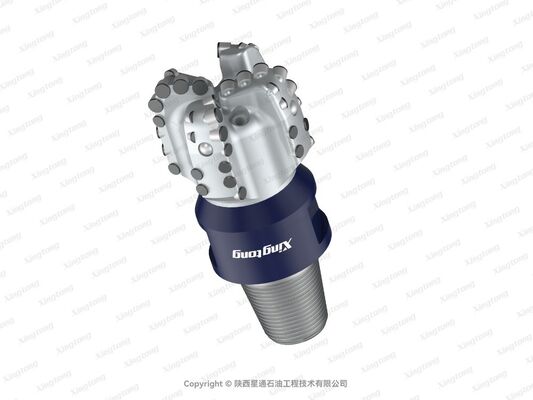

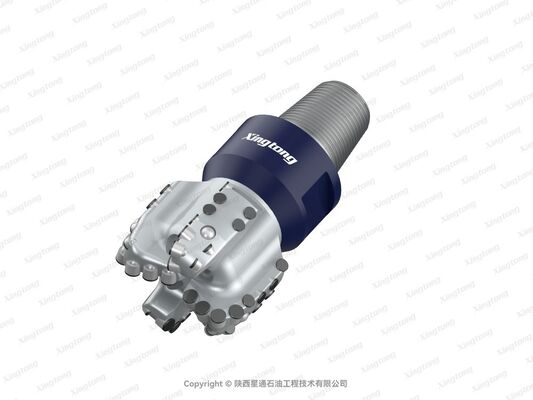

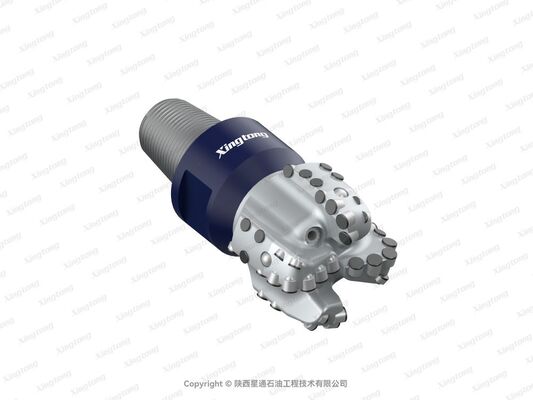

6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design

  • 6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design
  • 6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design
  • 6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design
  • 6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design
  • 6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design
  • 6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design
  • 6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design
  • 6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design
  • 6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design
  • 6 XHR S 4166 B(24033) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulic Design
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 6 XHR S 4166 B(24033)
Document 6 XHR S 4166 B(24033).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S322
Body Type STEEL Face 23
Gauge 15 Updrill 4
Nozzle Type & Count M*4 Chip Removal Groove Area Ratio 61.2%
API Connection 3-1/2REG Make-Up TQ 7.1-11.5KN.m
Gauge Length 55mm Make-Up Length 226mm
Approximate Shipping Weight 19kg Recommended Weight On Bit（Maximum Acceptable） 10-12T （78T）
Total Flow Area 230mm^2
Highlight

PDC drill bit with XHR S design

,

Xingtong PDC drill bit 4166 B

,

Durable PDC drill bit 24033
Leave a Message
Product Description
Xingtong Drill Bit 6 XHR S 4166 B(24033)
Positioning

The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, significantly accelerating drilling speed.

Technical Highlights
  • Specifically designed for high-speed drilling in soft formations
  • Hybrid matrix with optimized irregular cutting teeth enhances rock-breaking efficiency while increasing cuttings transport velocity
  • CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed operations
  • High-strength steel body enables thinner cutter blade design, preventing interference during high mechanical drilling rates
Applicable Operating Conditions

Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required, with the objective of achieving maximum mechanical drilling rate.
