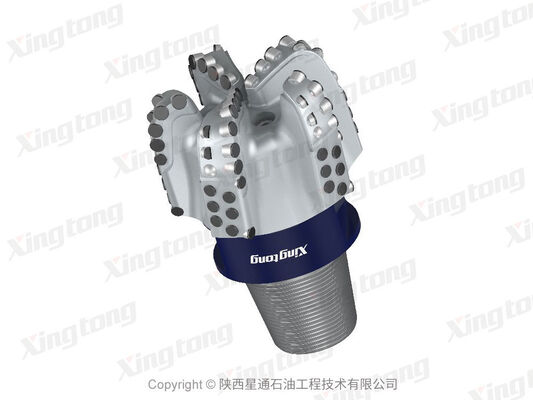

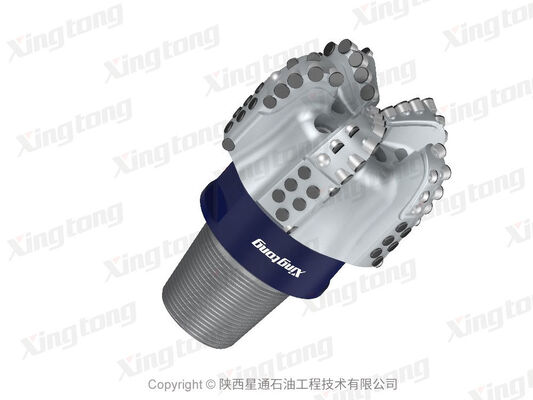

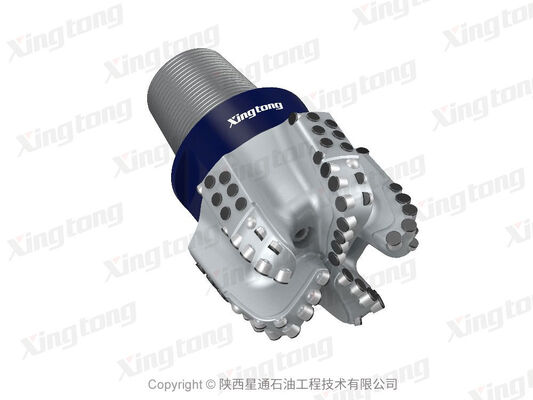

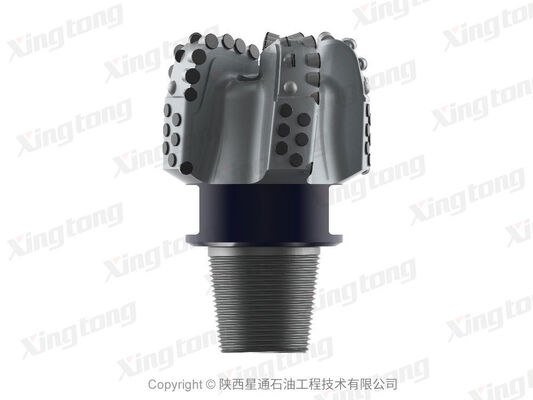

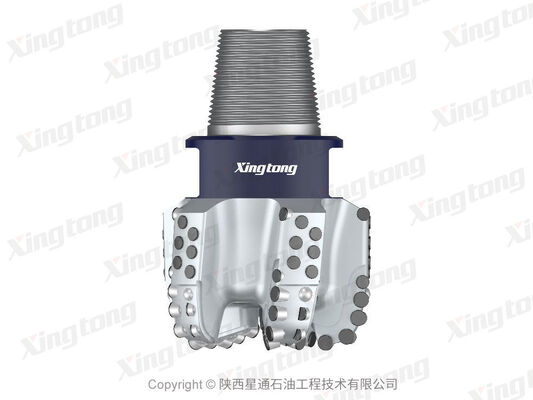

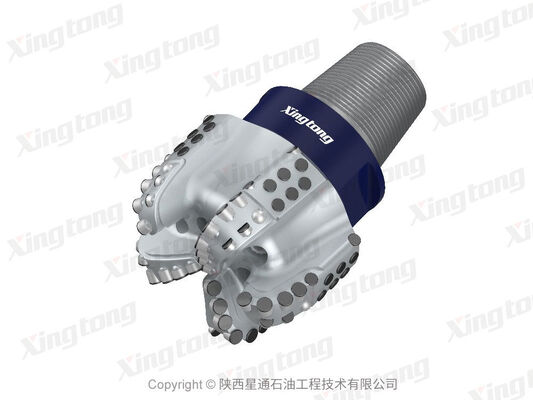

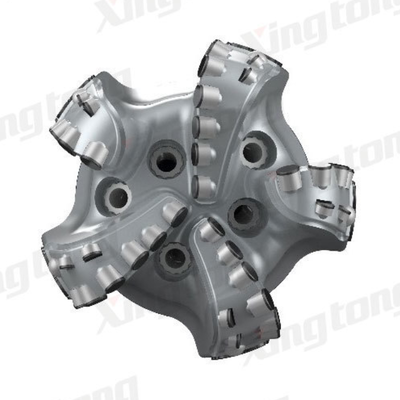

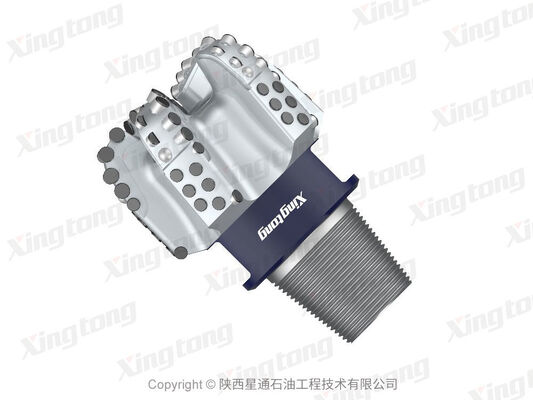

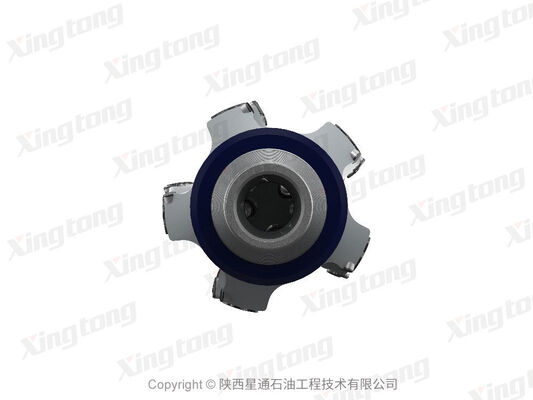

8 1/2 XD S 5166 AD(24007) Size PDC Drill Bit with Ultra-Short Body and Detent-Tooth Design for Directional Drilling
8 1/2 XD S 5166 AD(24007) Size PDC Drill Bit with Ultra-Short Body and Detent-Tooth Design for Directional Drilling
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
8 1/2 XD S 5166 AD(24007)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 8 1/2 XD S 5166 AD(24007) Technical Highlights Suitable for use with a rotary steerable system to increase the build rate, or with a screw motor to enhance directional drilling efficiency. Ultra-short body design reduces the effective make-up length by 40% compared with convention...
Product Custom Attributes
Highlight
PDC drill bit 8 1/2 size
,Xingtong drill bit with warranty
,PDC drill bit for drilling
Cutter Grade:
GI
IADC Code:
S322
Body Type:
STEEL
Face:
42
Gauge:
25
Updrill:
5
Nozzle Type & Count:
M*5
Chip Removal Groove Area Ratio:
58.9%
API Connection:
4-1/2REG
Make-Up TQ:
17.0-26.4KN.m
Gauge Length:
72mm
Make-Up Length:
217mm
Approximate Shipping Weight:
34kg
Recommended Weight On Bit（Maximum Acceptable）:
14-16T（133T）
Total Flow Area:
485mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 8 1/2 XD S 5166 AD(24007)
Technical Highlights
- Suitable for use with a rotary steerable system to increase the build rate, or with a screw motor to enhance directional drilling efficiency.
- Ultra-short body design reduces the effective make-up length by 40% compared with conventional drill bits, significantly enhancing deviation-control capability.
- The unique detent-tooth design ensures excellent tool-face stability even under enhanced weight-on-bit during directional sliding.
- The maximum build rate when used with a bent sub is ≥30°/30 m, and the maximum build rate when used with a rotary steerable system is ≥15°/30 m.
Applicable Operating Conditions
The XD directional series is designed for critical drilling sections such as the build-up and horizontal sections of directional wells and can be used in conjunction with downhole screw motors and other directional tools.
In applications such as coal mine gas drainage boreholes and highly challenging, long-reach wells, this drill bit series has consistently delivered outstanding performance, achieving single-trip penetration and rapid rate-of-penetration.
