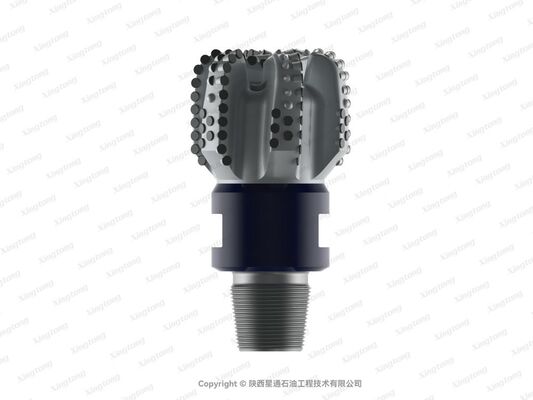

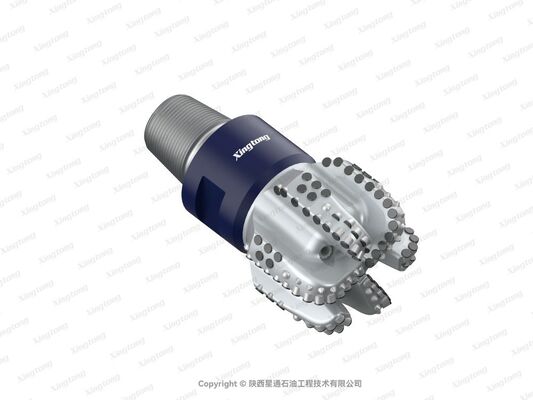

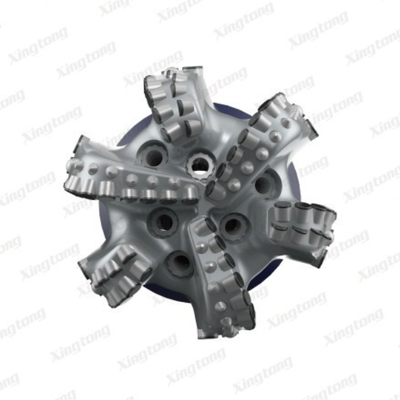

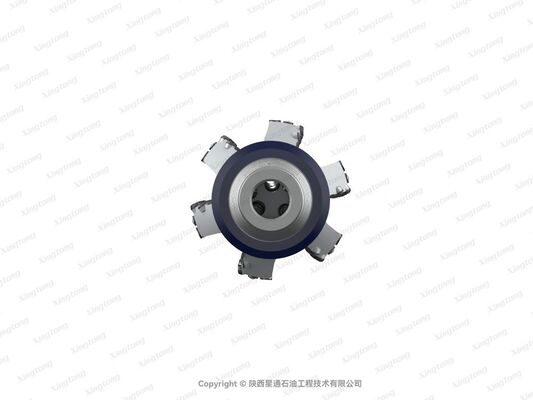

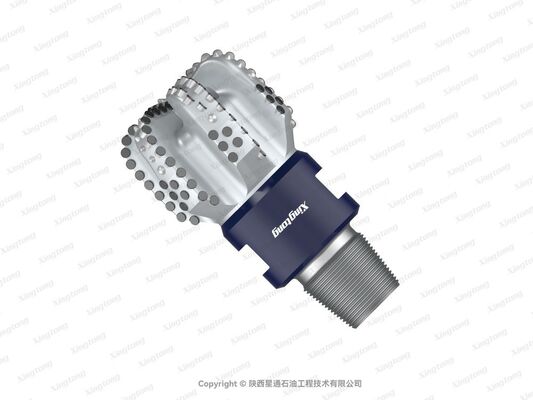

8 1/2 XH S 6169 BK(24051) Size High-Durability PDC Drill Bit for Hard Formations
8 1/2 XH S 6169 BK(24051) Size High-Durability PDC Drill Bit for Hard Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
8 1/2 XH S 6169 BK(24051)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 8 1/2 XH S 6169 BK(24051) Positioning The XH series is a high-durability drill bit lineup developed by Xingtong specifically for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, this series ...
Product Custom Attributes
Highlight
PDC drill bit with warranty
,Xingtong PDC drill bit 8 1/2
,XH S 6169 BK drill bit
Cutter Grade:
GI
IADC Code:
S422
Body Type:
STEEL
Face:
60
Gauge:
42
Carbide:
27
Updrill:
12
Nozzle Type & Count:
M*6
Chip Removal Groove Area Ratio:
56.4%
API Connection:
4-1/2REG
Make-Up TQ:
17.0-26.4kN.m
Gauge Length:
52mm
Make-Up Length:
301mm
Approximate Shipping Weight:
43kg
Recommended Weight On Bit（Maximum Acceptable）:
14-16T（133T）
Total Flow Area:
582mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 8 1/2 XH S 6169 BK(24051)
Positioning
The XH series is a high-durability drill bit lineup developed by Xingtong specifically for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, this series incorporates enhanced wear-resistant materials and an optimized structural design to achieve longer single-bit run times, reduce make-up and break-out operations, and improve overall drilling efficiency in extremely hard formations.
Technical Highlights
- Suitable for hard formations to enhance drill bit life and penetration rate
- Optimized crown geometry ensures more uniform load distribution, reduces load on individual teeth in the tooth root, and lowers the risk of core gouging
- High-performance imported PDC cutters enhance shoulder wear resistance and impact resistance, extending overall service life
- Unique rear-flute design enhances drill-bit durability while maintaining cutting aggressiveness
Applicable Operating Conditions
Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
