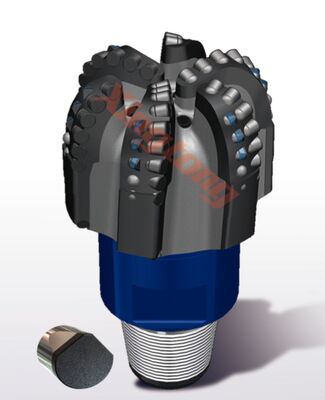

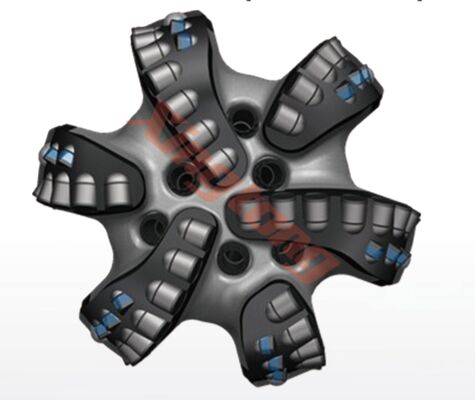

ISO9001 Certified S425 IADC Code PDC Drill Bit with 66 Cutter for High-Speed Drilling

ISO9001 Certified S425 IADC Code PDC Drill Bit with 66 Cutter for High-Speed Drilling
Basic Properties
Place of Origin: CHINA
Brand Name: XINGTONG
Certification: API 、ISO 9001
Model Number: 8 3/4″ 222mm XHR 6164BM
Trading Properties
Minimum Order Quantity: 1 Piece（MOQ）
Price: Negotiable
Payment Terms: L/C,D/P,T/T,
Supply Ability: Stable supply and support for bulk customization.
Tags:

rock drill bit

pdc core bit

pdc diamond bit
Product Summary
ISO9001 Drilling Oil Rig Bit 66 Cutter S425 Polycrystalline Diamond Compact PDC Drill Bits 8 3/4″ 222mm XHR 6164BM for High-Speed Drilling in Soft Formations XHR Series Features Suitable for improving ROP in soft formation Optimize shaped cutter layout to improve drilling efficiency and enhance ...
Product Custom Attributes
Highlight

ISO9001 oil rig bit

,

oil rig bit 66 Cutter

,

S425 polycrystalline diamond compact

Cutter Type:
Cutter Type
IADC Code:
S425
Body Type:
STEEL
Total Cutter Count:
66
Face:
48
Gauge:
12
Updrill:
6
Nozzle Type & Count:
L*6
Junk Slot Area (sq Mm):
11748
Normalized Face Volume:
50.33%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
76mm
Make-Up Length:
455mm
Approximate Shipping Weight:
81kg
Product Description
Detailed Specifications & Features
ISO9001 Drilling Oil Rig Bit 66 Cutter S425 Polycrystalline Diamond Compact
PDC Drill Bits 8 3/4″ 222mm XHR 6164BM for High-Speed Drilling in Soft Formations
XHR Series Features
  • Suitable for improving ROP in soft formation
  • Optimize shaped cutter layout to improve drilling efficiency and enhance cuttings removal
  • Optimize nozzles and junk slot design using CFD to accelerate cutting movement
  • High strength steel body enables thinner blades to prevent back tail contact with formation during high ROP
Product Features
  • 1.6mm Stepped Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
Important Notes
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
  • The technical performance of drill bits sold by Xingtong will be fully implemented according to terms agreed with customers
  • Pictures are for reference only - please contact Skycom engineers for detailed technical parameters
