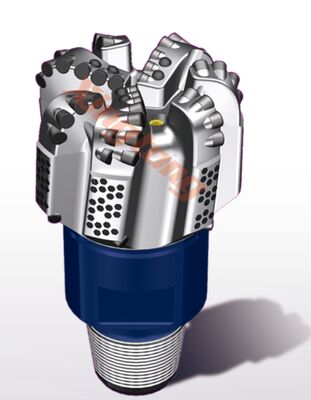

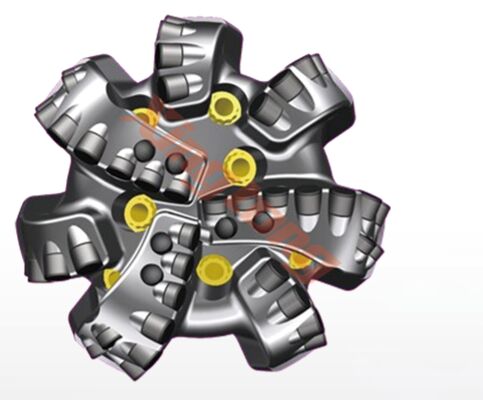

8.5inch 216mm PDC Drill Bit for Hard Formations in Oil Field Applications
8.5inch 216mm PDC Drill Bit for Hard Formations in Oil Field Applications
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
8 1/2″ 216mm XH 5164
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
8.5inch Drill Bit Oil Field 216mm Hard Formations Drill Bits For Oil XH Series Features Suitable for increasing durability and footage Optimized profile makes load distribution more even to reduce the risk of ring out High quality PDC on shoulder to improve wear and impact resistance Special backup ...
Product Custom Attributes
Highlight
8.5inch drill bit oil field
,drill bit oil field 216mm
,Hard Formations drill bits for oil
Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
49
Face:
34
Gauge:
8
Updrill:
7
Nozzle Type & Count:
L*7
Junk Slot Area (sq Mm):
9168
Normalized Face Volume:
49.41%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
76mm
Make-Up Length:
451mm
Approximate Shipping Weight:
82kg
Product Description
Detailed Specifications & Features
8.5inch Drill Bit Oil Field 216mm Hard Formations Drill Bits For Oil
XH Series Features
- Suitable for increasing durability and footage
- Optimized profile makes load distribution more even to reduce the risk of ring out
- High quality PDC on shoulder to improve wear and impact resistance
- Special backup cutter layout improves bit durability while maintaining aggression
Product Features
- Drop In Cutters on Gauge Pads
- 0.8mm Relieved Gauge
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
Important Note
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters.
