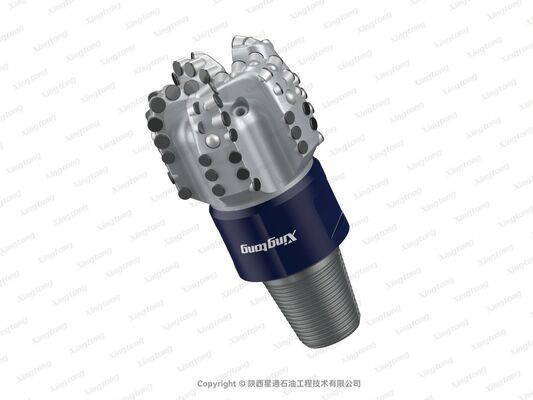

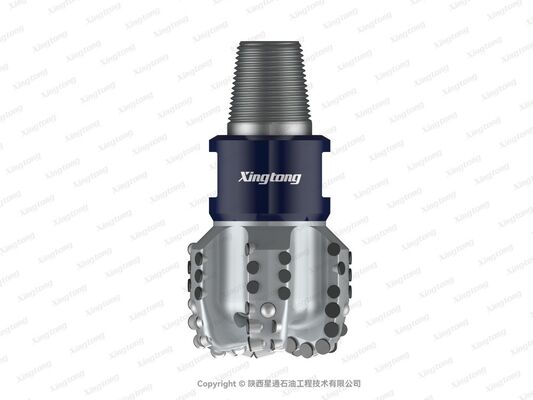

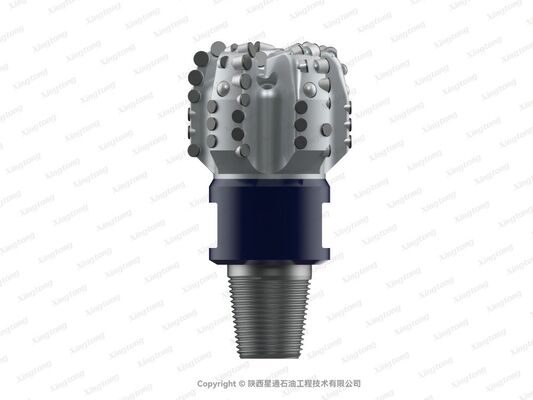

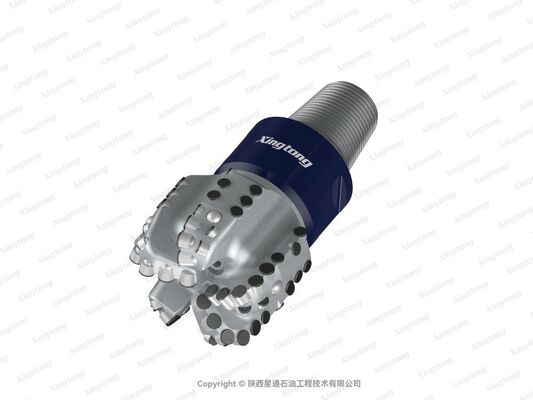

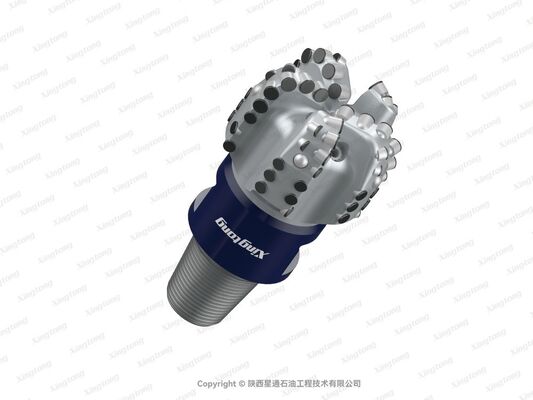

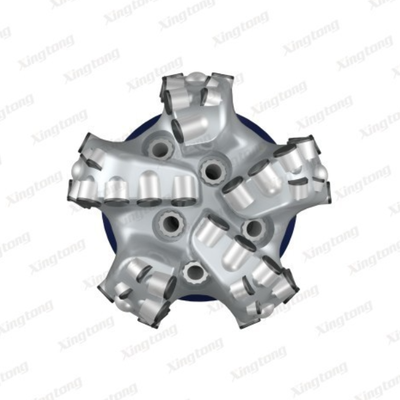

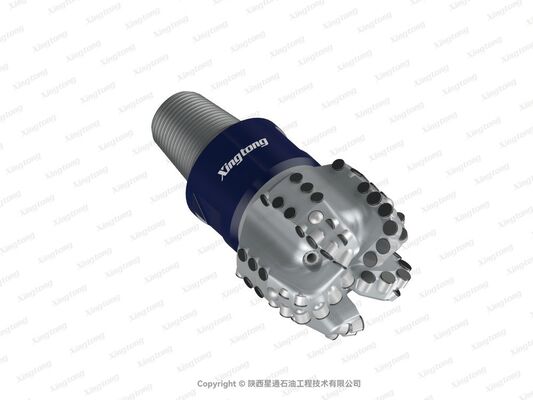

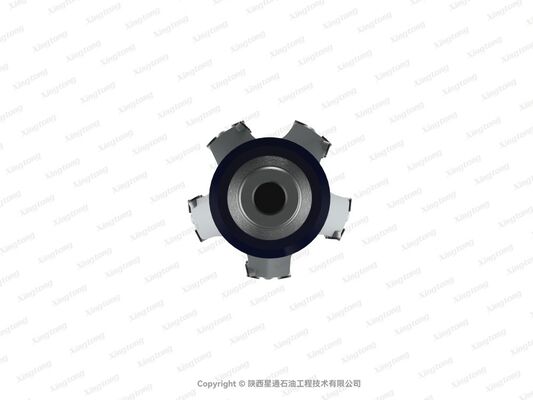

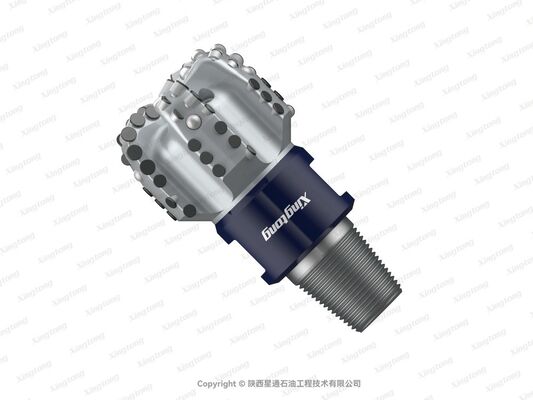

6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations

  • 6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
  • 6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
  • 6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
  • 6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
  • 6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
  • 6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
  • 6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
  • 6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
  • 6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
  • 6 1/2 XH S 5167 B(24039) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 6 1/2 XH S 5167 B(24039)
Document 6 1.2 XH S 5167 B(24039).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S422
Body Type STEEL Face 36
Gauge 23 Updrill 5
Nozzle Type & Count M*5 Chip Removal Groove Area Ratio 52.6%
API Connection 3-1/2REG Make-Up TQ 7.1-11.5KN.m
Gauge Length 58mm Make-Up Length 225mm
Approximate Shipping Weight 22kg Recommended Weight On Bit（Maximum Acceptable） 10-12T （78T）
Total Flow Area 289mm^2
Highlight

PDC drill bit 6 1/2 XH

,

S 5167 B drill bit

,

Xingtong PDC bit 24039
Leave a Message
Product Description
Xingtong Drill Bit 6 1/2 XH S 5167 B(24039)
Product Positioning
The XH series represents Xingtong's high-durability drill bit lineup specifically engineered for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, this series incorporates enhanced wear-resistant materials and optimized structural design to achieve longer single-bit run times, reduce make-up and break-out operations, and improve overall drilling efficiency in extremely hard formations.
Technical Highlights
  • Suitable for hard formations to enhance drill bit life and penetration rate
  • Optimized crown geometry ensures uniform load distribution, reduces load on individual teeth, and lowers core gouging risk
  • High-performance imported PDC cutters enhance shoulder wear resistance and impact resistance for extended service life
  • Unique rear-flute design enhances durability while maintaining cutting aggressiveness
Applicable Operating Conditions
Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
