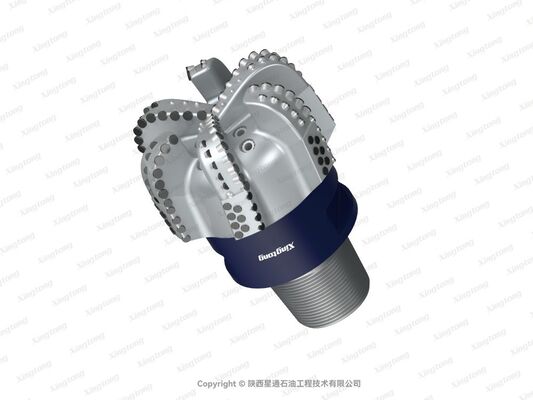

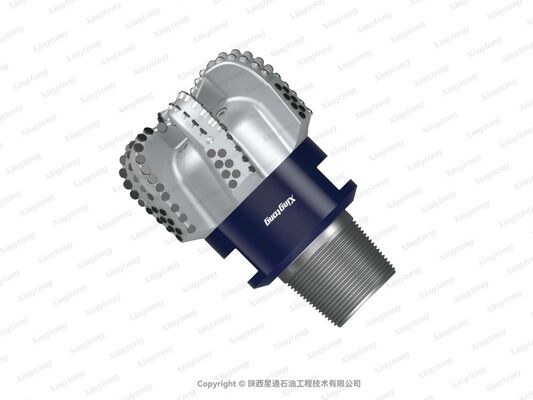

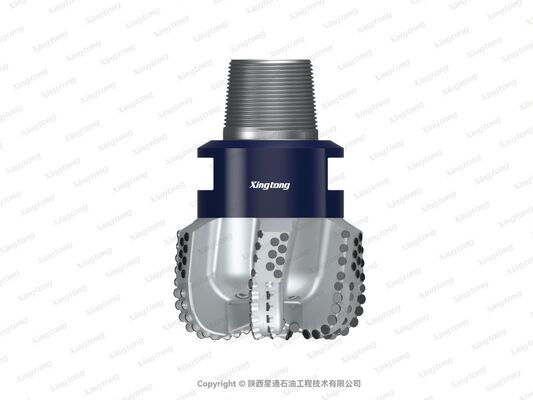

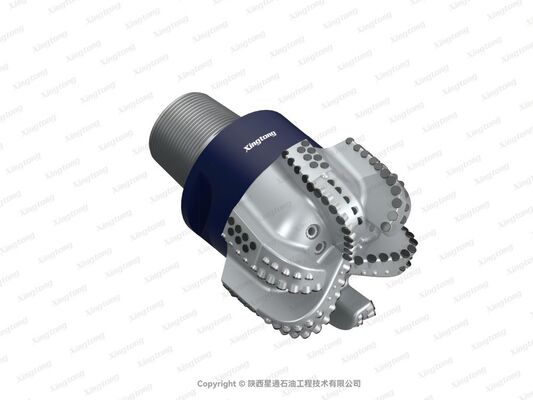

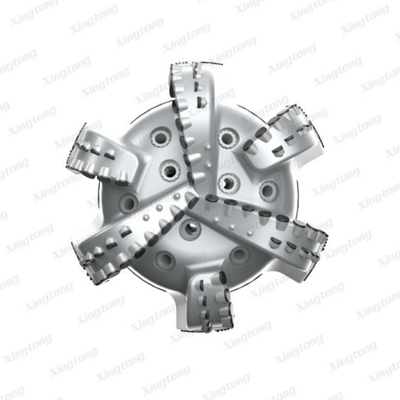

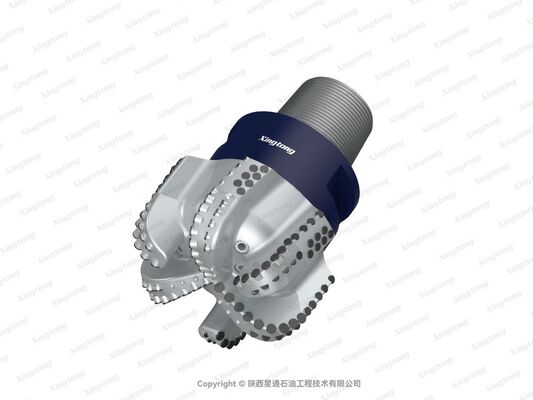

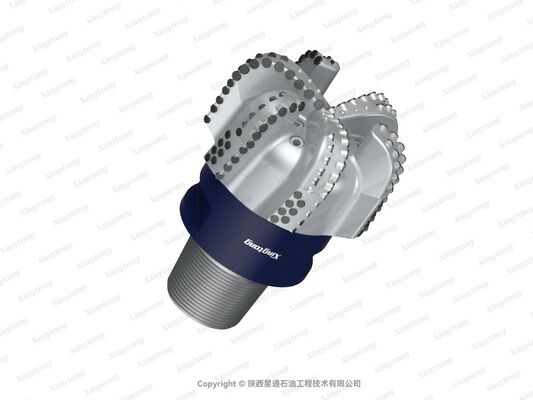

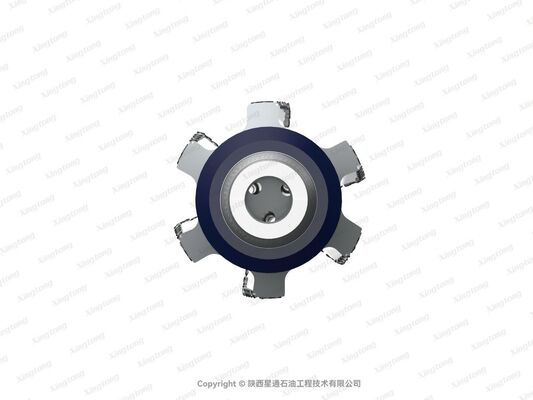

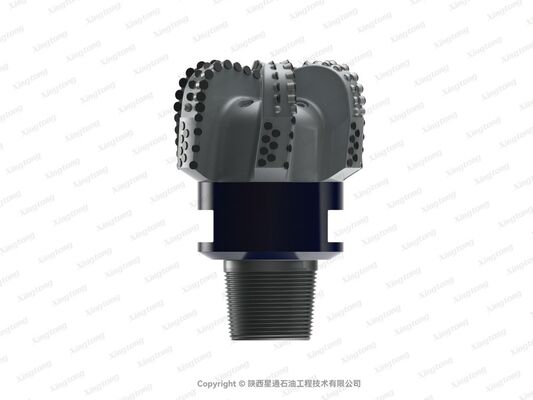

8 1/2 XH S 6165 AB(24003) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
8 1/2 XH S 6165 AB(24003) PDC Drill Bit with GI Cutter Grade and Steel Body for Hard Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
8 1/2 XH S 6165 AB(24003)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 8 1/2 XH S 6165 AB(24003) Product Positioning The XH series represents Xingtong's high-durability drill bit lineup specifically engineered for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration ...
Product Custom Attributes
Highlight
PDC drill bit 8 1/2 XH
,Xingtong PDC drill bit S 6165
,PDC drill bit with warranty
Cutter Grade:
GI
IADC Code:
S322
Body Type:
STEEL
Face:
50
Gauge:
42
Updrill:
6
Nozzle Type & Count:
M*6
Chip Removal Groove Area Ratio:
51.1%
API Connection:
4-1/2REG
Make-Up TQ:
17.0-26.4KN.m
Gauge Length:
80mm
Make-Up Length:
307mm
Approximate Shipping Weight:
42kg
Recommended Weight On Bit（Maximum Acceptable）:
14-16T（133T）
Total Flow Area:
582mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 8 1/2 XH S 6165 AB(24003)
Product Positioning
The XH series represents Xingtong's high-durability drill bit lineup specifically engineered for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, this series incorporates enhanced wear-resistant materials and optimized structural design to achieve longer single-bit run times, reduce make-up and break-out operations, and improve overall drilling efficiency in extremely hard formations.
Technical Highlights
- Suitable for hard formations to enhance drill bit life and penetration rate
- Optimized crown geometry ensures more uniform load distribution, reduces load on individual teeth in the tooth root, and lowers the risk of core gouging
- High-performance imported PDC cutters enhance shoulder wear resistance and impact resistance, extending overall service life
- Unique rear-flute design enhances drill-bit durability while maintaining cutting aggressiveness
Applicable Operating Conditions
Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
