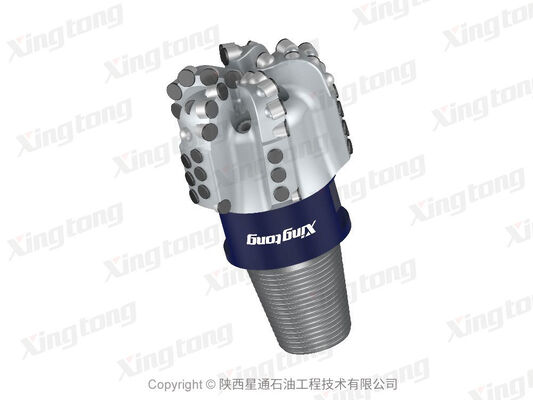

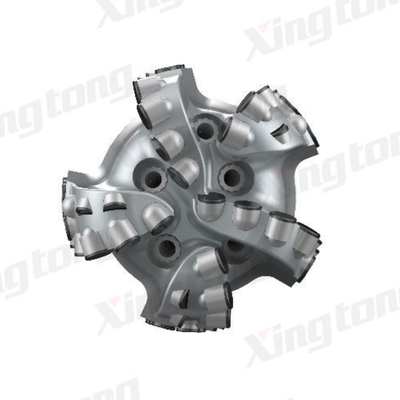

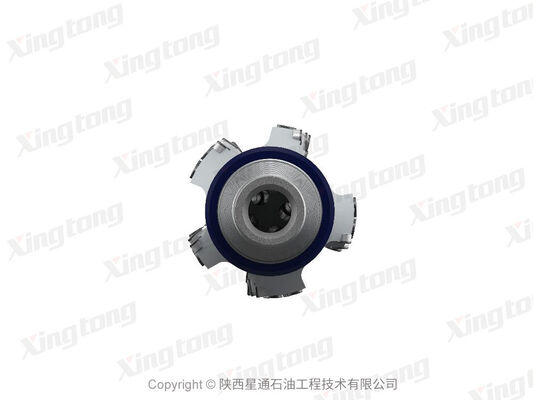

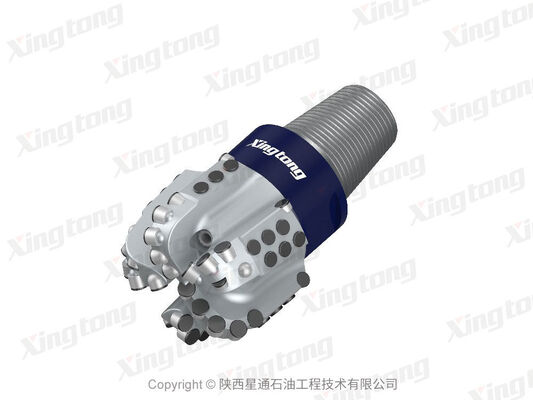

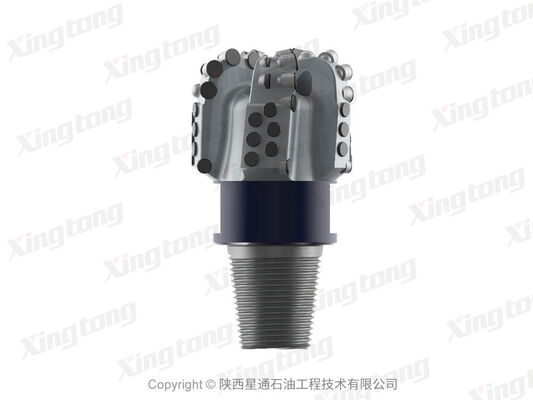

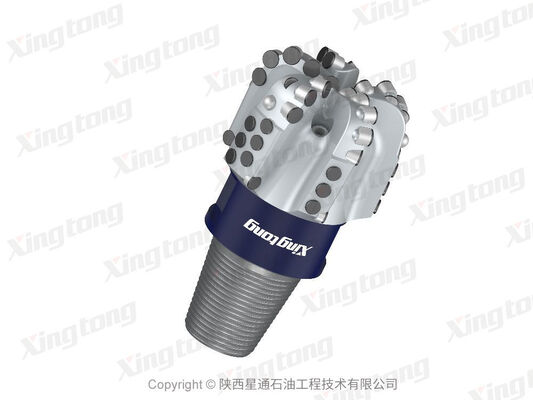

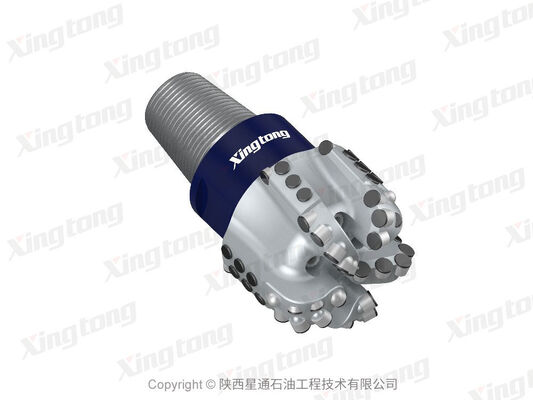

6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design

  • 6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design
  • 6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design
  • 6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design
  • 6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design
  • 6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design
  • 6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design
  • 6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design
  • 6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design
  • 6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design
  • 6 XD S 5168 AS(24014) 6 Inch Steel Body PDC Drill Bit for Directional Drilling with Ultra-Short Design
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 6 XD S 5168 AS(24014)
Document 6 XD S 5168 AS(24014).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S423
Body Type STEEL Face 26
Gauge 24 Updrill 5
Nozzle Type & Count M*5 Chip Removal Groove Area Ratio 64.7%
API Connection 3-1/2REG Make-Up TQ 7.1-11.5KN.m
Gauge Length 48mm Make-Up Length 179mm
Approximate Shipping Weight 18kg Recommended Weight On Bit（Maximum Acceptable） 10-12T （78T）
Total Flow Area 485mm^2
Highlight

PDC drill bit with warranty

,

Xingtong PDC drill bit

,

6 XD S 5168 drill bit
Leave a Message
Product Description
Xingtong Drill Bit 6 XD S 5168 AS(24014)
Product Positioning

The XD series drill bits are directional drilling tools engineered to meet the rigorous demands of various directional well applications, including coalbed methane drainage directional wells and oil horizontal wells. Incorporating advanced drill-bit design concepts with specialized structural and material optimization, the XD series delivers highly efficient rock-breaking performance even under complex wellbore trajectory conditions.

Technical Highlights
  • Suitable for use with rotary steerable systems to increase build rate, or with screw motors to enhance directional drilling efficiency
  • Ultra-short body design reduces effective make-up length by 40% compared to conventional drill bits, significantly enhancing deviation-control capability
  • Unique detent-tooth design ensures excellent tool-face stability even under enhanced weight-on-bit during directional sliding
  • Maximum build rate when used with bent sub: ≥30°/30 m
  • Maximum build rate when used with rotary steerable system: ≥15°/30 m
Applicable Operating Conditions

The XD directional series is specifically designed for critical drilling sections such as build-up and horizontal sections of directional wells. It can be effectively used in conjunction with downhole screw motors and other directional tools. In demanding applications including coal mine gas drainage boreholes and highly challenging, long-reach wells, this drill bit series has consistently demonstrated outstanding performance, achieving superior single-trip penetration and rapid rates of penetration.
