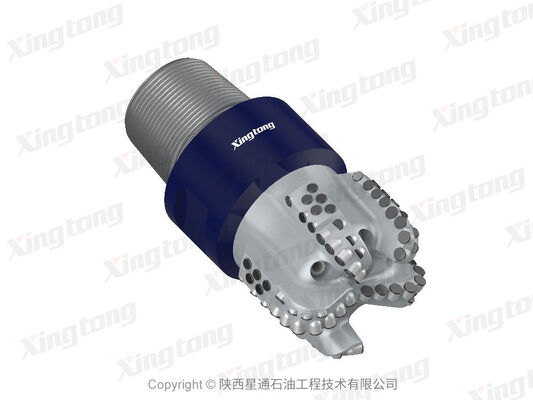

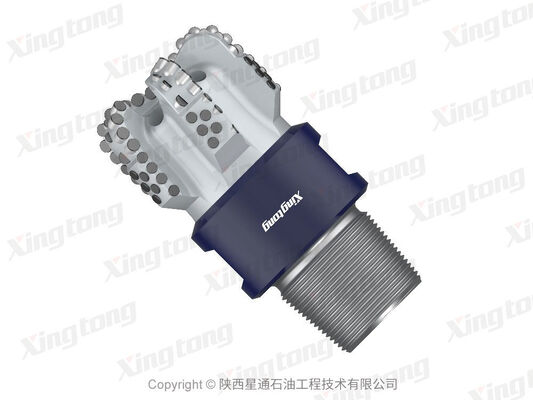

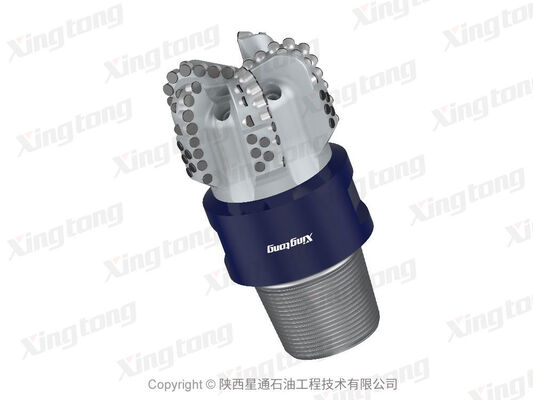

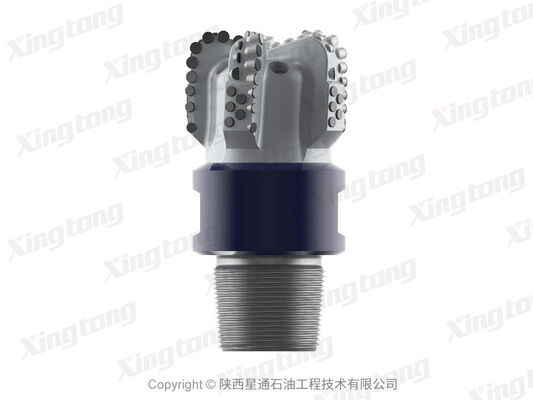

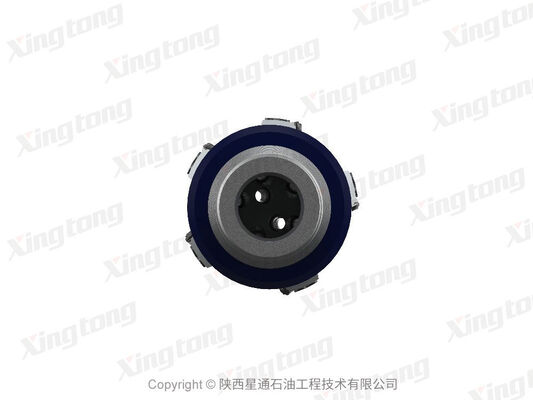

XHR S 5166 AB (24016) PDC Drill Bit 8 1/2 Size for High-RPM Drilling in Soft Formations
XHR S 5166 AB (24016) PDC Drill Bit 8 1/2 Size for High-RPM Drilling in Soft Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
8 1/2 XHR S 5166 AB(24016)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 8 1/2 XHR S 5166 AB(24016) Product Positioning The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and ...
Product Custom Attributes
Highlight
PDC drill bit 8 1/2 XHR S
,Xingtong PDC drill bit with warranty
,5166 AB PDC drill bit
Cutter Grade:
GI
IADC Code:
S223
Body Type:
STEEL
Face:
39
Gauge:
37
Updrill:
5
Nozzle Type & Count:
M*7
Chip Removal Groove Area Ratio:
66.6%
API Connection:
4-1/2REG
Make-Up TQ:
17.0-26.4KN.m
Gauge Length:
55mm
Make-Up Length:
292mm
Approximate Shipping Weight:
42kg
Recommended Weight On Bit（Maximum Acceptable）:
14-16T（133T）
Total Flow Area:
679mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 8 1/2 XHR S 5166 AB(24016)
Product Positioning
The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, resulting in significantly increased drilling speeds.
Technical Highlights
- Specifically engineered for high-speed drilling applications in soft formations
- Hybrid matrix cutting teeth with optimized irregular geometry enhance rock-breaking efficiency while accelerating cuttings transport velocity
- CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed drilling operations
- High-strength steel body construction allows for thinner cutter blade thickness, preventing interference at the blade rear during high mechanical drilling rates
Applicable Operating Conditions
Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. This drill bit is specifically designed to achieve the highest possible mechanical drilling rate in target formations.
