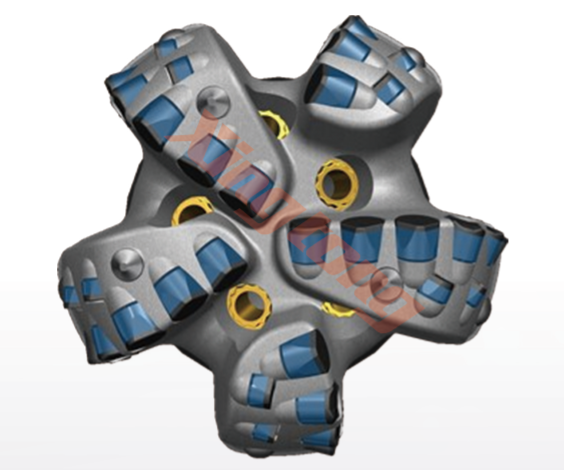

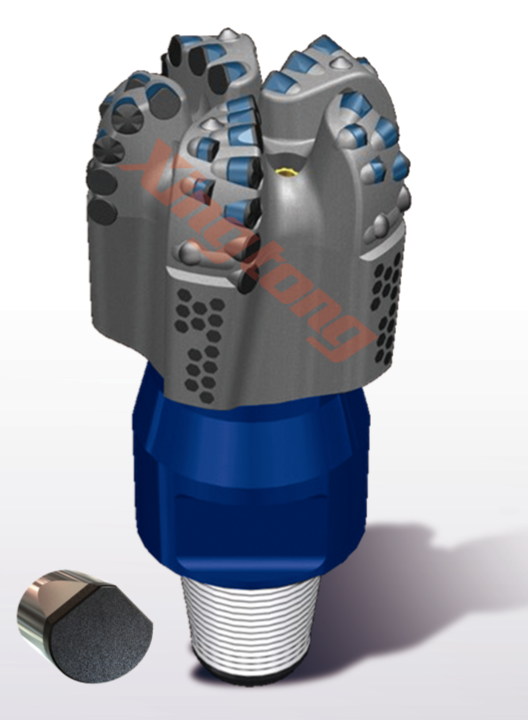

6.5in 165.1mm PDC Drill Bit for Super Hard Formations with 38 Cutter Count Diamond Drill Bit

  • 6.5in 165.1mm PDC Drill Bit for Super Hard Formations with 38 Cutter Count Diamond Drill Bit
  • 6.5in 165.1mm PDC Drill Bit for Super Hard Formations with 38 Cutter Count Diamond Drill Bit
  • 6.5in 165.1mm PDC Drill Bit for Super Hard Formations with 38 Cutter Count Diamond Drill Bit
Place of Origin CHINA
Brand Name XINGTONG
Certification API 、ISO 9001
Model Number 6.5″ 165.1mm XH 5164
Minimum Order Quantity 1 Piece（MOQ）
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization.
Product Details
Cutter Type GI IADC Code S324
Body Type STEEL Total Cutter Count 38
Face 20+10 Gauge 8
Nozzle Type & Count M*5 Junk Slot Area (sq Mm) 5677
Normalized Face Volume 46.78% API Connection 3-1/2 REG.pin
Make-Up TQ 7-10KN.m Gauge Length 76mm
Make-Up Length 407mm Approximate Shipping Weight 50kg
Highlight

6.5in PDC Drill Bit

,

PDC Drill Bit 165.1mm

,

diamond drill bit oil and gas
Leave a Message
Product Description
6.5in PDC Drill Bit 165.1mm Diamond Drill Bit Oil And Gas
PDC Drill Bits 6.5″ 165.1mm XH 5164 (Rigid Body) for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC were put on shoulder to improve wear and impact resistance
  • Special backup cutter layout to improve bit durability while maintaining bit aggression
Product Features
  • 0.8mm Relieved Gauge
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • Drop In Cutters on Gauge Pads
  • Radius Hex TSP on Gauge Pads
  • 4D shaped cutter
Important Notes:
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
