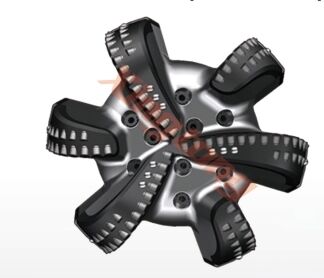

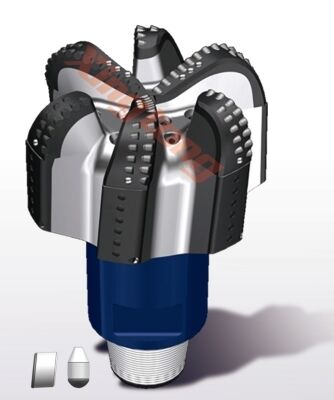

PDC Drill Bit 17-1/2″ (444mm) XH 6163ML for Extremely Hard Strata Polycrystalline Diamond Compact Drill Bit
PDC Drill Bit 17-1/2″ (444mm) XH 6163ML for Extremely Hard Strata Polycrystalline Diamond Compact Drill Bit
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
17-1/2″ (444mm) XH 6163ML
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
Designed for extremely hard formations, the XH6163ML 17-1/2" PDC bit features an optimized profile, dual-row cutting structure and reinforced cutters for improved durability, wear resistance and stable drilling performance.
Product Custom Attributes
Highlight
17 - 1/2inch pdc rock bit
,pdc rock bit 444mm
,103 Cutters polycrystalline diamond bit
Cutter Type:
GII
IADC Code:
S223
Body Type:
STEEL
Total Cutter Count:
103
Face:
31+60
Gauge:
6
Updrill:
6
Nozzle Type & Count:
L*9
Junk Slot Area (sq Mm):
53716
Normalized Face Volume:
28.51%
API Connection:
7-5/8 REG.pin
Make-Up TQ:
65-93KN.m
Gauge Length:
152mm
Make-Up Length:
721mm
Approximate Shipping Weight:
554kg
Product Description
Detailed Specifications & Features
PDC Drill Bit 17-1/2″ (444mm) XH 6163ML For Extremely Hard Strata
XH Series Features
- Suitable for increasing durability and footage
- Optimized profile makes load distribution more even to reduce the risk of ring out
- High quality PDC cutters on shoulder to improve wear and impact resistance
- Special backup cutter layout to improve bit durability while maintaining bit aggression
Product Features
- 0.8mm Relieved Gauge
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- 4D shaped cutter
Important Notes
- Recommended top-buckle torque is set according to inner and outer diameter of the joint, with reference to API7G
- Technical performance of drill bits sold by Xingtong will be fully implemented according to terms agreed with customer
- Pictures are for reference only - please contact Skycom engineers for detailed technical parameters
