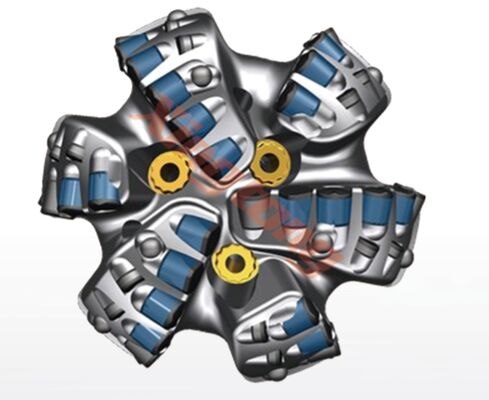

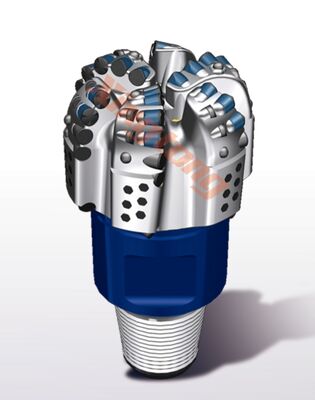

6 Inch 152.4mm PDC Drill Bit for Super Hard Formations with 49 Cutter Count
6 Inch 152.4mm PDC Drill Bit for Super Hard Formations with 49 Cutter Count
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
6 ″ 152.4mm XH 6164DAK
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
6" (152.4mm) XH 6164DAK PDC drill bit designed for oil drilling in super-hard formations. Optimized profile, dual-row cutting structure, 4D shaped cutters and impact arrestors enhance wear resistance, impact resistance and overall bit durability.
Product Custom Attributes
Highlight
pdc diamond bit 6 inch
,152.4mm polycrystalline diamond compact bits
,pdc bit M3 Nozzle
Cutter Type:
GI
IADC Code:
S434
Body Type:
STEEL
Total Cutter Count:
49
Face:
41
Gaug:
8
Nozzle Type & Count:
M*3
Junk Slot Area (sq Mm):
3787
Normalized Face Volume:
39.8%
API Connection:
3-1/2 REG.pin
Make-Up TQ:
7-10KN.m
Gauge Length:
51mm
Make-Up Length:
386mm
Approximate Shipping Weight:
46kg
Product Description
Detailed Specifications & Features
ODM PDC Diamond Bit 6 Inch 152.4mm Oil Drilling Polycrystalline Diamond Compact Bits
Product Overview
PDC Drill Bits 6″ 152.4mm XH 6164DAK for Oil Drilling in Super Hard Formations
XH Series Features
- Suitable for increasing durability and footage
- Optimized profile makes load distribution more even to reduce the risk of ring out
- High quality PDC positioned on shoulder to improve wear and impact resistance
- Special backup cutter layout improves bit durability while maintaining aggression
Product Specifications
- 0.8mm Relieved Gauge
- Dual row cutting structure
- Drop In Cutters on Gauge Pads
- 4D shaped cutter
- Impact arrestors
Important Notes:
• The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
• The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
• The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
• The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
• The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
• The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
