6.5″ 165.1mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure

  • 6.5″ 165.1mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
  • 6.5″ 165.1mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
  • 6.5″ 165.1mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
Place of Origin CHINA
Brand Name XINGTONG
Certification API 、ISO 9001
Model Number 6 1/2″ 165.1mm XH 5165
Minimum Order Quantity 1 Piece（MOQ）
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization.
Product Details
Cutter Type GI IADC Code S425
Body Type STEEL Total Cutter Count 38
Face 20+10 Gauge 8
Nozzle Type & Count M*5 Junk Slot Area (sq Mm) 5677
Normalized Face Volume 48.2% API Connection 3-1/2 REG.pin
Make-Up TQ 7-10KN.m Gauge Length 76mm
Make-Up Length 392mm Approximate Shipping Weight 50kg
Highlight

Super Hard Formations rock drill bit

,

8 Gauge rock drill bit

,

76mm polycrystalline diamond compact drill bits
Leave a Message
Product Description

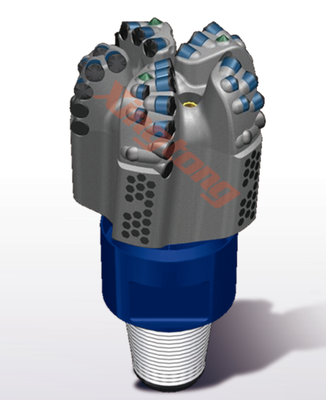

Super Hard Formations Rock Drill Bit Rigid Body Polycrystalline Diamond Compact Drill Bits
PDC Drill Bits 6.5″ 165.1mm XH 5165 (Rigid Body) for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC placed on shoulder to improve wear and impact resistance
  • Special backup cutter layout improves bit durability while maintaining aggression
Product Features
  • 0.8mm Relieved Gauge
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter
  • Drop In Cutters on Gauge Pads
  • Radius Hex TSP on Gauge pads
Important Notes

The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.

The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.

The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters.
