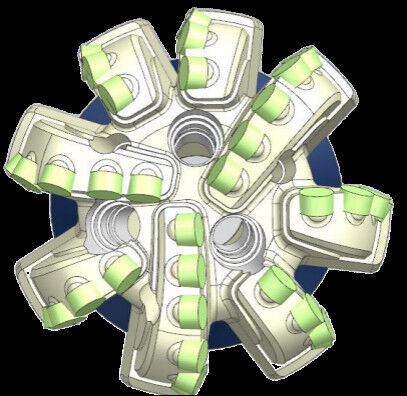

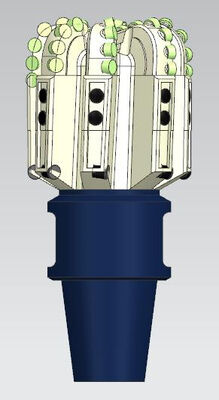

6in PDC Drill Bit 152.4mm XH 816LD 64 Cutters Oil Drilling Bit
| Place of Origin | China |
|---|---|
| Brand Name | XINGTONG DRILL BIT |
| Certification | API 、ISO 9001 |
| Model Number | 6″ 152.4mm XH 816LD |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GI | IADC Code | S434 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 64 |
| Face | 40 | Gauge | 16 |
| Updril | 8 | Nozzle Type & Count | M*3+N*3 |
| Junk Slot Area (sq Mm) | 4977 | Normalized Face Volume | 28% |
| API Connection | 3-1/2 REG | Make-Up TQ | 7-10KN.m |
| Gauge Length | 85mm | Make-Up Length | 239mm |
| Approximate Shipping Weight | 24kg | WOB | 8-18 Ton |
| Total Rotary Speed | 80~200rpm | Flow Rate | 20-40L/s |
| Highlight | 6in PDC Drill Bit,PDC Drill Bit 152.4mm,64 Cutters oil drilling bit |
||
Product Description
PDC Drill Bits 6″ 152.4mm XH 816LD for Oil Drilling in Super Hard Formations
Product Specifications
| Attribute | Value |
|---|---|
| Cutter Type | GI |
| IADC code | S434 |
| Body type | STEEL |
| Total Cutter Count | 64 |
| Face | 40 |
| Gauge | 16 |
| Updril | 8 |
| Nozzle type & count | M*3+N*3 |
| Junk slot area (sq mm) | 4977 |
| Normalized Face Volume | 28% |
| API Connection | 3-1/2 REG |
| Make-Up TQ | 7-10KN.m |
| Gauge Length | 85mm |
| Make-Up Length | 239mm |
| Approximate Shipping Weight | 24kg |
| WOB | 8-18 ton |
| Total Rotary Speed | 80~200rpm |
| Flow Rate | 20-40L/s |
XH Series Features
- Suitable for increasing durability and footage in super hard formations
- Optimized profile ensures even load distribution to reduce ring out risk
- High quality PDC cutters on shoulder for improved wear and impact resistance
- Special backup cutter layout enhances bit durability while maintaining aggression
Product Features
- 0.8mm Relieved Gauge design
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- 4D shaped cutter configuration
- Drop In Cutters on Gauge Pads
Note: The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G. The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer. The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
