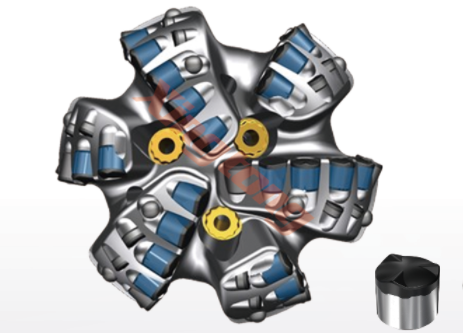

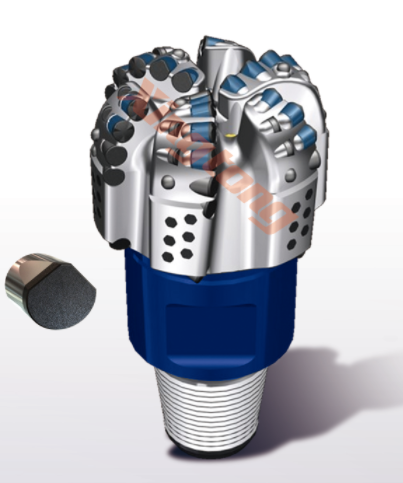

S432 Steel PDC Drill Bit Impact Resistant GI Cutter Oil Well Drill Bit
| Place of Origin | China |
|---|---|
| Brand Name | XINGTONG DRILL BIT |
| Certification | API 、ISO 9001 |
| Model Number | 6 ″ 152.4mm XH 6164DMH |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GI | IADC Code | S432 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 43 |
| Face | 32 | Gauge | 5 |
| Updril | 6 | Nozzle Type & Count | M*3 |
| Junk Slot Area (sq Mm) | 3754 | Normalized Face Volume | 44.4% |
| API Connection | 3-1/2 REG.pin | Make-Up TQ | 7-10KN.m |
| Gauge Length | 51mm | Make-Up Length | 380mm |
| Approximate Shipping Weight | 46kg | ||
| Highlight | S432 steel PDC Drill Bit,PDC Drill Bit impact resistant,GI Cutter oil well drill bit |
||
Product Description
6″ 152.4mm XH 61640 DMH PDC Drill Bits - Ideal for Super Hard Formation Oil Drilling Operations
Product Specifications
| Attribute | Value |
|---|---|
| Cutter Type | GI |
| IADC code | S432 |
| Body type | STEEL |
| Total Cutter Count | 43 |
| Face | 32 |
| Gauge | 5 |
| Updril | 6 |
| Nozzle type & count | M*3 |
| Junk slot area (sq mm) | 3754 |
| Normalized Face Volume | 44.4% |
| API Connection | 3-1/2 REG.pin |
| Make-Up TQ | 7-10KN.m |
| Gauge Length | 51mm |
| Make-Up Length | 380mm |
| Approximate Shipping Weight | 46kg |
XH Series Features
- Suitable for increasing durability and footage in demanding drilling conditions
- Optimized profile ensures even load distribution to reduce ring out risk
- High quality PDC cutters on shoulder for enhanced wear and impact resistance
- Special backup cutter layout improves bit durability while maintaining aggression
Product Features
- 0.8mm Relieved Gauge design
- Dual row cutting structure for efficient performance
- Drop In Cutters on Gauge Pads
- 4D shaped cutter configuration
Important Notes:
• Recommended top-buckle torque follows API7G standards based on joint dimensions
• All technical performance specifications are guaranteed as per customer agreements
• Product images are for reference only - contact Skycom engineers for detailed technical parameters
• Recommended top-buckle torque follows API7G standards based on joint dimensions
• All technical performance specifications are guaranteed as per customer agreements
• Product images are for reference only - contact Skycom engineers for detailed technical parameters
