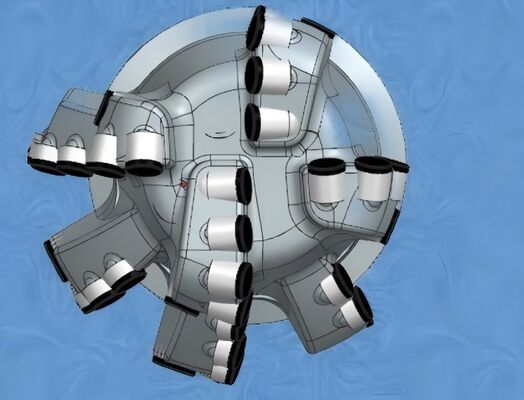

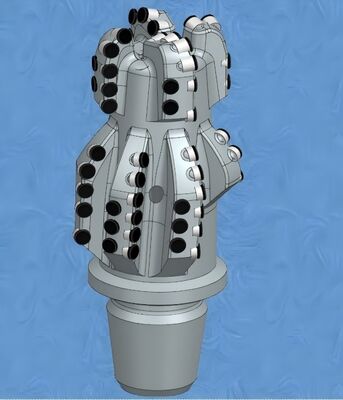

PDC Rock Bit HDD Drill Bit with Eccentric Reaming 156mm Dilated Hole Diameter and GII Cutter Type for Granite Rock
PDC Rock Bit HDD Drill Bit with Eccentric Reaming 156mm Dilated Hole Diameter and GII Cutter Type for Granite Rock
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
114/142/156mm Eccentric Reaming HDD Rock Bits Drill Bit For Granite Rock PDC High-Speed Casing Running & Reaming Bit | Polycrystalline Diamond Compact for Oilfield Drilling XSK Series Features Reading-while-Drilling Tool: Eccentric-body design (pilot/reamer ratio: 1.2-1.5) Mechanical auto-centering ...
Product Custom Attributes
Highlight
142mm hdd rock bits
,156mm hdd rock bits
,GII drill bit for granite rock
Cutter Type:
GII
Body Type:
STEEL Body
Total Cutter Count:
56
Face:
33
Gauge:
24
Pathway:
142mm
Nozzle Type & Count:
M*4+4
Junk Slot Area (sq Mm):
11540
Normalized Face Volume:
76%
API Connection:
3-1/2 REG.pin
Make-Up TQ:
7-10KN.m
Dilated Hole Diameter:
156mm
Make-Up Length:
242mm
Approximate Shipping Weight:
20kg
Product Description
Detailed Specifications & Features
114/142/156mm Eccentric Reaming HDD Rock Bits Drill Bit For Granite Rock
PDC High-Speed Casing Running & Reaming Bit | Polycrystalline Diamond Compact for Oilfield Drilling
XSK Series Features
- Reading-while-Drilling Tool: Eccentric-body design (pilot/reamer ratio: 1.2-1.5)
- Mechanical auto-centering mechanism
Note
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
