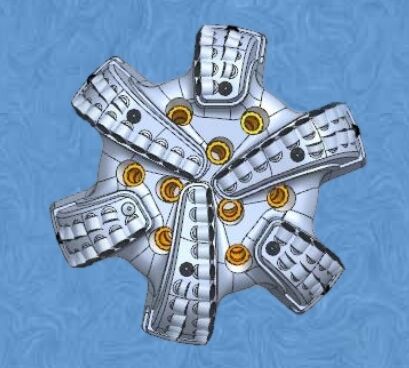

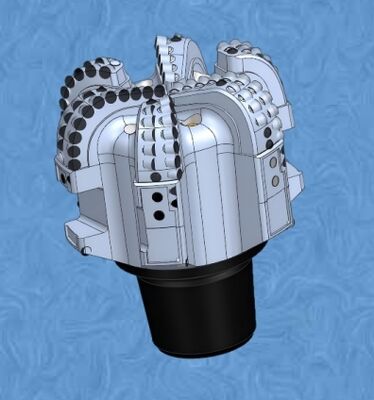

Steel Body Six-Blade 12 1/4″ 311mm Directional PDC Drill Bit for Oil & Gas Well Drilling
Steel Body Six-Blade 12 1/4″ 311mm Directional PDC Drill Bit for Oil & Gas Well Drilling
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
12 1/4″ 311mm XD 6164BDR
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
Steel Body Six-Blade 12 1/4″ 311mm XD 6164BD BMR PDC Oil & Gas Well Drilling Bit (Petroleum & Natural Gas Drilling Tool) XD Series Features Suitable for improving the steerability and overall drilling efficiency for both RSS and bent motor Shank-less design reduces make-up length by 40% compared to ...
Product Custom Attributes
Highlight
12 1/4in Directional Drill Bits
,Directional Drill Bits 311mm
,Short Body pdc drilling bits
Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL Body
Total Cutter Count:
106
Face:
80
Gauge:
20
Updrill:
6
Nozzle Type & Count:
L*9
Junk Slot Area (sq Mm):
26974
Normalized Face Volume:
60.77%
API Connection:
6-5/8 REG.pin
Make-Up TQ:
50-59KN.m
Gauge Length:
111mm
Make-Up Length:
251mm
Approximate Shipping Weight:
126kg
Product Description
Detailed Specifications & Features
Steel Body Six-Blade 12 1/4″ 311mm XD 6164BD BMR PDC Oil & Gas Well Drilling Bit (Petroleum & Natural Gas Drilling Tool)
XD Series Features
- Suitable for improving the steerability and overall drilling efficiency for both RSS and bent motor
- Shank-less design reduces make-up length by 40% compared to conventional bits, significantly improving steerability
- Unique depth of cut control design provides excellent tool face control, even with higher than normal WOB conditions
- Maximum DLS ≥30°/30m when drilling with bent motor
- Maximum DLS ≥15°/30m when drilling with RSS
Product Features
- 1-Piece Bit construction
- 0.8mm Relieved Gauge
- 1.6mm Stepped Gauge
- Up-Drill Cutters on Gauge Pads
- 4D Sharpe cutter technology
Important Notes
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G standards.
The technical performance of drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
Product images are for reference only. Please contact Skycom engineers for detailed technical parameters and specifications.
