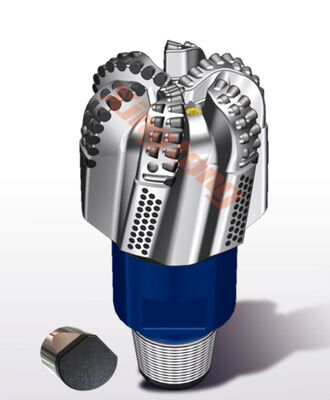

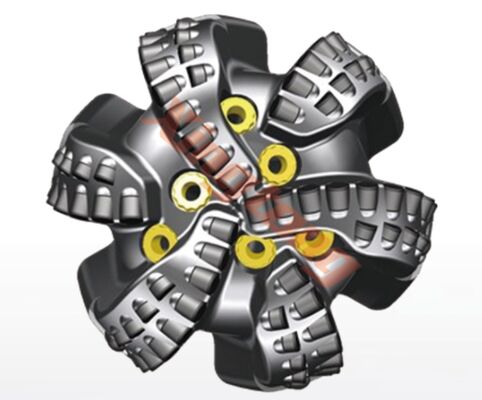

Rigid Body PDC Drill Bit 8 3/4″222mm XH 6164ML Model for Super Hard Formation Oil Drilling

Rigid Body PDC Drill Bit 8 3/4″222mm XH 6164ML Model for Super Hard Formation Oil Drilling
Basic Properties
Place of Origin: CHINA
Brand Name: XINGTONG
Certification: API 、ISO 9001
Model Number: 8 3/4″222mm XH 6164ML
Trading Properties
Minimum Order Quantity: 1 Piece（MOQ）
Price: Negotiable
Payment Terms: L/C,D/P,T/T
Supply Ability: Stable supply and support for bulk customization.
Tags:

rock drill bit

pdc core bit

pdc diamond bit
Product Summary
8-3/4" (222mm) XH 6164ML rigid-body PDC drill bit for super-hard formations. Optimized profile, premium shoulder cutters, dual-row cutting structure and 1.6mm stepped gauge improve wear resistance, impact resistance, drilling stability and bit life.
Product Custom Attributes
Highlight

222mm pdc rock bit

,

222mm pdc drill bit

,

rigid body pdc rock bit

Cutter Type:
GI
IADC Code:
S434
Body Type:
STEEL
Total Cutter Count:
76
Face:
62
Gauge:
14
Nozzle Type & Count:
L*6
Junk Slot Area (sq Mm):
10548
Normalized Face Volume:
Normalized Face Volume
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
102mm
Make-Up Length:
516mm
Approximate Shipping Weight:
96kg
Product Description
Detailed Specifications & Features
Rigid Body PDC Drill Bits – 8 3/4″ (222mm) XH 6164ML Model for Super Hard Formation Oil Drilling
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC cutters on shoulder to improve wear and impact resistance
  • Special backup cutter layout improves bit durability while maintaining aggression
Product Features
  • 1.6mm Stepped Gauge
  • Dual row cutting structure
  • Drop In Cutters on Gauge Pads
Important Notes
  • Recommended top-buckle torque is set according to joint inner and outer diameter, with reference to API7G
  • Technical performance fully implemented according to terms agreed between Xingtong and customer
  • Pictures are for reference only - contact Skycom engineers for detailed technical parameters
