15 1/2in Tricone Rock Drill Bits with 80 Cutters for Soft Formations
15 1/2in Tricone Rock Drill Bits with 80 Cutters for Soft Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
15 1/2″ 394mm XHR 6163MK
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,,T/T
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
15 1/2in Tricone Rock Drill Bits 394mm 80 Cutter Soft Formations PDC Drill Bits 15 1/2″ 394mm XHR 6163MK for High-Speed Drilling in Soft Formations XHR Series Features Suitable for improving ROP in soft formation Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings ...
Product Custom Attributes
Highlight
15 1/2in Tricone Rock Drill Bits
,Tricone Rock Drill Bits 394mm
,80 Cutter pdc core drill bits
Cutter Type:
GII
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
80
Face:
21+59
Gauge:
5
Updrill:
6
Nozzle Type & Count:
L*9
Junk Slot Area (sq Mm):
41800
Normalized Face Volume:
70.43%
API Connection:
6-5/8 REG.pin
Make-Up TQ:
50-59KN.m
Gauge Length:
102mm
Make-Up Length:
593mm
Approximate Shipping Weight:
362kg
Product Description
Detailed Specifications & Features
15 1/2in Tricone Rock Drill Bits 394mm 80 Cutter Soft Formations

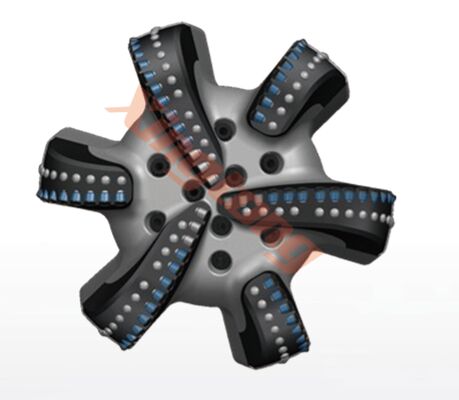

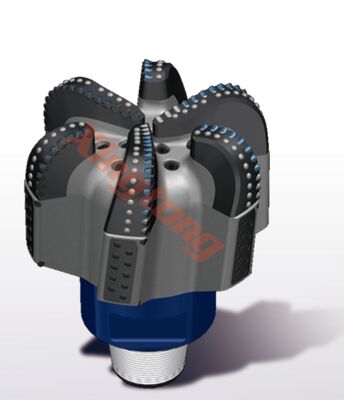

PDC Drill Bits 15 1/2″ 394mm XHR 6163MK for High-Speed Drilling in Soft Formations
XHR Series Features
- Suitable for improving ROP in soft formation
- Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing
- Optimize nozzles and junk slot design by using CFD to speed up cutting moving
- The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP
Product Features
- 0.8mm Relieved Gauge
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- 4D shaped cutter
Important Notes
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
