Cast Steel Manifold Oilfield Leakproof Heat Treatment High Pressure Safety Valve
| Place of Origin | China |
|---|---|
| Brand Name | XINGTONG |
| Certification | ISO 9001:2000 |
| Model Number | Safety Relief Valve |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Wooden case packaging, customized according to size; 1 piece per case for large elbows |
| Delivery Time | 5 - 8 work days after paymen |
| Payment Terms | ,L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Fracturing, Cementing, Acidizing, Testing Lines | Treatment Process | Metal Melting And Heat Treatment |
|---|---|---|---|
| Struture | Integrated Struture Of Metal Frame | Function | Control Fluids Flowing In One Way |
| Specification | Alloy Steel | Manufacturing Process | Metal Melting And Heat Treatment |
| Material | Alloy | Steel | Premium Alloy Steel |
| Highlight | Cast Steel Cast Steel manifold oilfield,manifold oilfield Leakproof,Heat TreatmentHigh Pressure Safety Valve |
||
Product Description

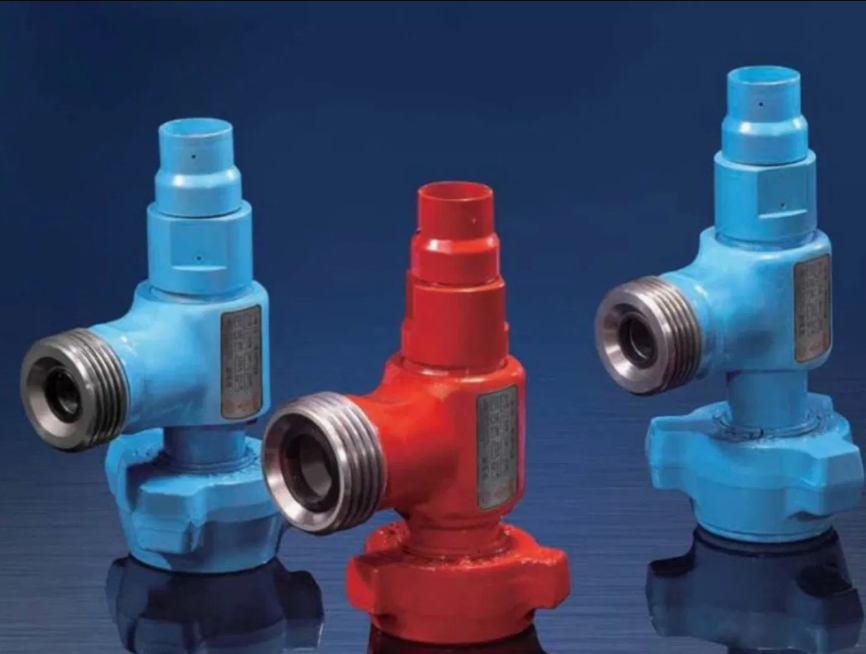

High Pressure Safety Valve for Oilfield Manifold Cast Steel
High Pressure Safety Valve for Oilfield Manifold Cast Steel
Xing tong offers a wide range of relief valve designs with various end connections, pressure ratings, and configurations needed to protect you and your equipment in the high pressure well servicing industry.
Key Features
- Simple structure and compact size
- Leak-proof under normal operating conditions

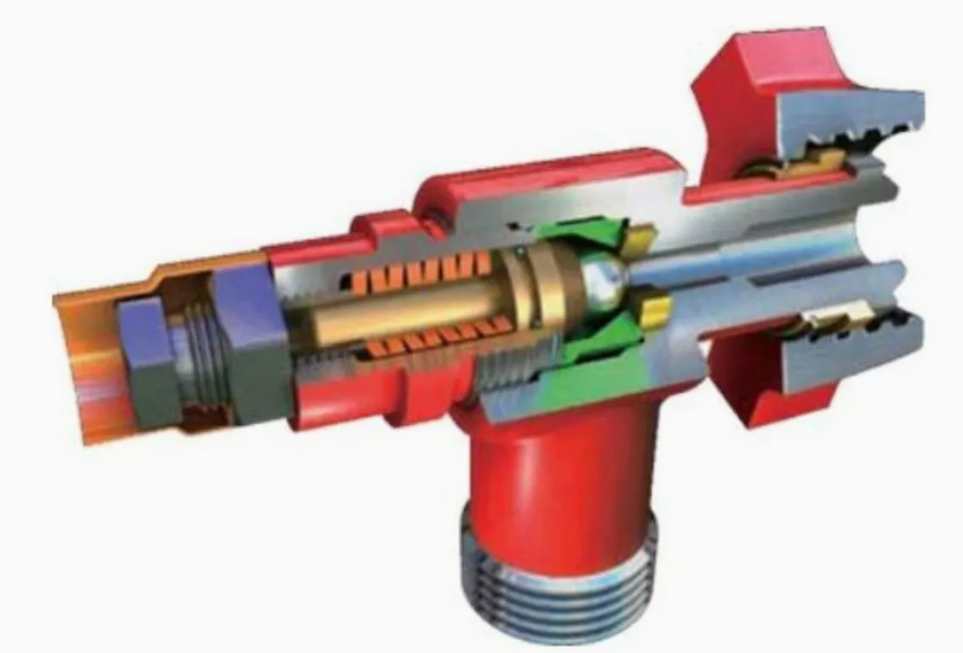

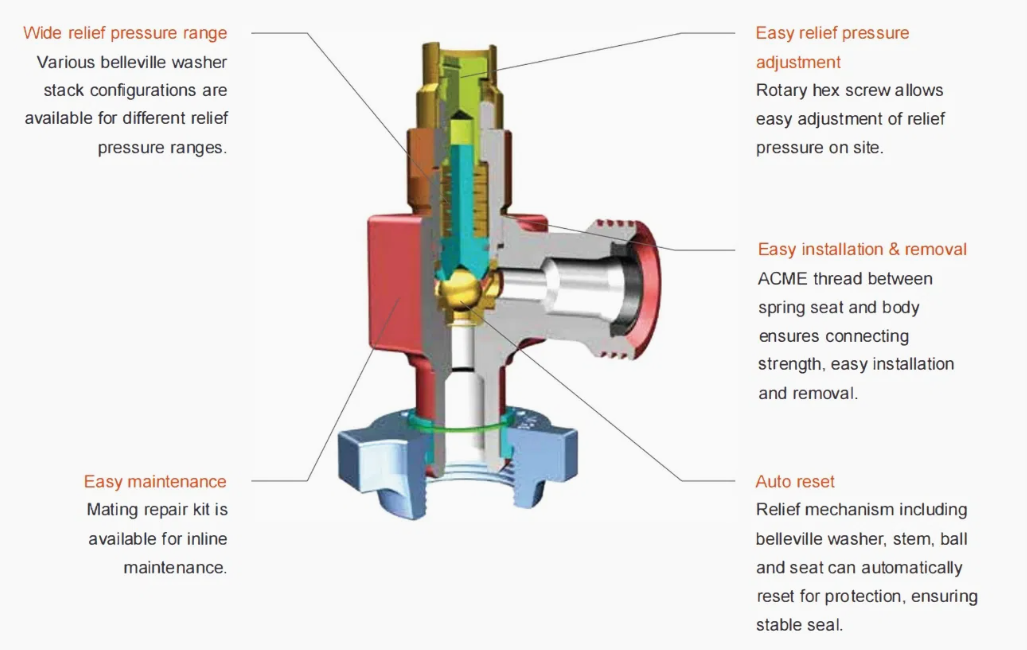

- Automatic valve operation via internal Belleville spring mechanism
- Protects equipment from overpressure damage
- No regular replacement parts required with precise stepless pressure regulation
The drilling pump is equipped with a safety valve in the outlet to maintain pressure within safe operational limits. Forged from high-quality structural alloy steel, this safety valve serves as both equipment protection and personnel safety device.
Typically installed on cementing equipment, fracturing pumps, high-pressure piping, and pressure vessels, the valve controls seat elasticity through top-mounted adjustment nuts. When system pressure exceeds preset values, the valve automatically opens to relieve pressure, then reseals when pressure normalizes.
Technical Specifications
| Name | Cold working pressure | Connection type | Buckle model |
|---|---|---|---|
| Safety valve | 42Mpa (6000psi) | Hammer Union | M*M |
| 70Mpa (10000psi) | M*F | ||
| 105Mpa (15000psi) | F*F |
Frequently Asked Questions
Q: Can I order samples of the cast steel pressure relief valve / safety valve?
A: Yes, we support sample orders for testing pressure resistance, sealing effectiveness, and manifold compatibility. Mixed-specification samples are available.
Q: What is the production and delivery lead time?
A: Samples require 7-10 days; bulk orders typically take 15-20 working days depending on specifications and quantity.
Q: Is there a minimum order quantity (MOQ)?
A: MOQ is flexible - single samples or negotiated bulk quantities are available.
Q: How are products shipped and what are delivery times?
A: Domestic shipments via express logistics (3-5 days) or dedicated land transport. International shipments via courier (5-10 days) or sea freight (port-dependent).
