API 6A Plug Oilfield High Pressure Manifold 10000psi - 20000psi Back Pressure Valve
| Place of Origin | China |
|---|---|
| Brand Name | XINGTONG |
| Certification | API |
| Model Number | Plug Valve |
| Minimum Order Quantity | 10 Pieces (MOQ) |
| Price | Negotiable |
| Packaging Details | Packaging Suitable for Long-Distance Transport, Su |
| Delivery Time | 5 - 8 work days after payment |
| Payment Terms | L/C,D/P,D/A,T/T,Western Union,MoneyGram |
| Supply Ability | 10000 Per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year Or 2000hours | Operation Pressure | 10,000psi~20,000PS |
|---|---|---|---|
| Rated Working Pressure | 10000psi-20000psi | Temperature Rating | -29•c~121·c (PU), -46°c~121 |
| Application | Fracturing, Cementing, Acidizing, Testing Lines | Treatment Process | Metal Melting And Heat Treatment |
| Struture | Integrated Struture Of Metal Frame | Transport Package | Packaging Suitable For Long-Distance Transport, Su |
| Material | Alloy | Manufacturing Process | Metal Melting And Heat Treatment |
| Nominal Size | 1", 1" X 1/2", 2", 2 X 3", 3", 4" | Repair Kits | Yes |
| Types | 5 Types Manual & Hydraulic, Electric, Handwheel | Specification | Alloy Steel |
| Highlight | API 6A Oilfield High Pressure Manifold,Oilfield Manifold 10000psi,20000psi oilfield back pressure valve |
||
Product Description
API 6A Plug Valves 10000psi-20000psi for Fracturing Cementing
Premium Plug Valves, API 6A, for Fracturing and Cementing Services
Product Specifications
| Attribute | Value |
|---|---|
| Warranty | 1 Year or 2000 hours |
| Operation Pressure | 10,000psi~20,000PS |
| Rated Working Pressure | 10000psi-20000psi |
| Temperature Rating | -29°C~121°C (PU), -46°C~121°C |
| Application | Fracturing, Cementing, Acidizing, Testing Lines |
| Material | Alloy |
| Nominal Size | 1", 1" X 1/2", 2", 2 X 3", 3", 4" |
| Types | 5 Types Manual & Hydraulic, Electric, Handwheel |
Product Description
Plug valves are essential high-pressure solutions in well services, expertly designed to regulate flow through precise plug rotation. Kytider's plug valves are renowned for their exceptional strength and superior sealing performance.
Key Features
- Premium alloy steel construction for exceptional durability
- Five operation types: manual, hydraulic, electric, handwheel, and hydraulic/manual
- Easy maintenance design allows interior inspection without pipeline dismantling
- Advanced sealing technology prevents medium leakage
- Low operation torque for effortless valve switching
- Specially treated internal components for enhanced wear resistance
Technical Parameters
| Parameter | Metric/Primary Value | Imperial/Secondary Value |
|---|---|---|
| Rated Working Pressure | 69.0MPa~138.0MPa | 10,000psi~20,000psi |
| Nominal Size | 1", 1"x2", 1 1/2", 2", 2"x3", 3", 4" | |
| Temperature Rating | -29ºC~121ºC(PU),-46ºC~121ºC(LU) | -20F~250F(PU),-50F~250F(LU) |
| Application | Fracturing, Cementing, Acidizing, Testing Lines | |
Additional Benefits
- Includes dedicated tool kit and repair kit for seamless maintenance
- Innovative seal structure with premium materials for reliable performance
- Clear open/close indicators with precise limit markers
- Advanced coating technology for superior wear and corrosion resistance

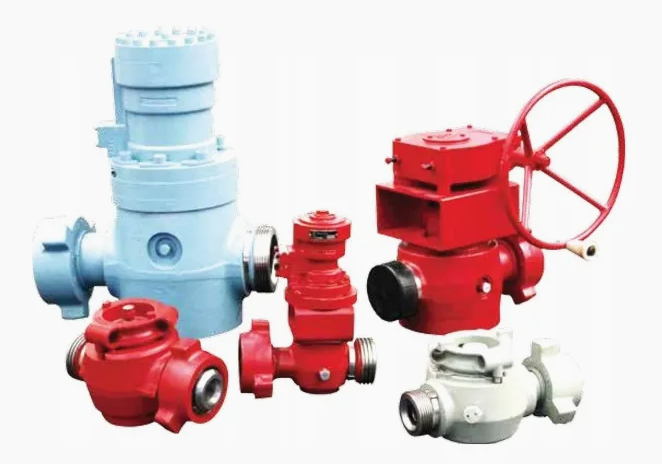

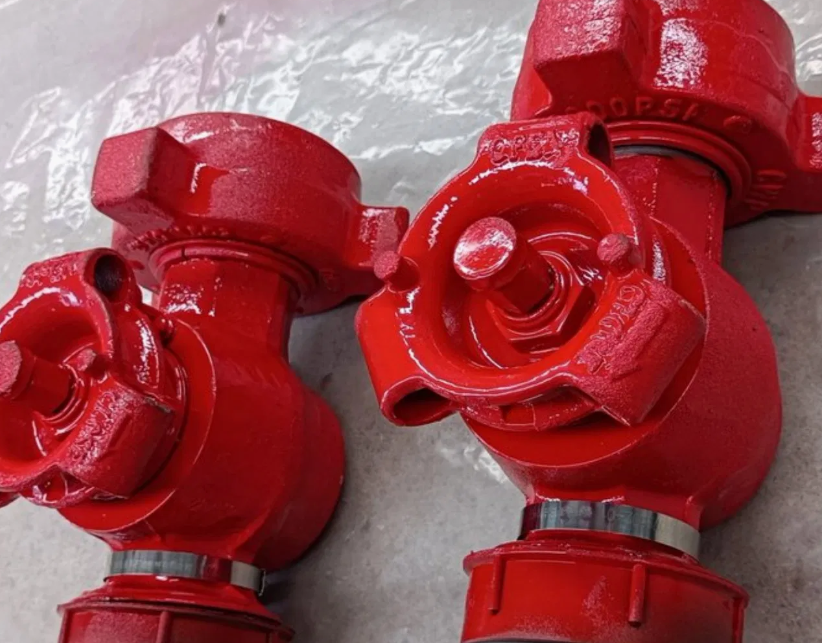

Product Gallery
