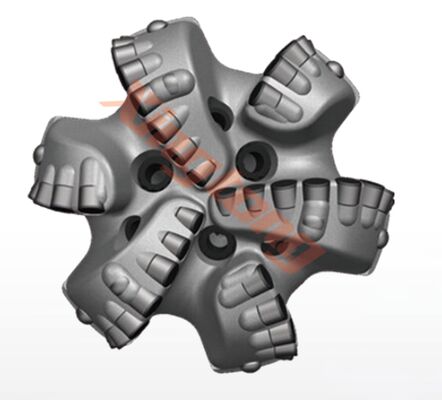

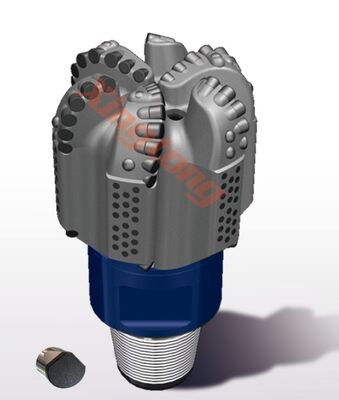

8 1/2″ 216mm PDC Drill Bit with High-Efficiency Rock Breaking and Steel Body for Optimal Performance
8 1/2″ 216mm PDC Drill Bit with High-Efficiency Rock Breaking and Steel Body for Optimal Performance
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
8 1/2″ 216mm XHR 5164D
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
PDC Drill Bits 8 1/2″ 216mm XHR 5164D – High-Efficiency Rock Breaking Series XHR Series Features Suitable for improving ROP in soft formation Optimized shaped cutter layout to improve drilling efficiency and cuttings removal Optimized nozzles and junk slot design using CFD to accelerate cutting ...
Product Custom Attributes
Highlight
216mm pdc rock bit
,216mm pdc drill bit
,steel pdc rock bit
Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
34
Face:
23
Gauge:
6
Updrill:
6
Nozzle Type & Count:
L*5
Junk Slot Area (sq Mm):
10677
Normalized Face Volume:
56.97%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
64mm
Make-Up Length:
453mm
Approximate Shipping Weight:
78kg
Product Description
Detailed Specifications & Features
PDC Drill Bits 8 1/2″ 216mm XHR 5164D – High-Efficiency Rock Breaking Series
XHR Series Features
- Suitable for improving ROP in soft formation
- Optimized shaped cutter layout to improve drilling efficiency and cuttings removal
- Optimized nozzles and junk slot design using CFD to accelerate cutting movement
- High strength steel body with thinner blades to prevent back tail contact with formation during high ROP
Product Features
- 0.8mm Relieved Gauge
- Drop In Cutters on Gauge Pads
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- 4D shaped cutter
- Radius Hex TSP on Gauge Pads
Important Notes
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters.
