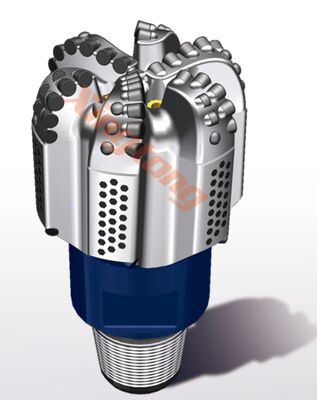

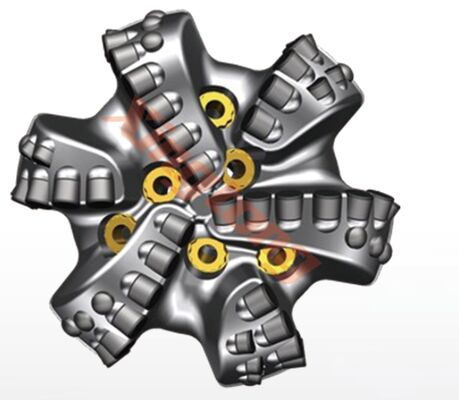

8 1/2 Inch 216mm PDC Drill Bit for Super Hard Formations with 49 Cutter Count
8 1/2 Inch 216mm PDC Drill Bit for Super Hard Formations with 49 Cutter Count
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
8 1/2″ 216mm XH 6164K
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
8 1/2 Inch 216mm PDC Hard Stone Diamond PDC Bit PDC Drill Bits 8 1/2″ 216mm XH 6164K (Rigid Body) for Oil Drilling in Super Hard Formations XH Series Features Suitable for increasing durability and footage Optimized profile makes load distribution more even to reduce the risk of ring out High ...
Product Custom Attributes
Highlight
8 1/2 inchPDC Drill Bit
,216mm PDC Drill Bit
,Hard stone diamond pdc bit
Cutter Type:
GI
IADC Code:
IADC Code
Body Type:
STEEL
Total Cutter Count:
49
Face:
37
Gauge:
6
Updrill:
6
Nozzle Type & Count:
L*6
Junk Slot Area (sq Mm):
8116
Normalized Face Volume:
45.7%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
102mm
Make-Up Length:
469mm
Approximate Shipping Weight:
84kg
Product Description
Detailed Specifications & Features
8 1/2 Inch 216mm PDC Hard Stone Diamond PDC Bit
PDC Drill Bits 8 1/2″ 216mm XH 6164K (Rigid Body) for Oil Drilling in Super Hard Formations
XH Series Features
- Suitable for increasing durability and footage
- Optimized profile makes load distribution more even to reduce the risk of ring out
- High quality PDC were put on shoulder to improve wear and impact resistance
- Special backup cutter layout to improve bit durability while maintaining bit aggression
Product Features
- 0.8mm Relieved Gauge
- Drop In Cutters on Gauge Pads
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- 4D shaped cutter
- Radius Hex TSP on Gauge Pads
Note:
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
