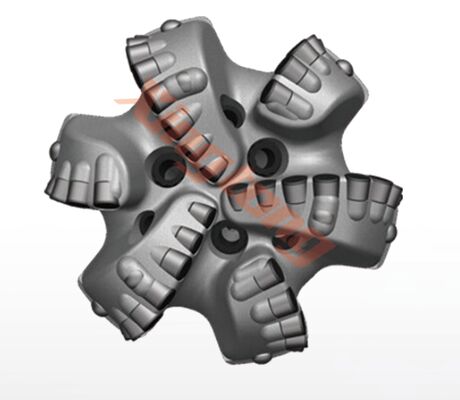

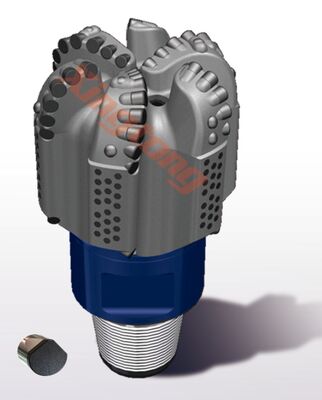

102mm Gauge Length PDC Drill Bit with 47 Cutter Count and Steel Body for Oilfield Drilling
102mm Gauge Length PDC Drill Bit with 47 Cutter Count and Steel Body for Oilfield Drilling
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
8 1/2″ 216mm XH 6164
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
102mm Oilfield Bits Polycrystalline Diamond Drill Bits Product Overview PDC Drill Bits 8 1/2″ 216mm XH 6164 for Oil Drilling in Super Hard Formations XH Series Features Suitable for increasing durability and footage Optimized profile makes load distribution more even to reduce the risk of ring out ...
Product Custom Attributes
Highlight
102mm Gauge oilfield bits
,oilfield bits 47 Cutter
,polycrystalline diamond drill bits
Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
47
Face:
31
Gauge:
10
Updrill:
6
Nozzle Type & Count:
L*3
Junk Slot Area (sq Mm):
8477
Normalized Face Volume:
54.12%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
102mm
Make-Up Length:
475mm
Approximate Shipping Weight:
87kg
Product Description
Detailed Specifications & Features
102mm Oilfield Bits Polycrystalline Diamond Drill Bits
Product Overview
PDC Drill Bits 8 1/2″ 216mm XH 6164 for Oil Drilling in Super Hard Formations
XH Series Features
- Suitable for increasing durability and footage
- Optimized profile makes load distribution more even to reduce the risk of ring out
- High quality PDC on shoulder to improve wear and impact resistance
- Special backup cutter layout improves durability while maintaining bit aggression
Technical Specifications
- 0.8mm Relieved Gauge
- Drop In Cutters on Gauge Pads
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- 4D shaped cutter
- Radius Hex TSP on Gauge Pads
Important Notes
- Recommended top-buckle torque is set according to joint inner and outer diameter with reference to API7G
- Technical performance fully implemented according to terms agreed between Xingtong and customer
- Pictures are for reference only - contact Skycom engineers for detailed technical parameters
