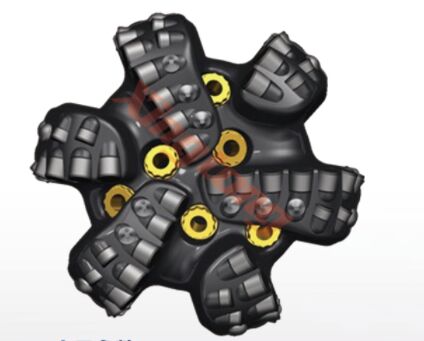

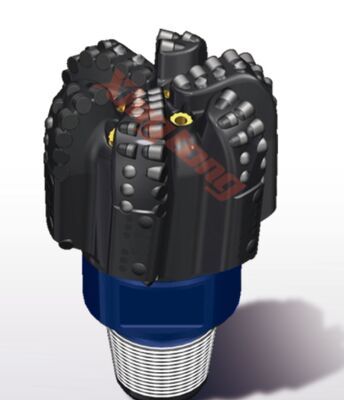

8 1/2″ 216mm PDC Drill Bit with 61 Cutter and Steel Body for Oil Drilling in Super Hard Formations

8 1/2″ 216mm PDC Drill Bit with 61 Cutter and Steel Body for Oil Drilling in Super Hard Formations
Basic Properties
Place of Origin: CHINA
Brand Name: XINGTONG
Certification: API 、ISO 9001
Model Number: 8 1/2″ 216mm XH 5164BK
Trading Properties
Minimum Order Quantity: 1 Piece（MOQ）
Price: Negotiable
Payment Terms: L/C,D/P,T/T,
Supply Ability: Stable supply and support for bulk customization.
Tags:

rock drill bit

pdc core bit

pdc diamond bit
Product Summary
79kg PDC Drill Bit with PDC Cutters for 8 1/2″ 216mm Drilling PDC Drill Bits 8 1/2″ 216mm XH 5164BK (Rigid Body) for Oil Drilling in Super Hard Formations Weight: 79kg Diameter: 8 1/2″ (216mm) Series: XH 5164BK Body Type: Rigid Body XH Series Features Suitable for increasing durability and footage ...
Product Custom Attributes
Highlight

79kg PDC Drill Bit

,

PDC Drill Bit 21.6cm

,

steel pdc cutters for drilling

Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
61
Gauge:
12
Updrill:
6
Nozzle Type & Count:
L*6
Junk Slot Area (sq Mm):
8718
Normalized Face Volume:
46.14%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
76mm
Make-Up Length:
431mm
Approximate Shipping Weight:
79kg
Product Description
Detailed Specifications & Features
79kg PDC Drill Bit with PDC Cutters for 8 1/2″ 216mm Drilling
PDC Drill Bits 8 1/2″ 216mm XH 5164BK (Rigid Body) for Oil Drilling in Super Hard Formations
Weight: 79kg
Diameter: 8 1/2″ (216mm)
Series: XH 5164BK
Body Type: Rigid Body
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile for even load distribution to reduce ring out risk
  • High quality PDC cutters on shoulder for improved wear and impact resistance
  • Special backup cutter layout for enhanced durability while maintaining bit aggression
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
Important Notes
Recommended top-buckle torque is set according to joint inner and outer diameter with reference to API7G
Technical performance fully implemented according to terms agreed between Xingtong and customer
Images are for reference only - contact Skycom engineers for detailed technical parameters
