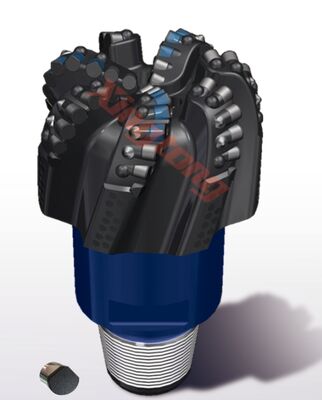

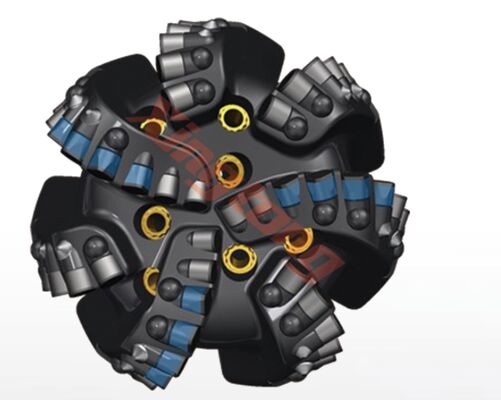

API PDC Drill Bit 16KN.m - 24KN.m with 76mm Gauge and GI Cutter for Rock Core Drilling

API PDC Drill Bit 16KN.m - 24KN.m with 76mm Gauge and GI Cutter for Rock Core Drilling
Basic Properties
Place of Origin: CHINA
Brand Name: XINGTONG
Certification: API 、ISO 9001
Model Number: 8 1/2″ 216mm XH 7164SBA
Trading Properties
Minimum Order Quantity: 1 Piece（MOQ）
Price: Negotiable
Payment Terms: L/C,D/P,T/T,
Supply Ability: Stable supply and support for bulk customization.
Tags:

rock drill bit

pdc core bit

pdc diamond bit
Product Summary
API PDC Drill Bit 16KN.m - 24KN.m Rock Core Bit 76mm Gauge XH Series Features Suitable for increasing durability and footage Optimized profile for even load distribution to reduce ring out risk High quality PDC on shoulder for improved wear and impact resistance Special backup cutter layout for ...
Product Custom Attributes
Highlight

API PDC Drill Bit

,

PDC Drill Bit 16KN.m

,

rock core bit 24KN.m

Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
49
Face:
36
Gauge:
13
Nozzle Type & Count:
L*7
Junk Slot Area (sq Mm):
9238
Normalized Face Volume:
48.41%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
76mm
Make-Up Length:
447mm
Approximate Shipping Weight:
78kg
Product Description
Detailed Specifications & Features
API PDC Drill Bit 16KN.m - 24KN.m Rock Core Bit 76mm Gauge
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile for even load distribution to reduce ring out risk
  • High quality PDC on shoulder for improved wear and impact resistance
  • Special backup cutter layout for enhanced durability while maintaining bit aggression
Product Specifications
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter
Important Notes

Recommended top-buckle torque is set according to joint inner and outer diameter with reference to API7G.

Technical performance of drill bits sold by Xingtong will be fully implemented according to terms agreed with customer.

Images are for reference only. Please contact Skycom engineers for detailed technical parameters.
