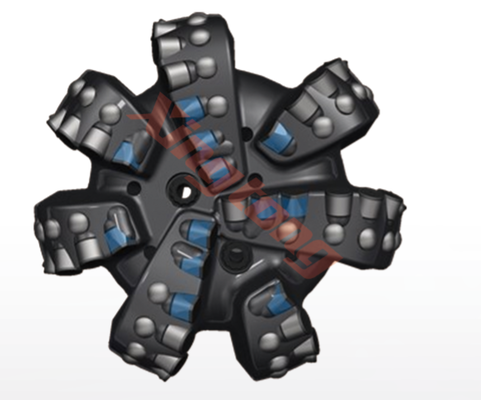

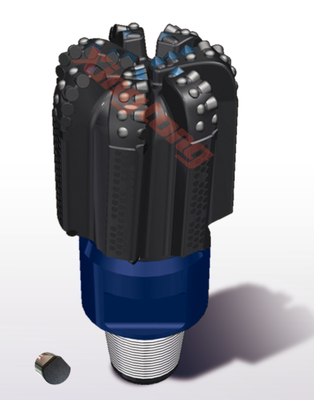

Steel GI Rock Cutting Drill Bits Cutter Drill Bits For Oil Drilling In Super Hard Formations
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 8 1/2″ 216mm XH 7164LAK |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GI | IADC Code | S323 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 55 |
| Face | 34 | Gauge | 14 |
| Updrill | 7 | Nozzle Type & Count | L*2 |
| Junk Slot Area (sq Mm) | 9412 | Normalized Face Volume | 51.69% |
| API Connection | 4-1/2 REG.pin | Make-Up TQ | 16-24KN.m |
| Gauge Length | 152mm | Make-Up Length | 534mm |
| Approximate Shipping Weight | 97kg | ||
| Highlight | steel rock cutting drill bits,GI rock cutting drill bits,GI Oil Drilling cutter drill bits |
||
Product Description
XH Series Features
- Suitable for increasing durability and footage.
- The optimized profile makes the load distribution more even to reduce the risk of ring out.
- High quality PDC were put on shoulder to improve wear and impact resistance.
- Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression.
Product Features
- 0.8mm Relieved Gauge
- Drop In Cutters on Gauge Pads
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structrue
- 4D shaped cutter
Note
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
