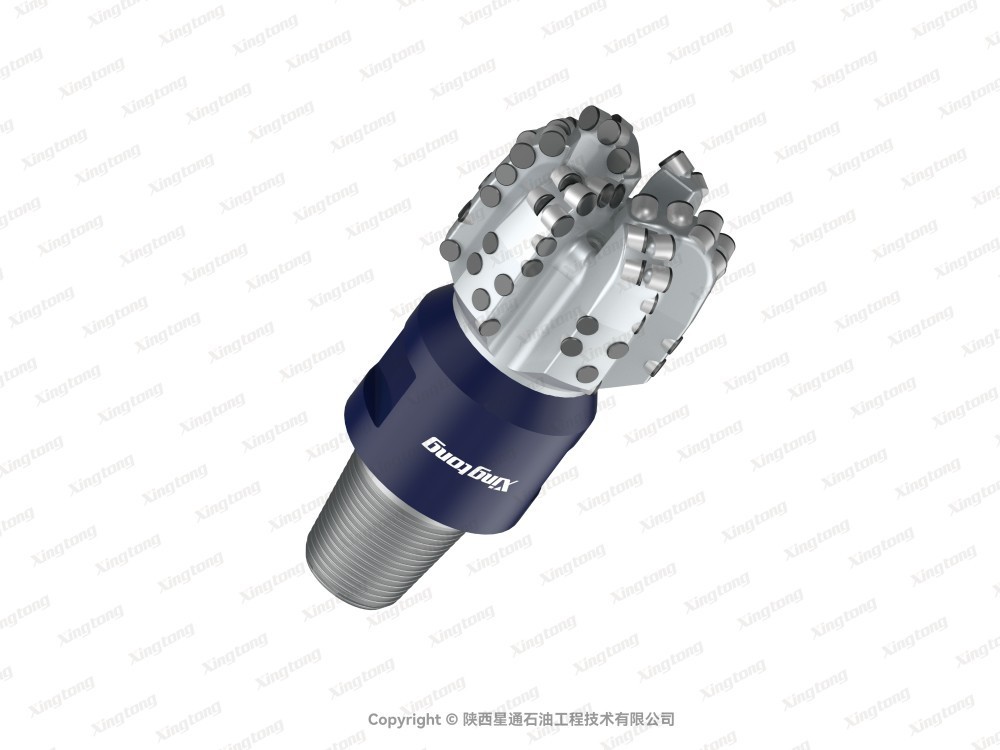

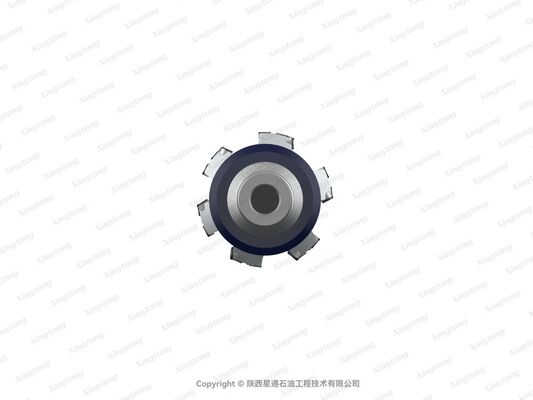

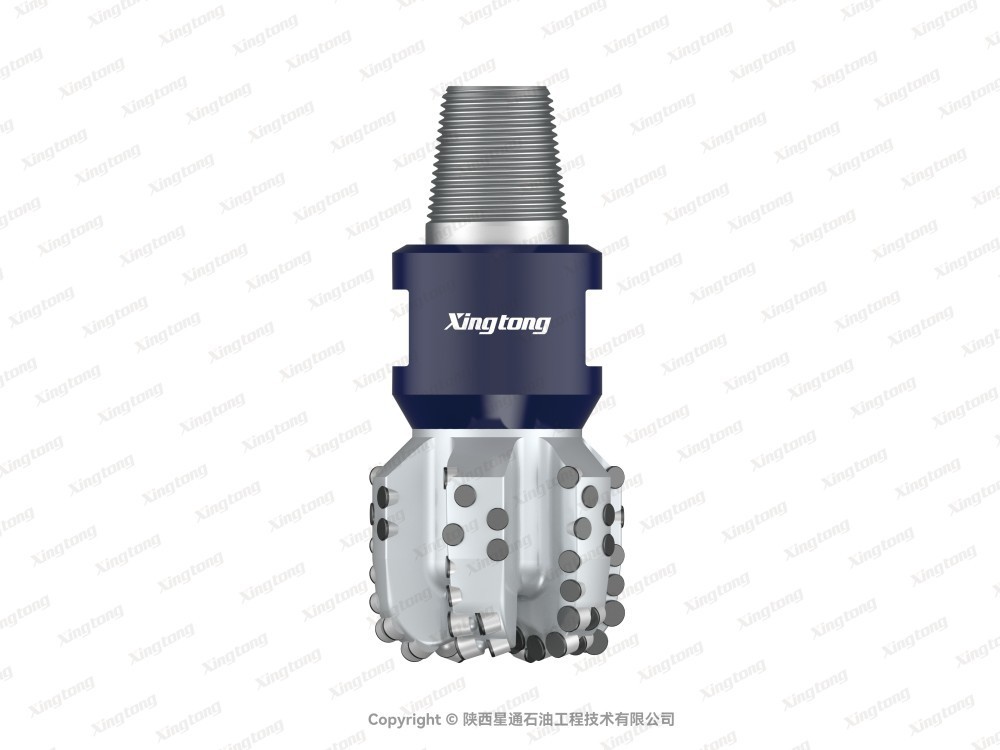

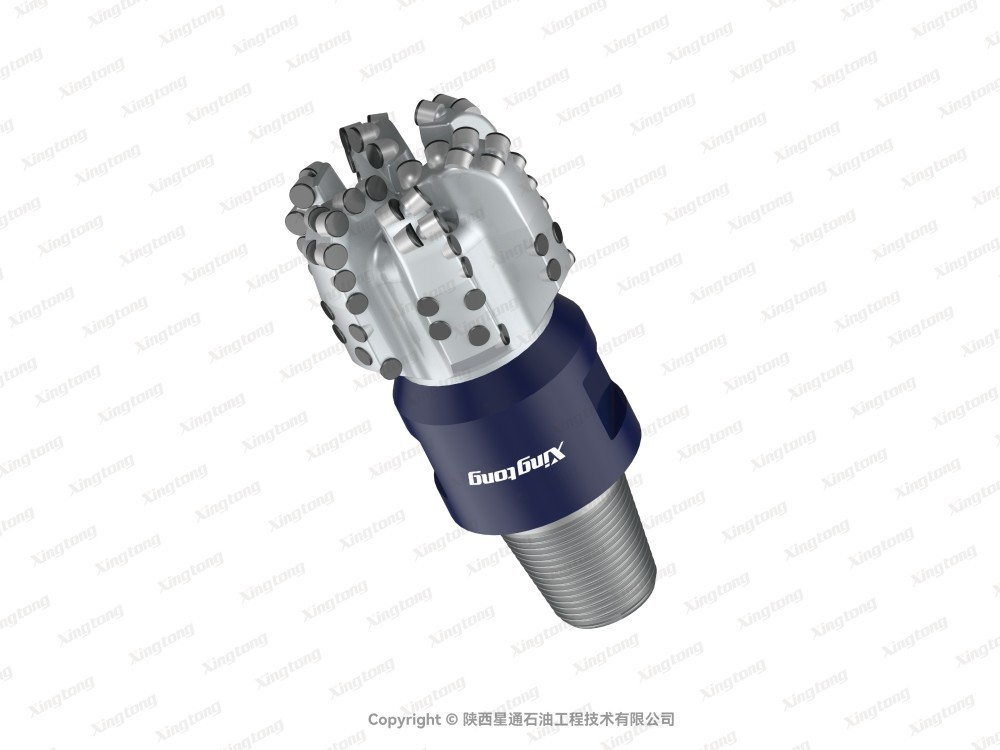

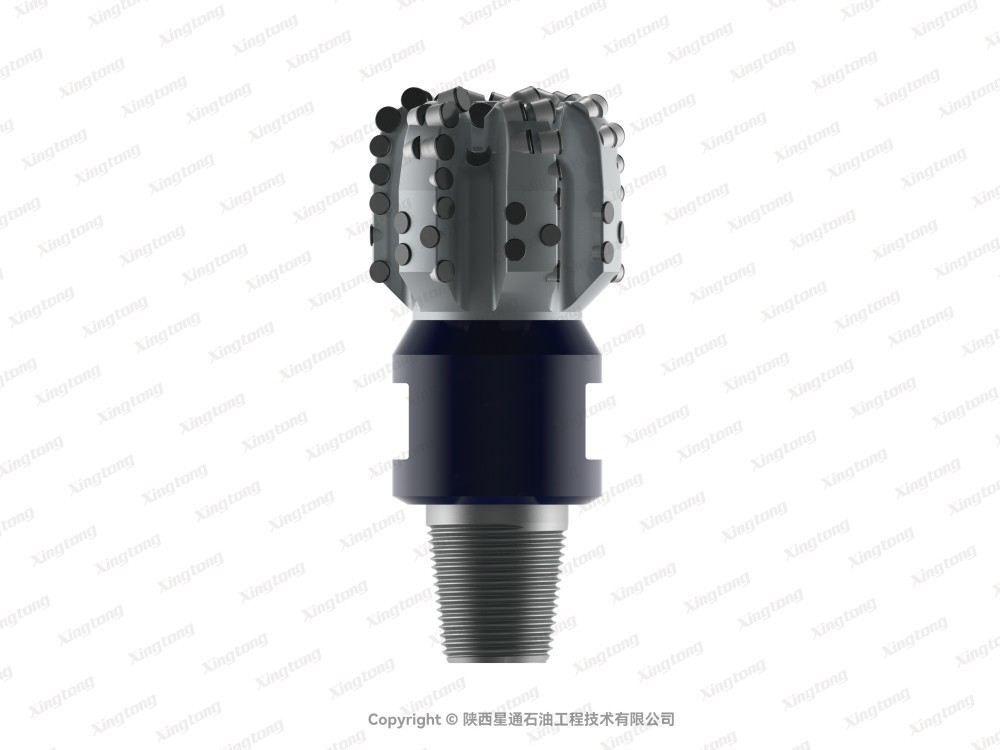

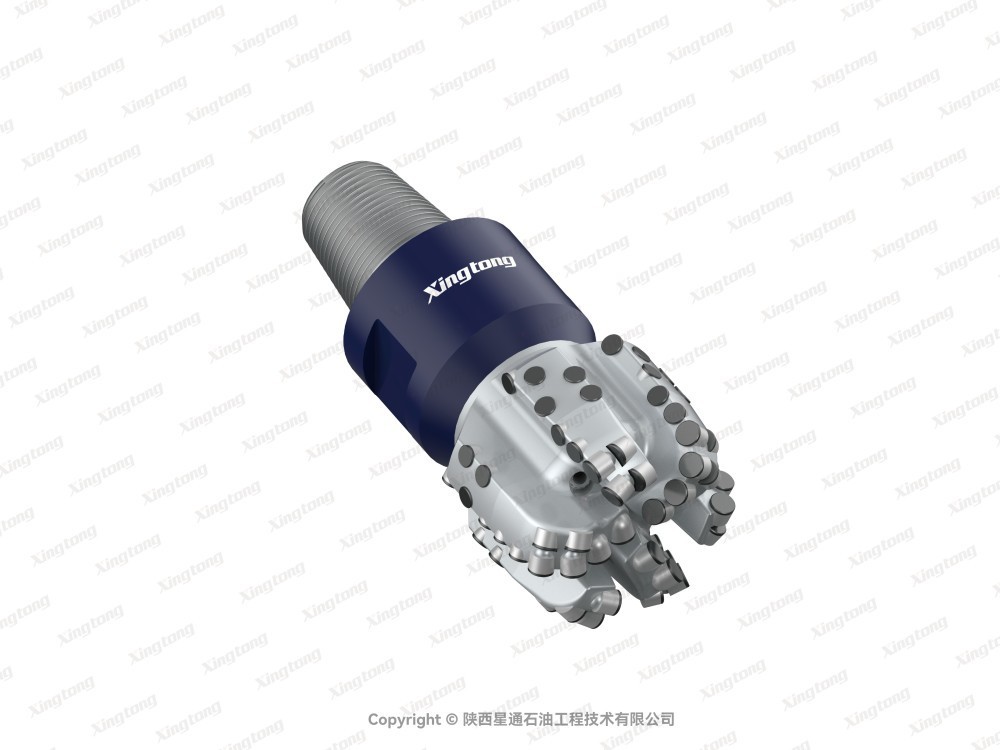

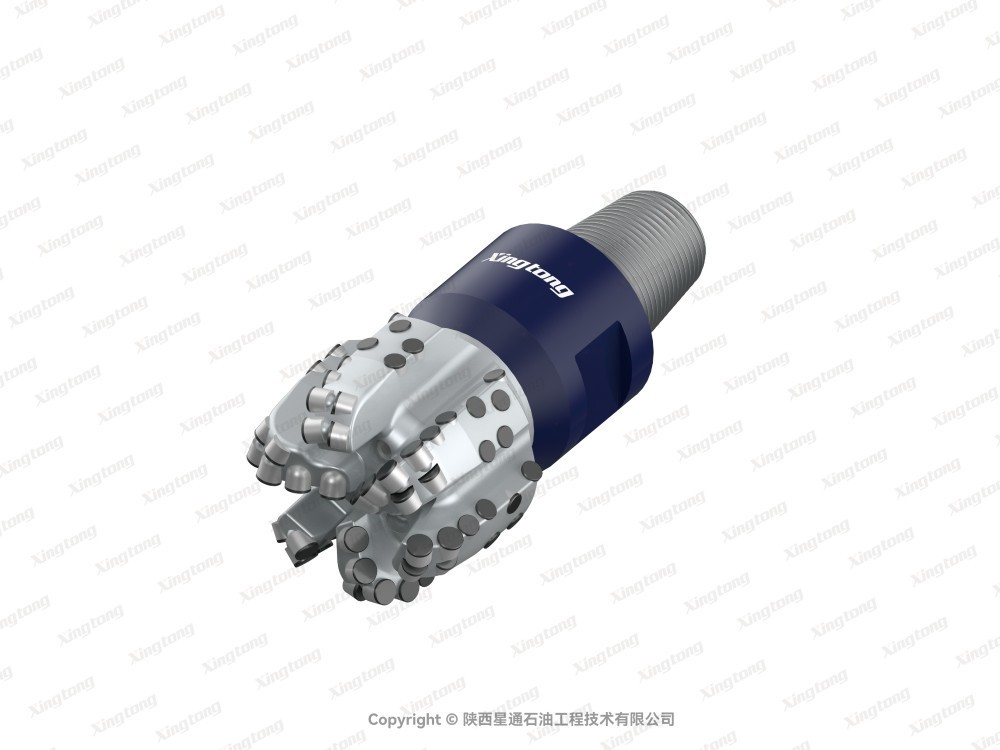

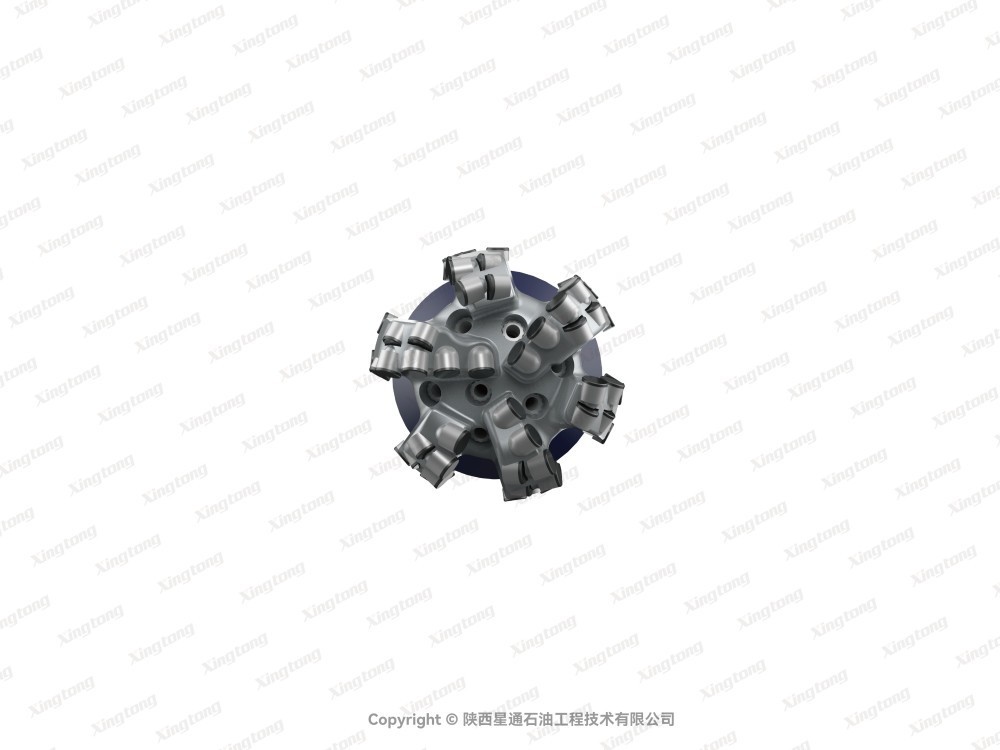

6 XH S 6166 AM(24026) PDC Drill Bit with GI Cutter Grade 6 Updrill and 31 Face for Ultra-Hard Formations
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API、ISO 9001 |
| Model Number | 6 XH S 6166 AM(24026) |
| Document | 6 XH S 6166 AM(24026).pdf |
| Minimum Order Quantity | 1 Picece(MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | D/P,L/C,T/T, |
| Supply Ability | Stable supply and support for bulk customization |
Product Details
| Cutter Grade | GI | IADC Code | S322 |
|---|---|---|---|
| Body Type | STEEL | Face | 31 |
| Gauge | 33 | Updrill | 6 |
| Nozzle Type & Count | M*7 | Chip Removal Groove Area Ratio | 52.4% |
| API Connection | 3-1/2REG | Make-Up TQ | 7.1-11.5KN.m |
| Gauge Length | 51mm | Make-Up Length | 251mm |
| Approximate Shipping Weight | 22kg | Recommended Weight On Bit (Maximum Acceptable) | 10-12T(78T) |
| Total Flow Area | 404mm^2 | ||
| Highlight | PDC drill bit with warranty,Xingtong PDC drill bit 6 XH,S 6166 AM PDC drill bit |
||
Product Description

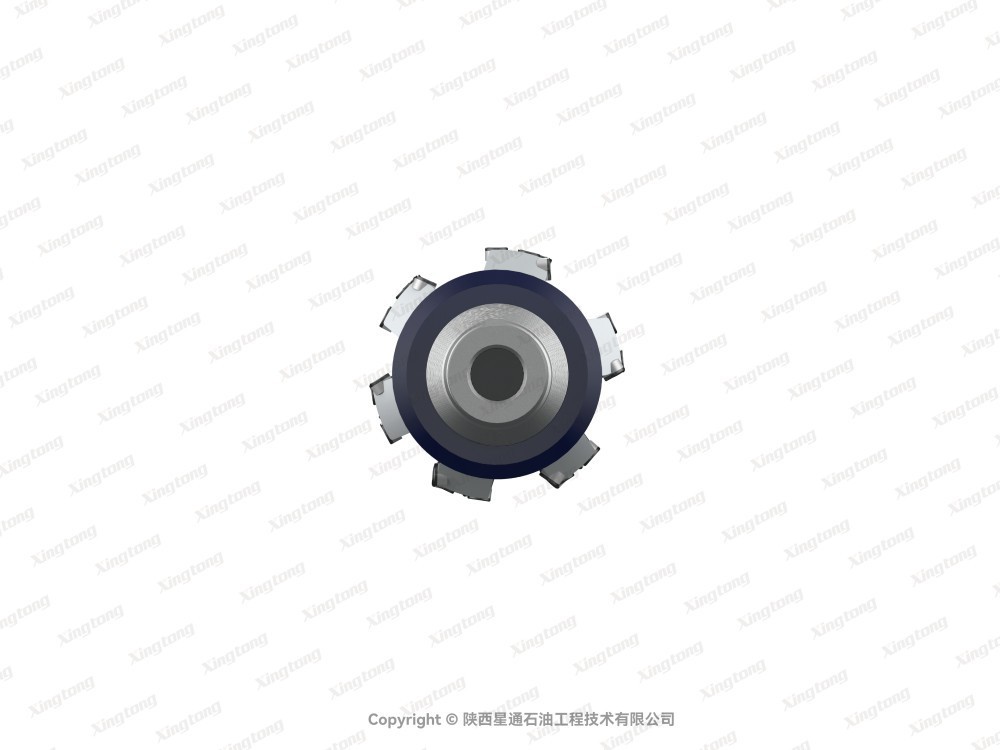

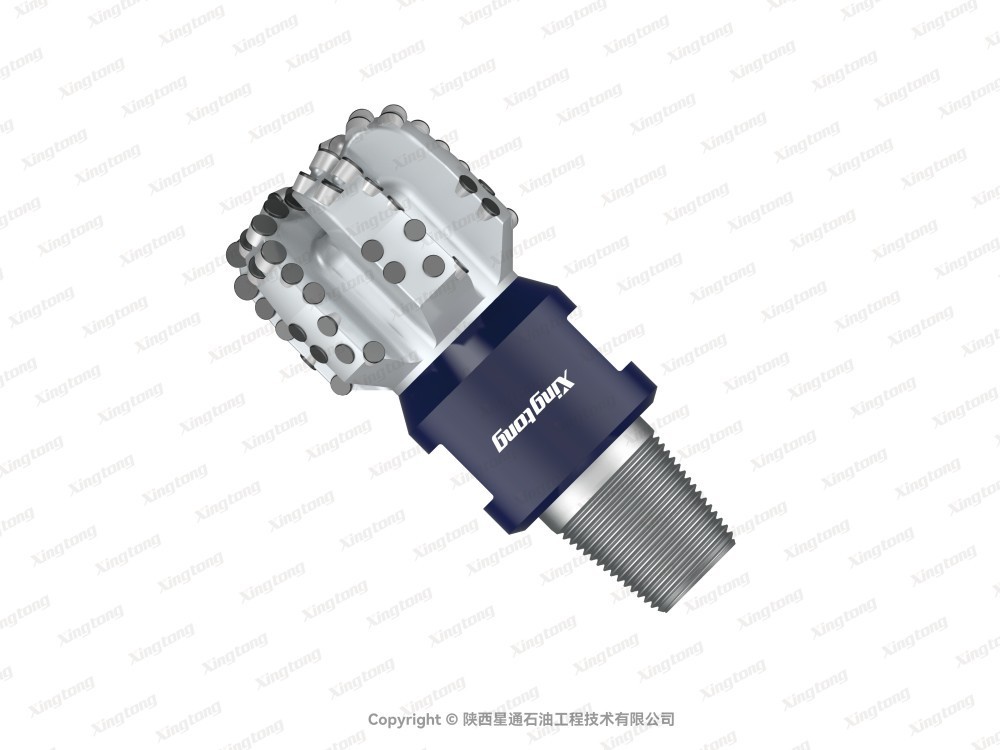

Xingtong Drill Bit 6 XH S 6166 AM(24026)
Product Positioning
The XH series represents Xingtong's high-durability drill bit lineup specifically engineered for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, this series incorporates enhanced wear-resistant materials and optimized structural design to achieve longer single-bit run times, reduce make-up and break-out operations, and improve overall drilling efficiency in extremely hard formations.
Technical Highlights
- Suitable for hard formations to enhance drill bit life and penetration rate
- Optimized crown geometry ensures uniform load distribution, reduces load on individual teeth, and lowers core gouging risk
- High-performance imported PDC cutters enhance shoulder wear resistance and impact resistance, extending overall service life
- Unique rear-flute design enhances drill-bit durability while maintaining cutting aggressiveness
Applicable Operating Conditions
Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
