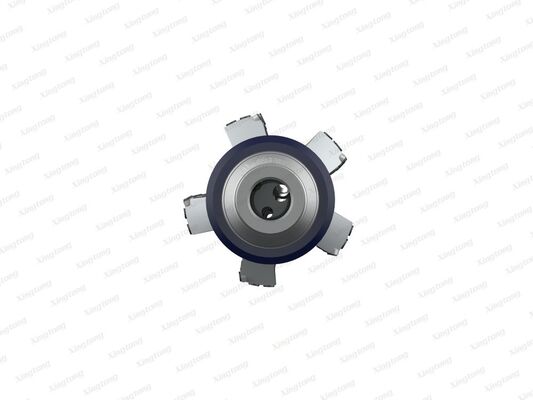

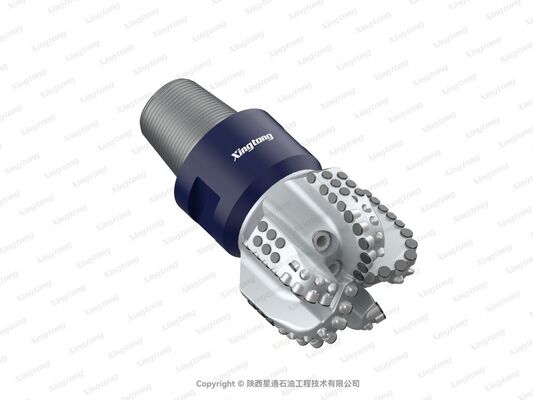

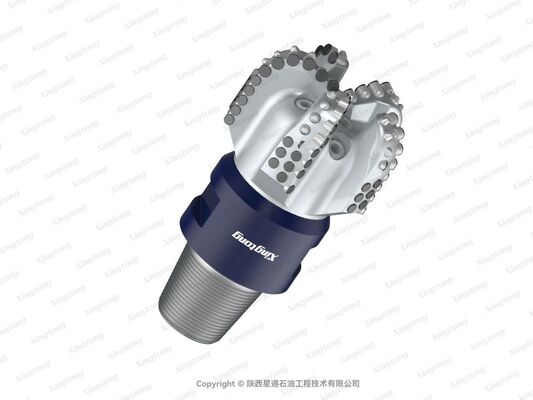

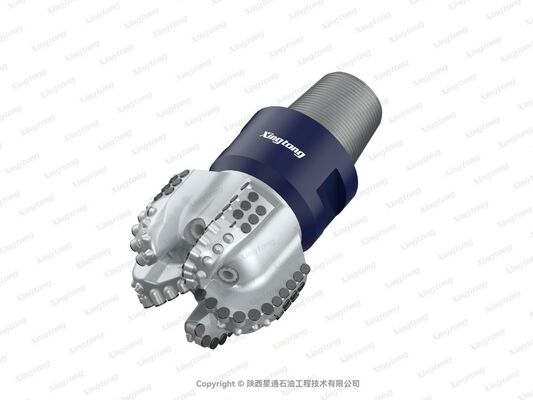

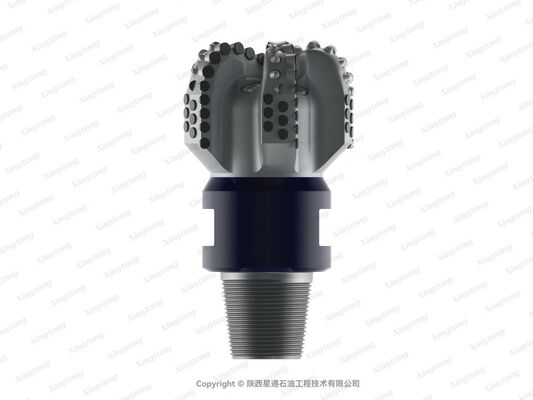

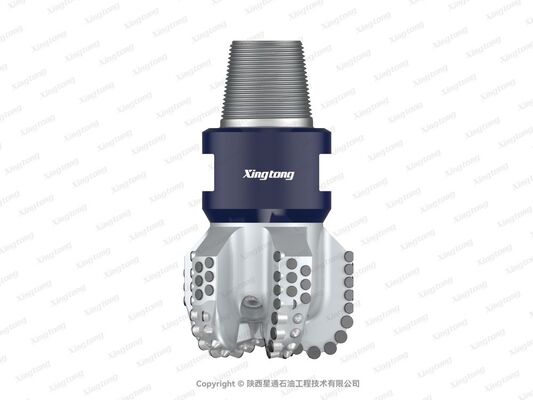

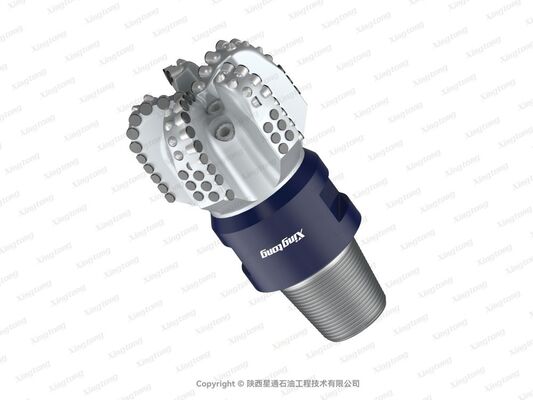

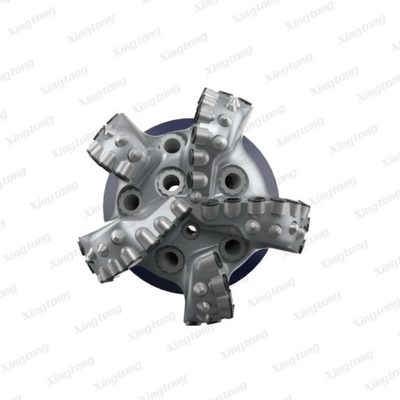

8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics

  • 8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics
  • 8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics
  • 8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics
  • 8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics
  • 8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics
  • 8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics
  • 8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics
  • 8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics
  • 8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics
  • 8 1/2 XHR S 5164 AK(24059) High-RPM PDC Drill Bit for Soft Formations in 8 1/2 Size with Optimized Hydraulics
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 8 1/2 XHR S 5164 AK(24059)
Document 8 1.2 XHR S 5164 AK(24059).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,,T/T
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S222
Body Type STEEL Face 27
Gauge 52 Carbide 17
Updrill 5 Nozzle Type& Count M*7
Chip Removal Groove Area Ratio 60.7% API Connection 4-1/2REG
Make-Up TQ 17.0-26.4kN.m Gauge Length 62mm
Make-Up Length 286mm Approximate Shipping Weight 39kg
Recommended Weight On Bit (Maximum Acceptable) 14-16T(133T) Total Flow Area 639mm^2
Highlight

PDC drill bit 8 1/2 size

,

Xingtong XHR S drill bit

,

PDC drill bit with warranty
Leave a Message
Product Description
Xingtong Drill Bit 8 1/2 XHR S 5164 AK(24059)
Product Positioning

The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, significantly accelerating drilling speed.

Technical Highlights
  • Optimized for high-speed drilling performance in soft formations
  • Hybrid matrix cutting teeth with irregular geometry enhance rock-breaking efficiency while increasing cuttings transport velocity
  • CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed operations
  • High-strength steel body enables thinner cutter blade design, preventing interference at blade rear during high mechanical drilling rates
Applicable Operating Conditions

Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed for operations targeting maximum achievable mechanical drilling rates.
